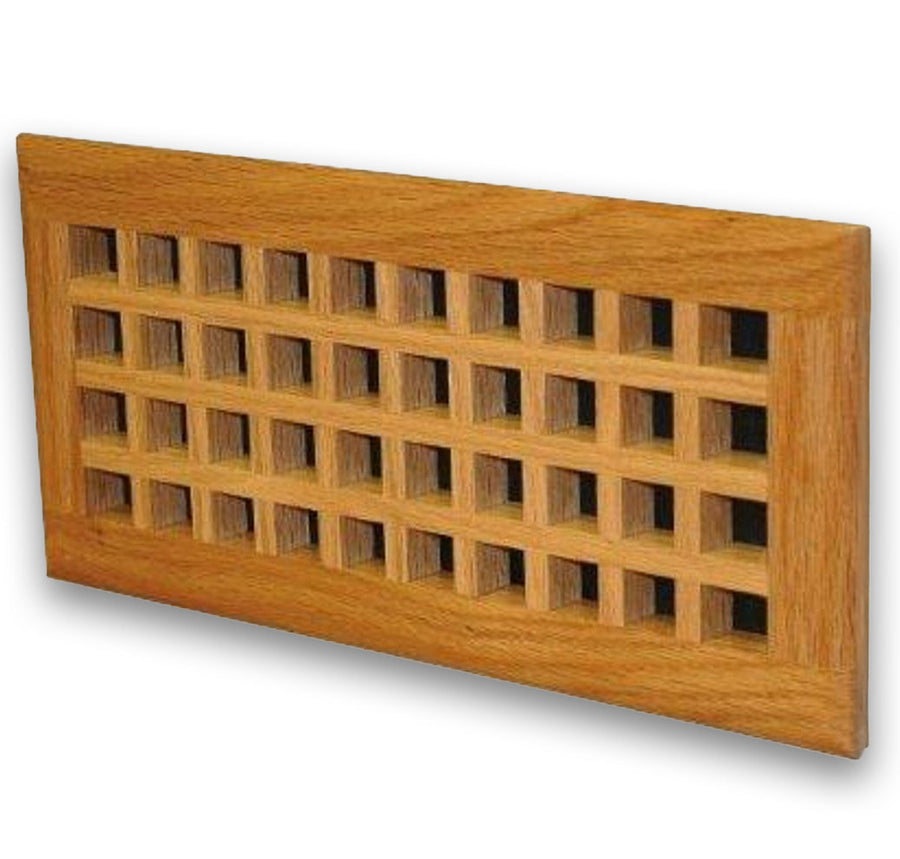

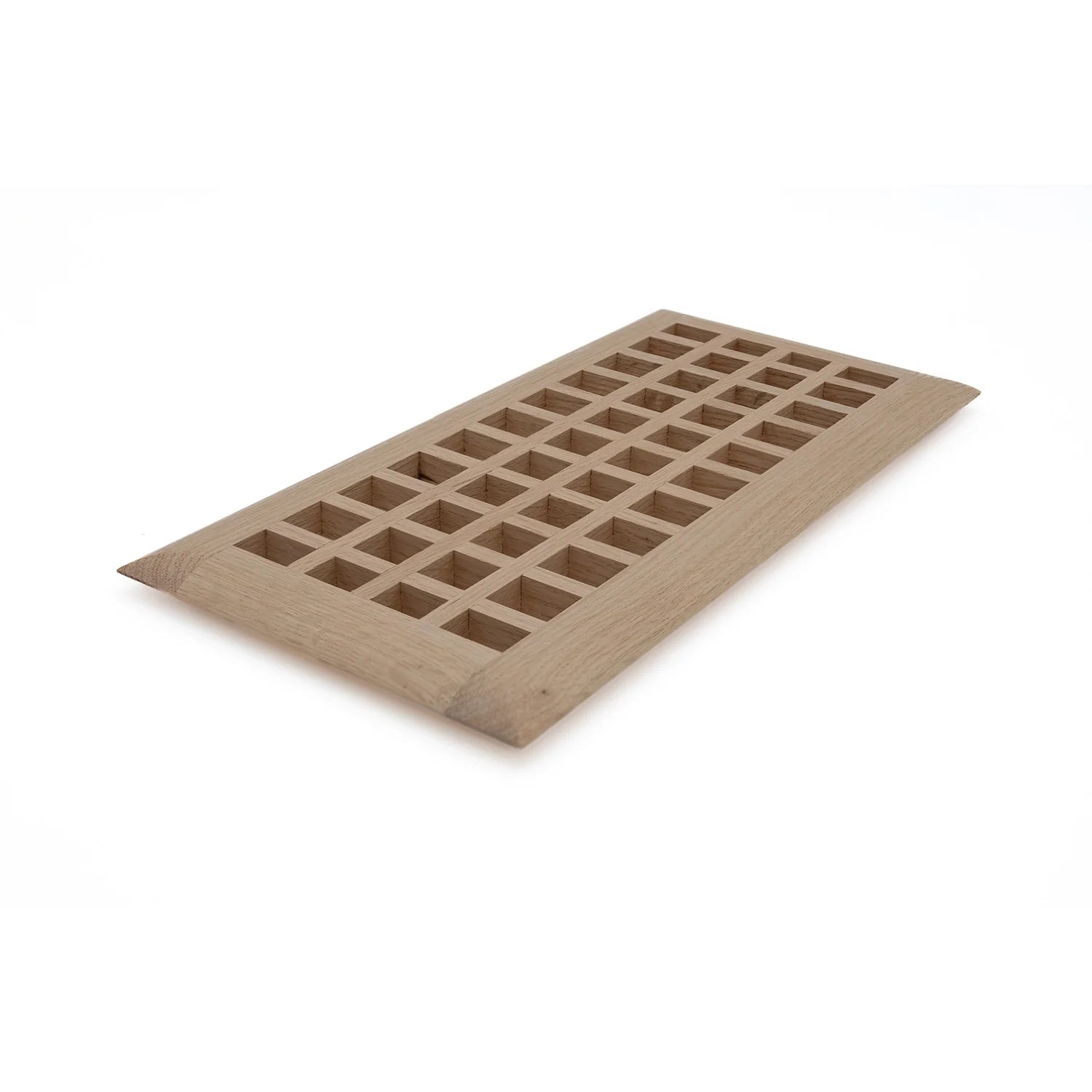

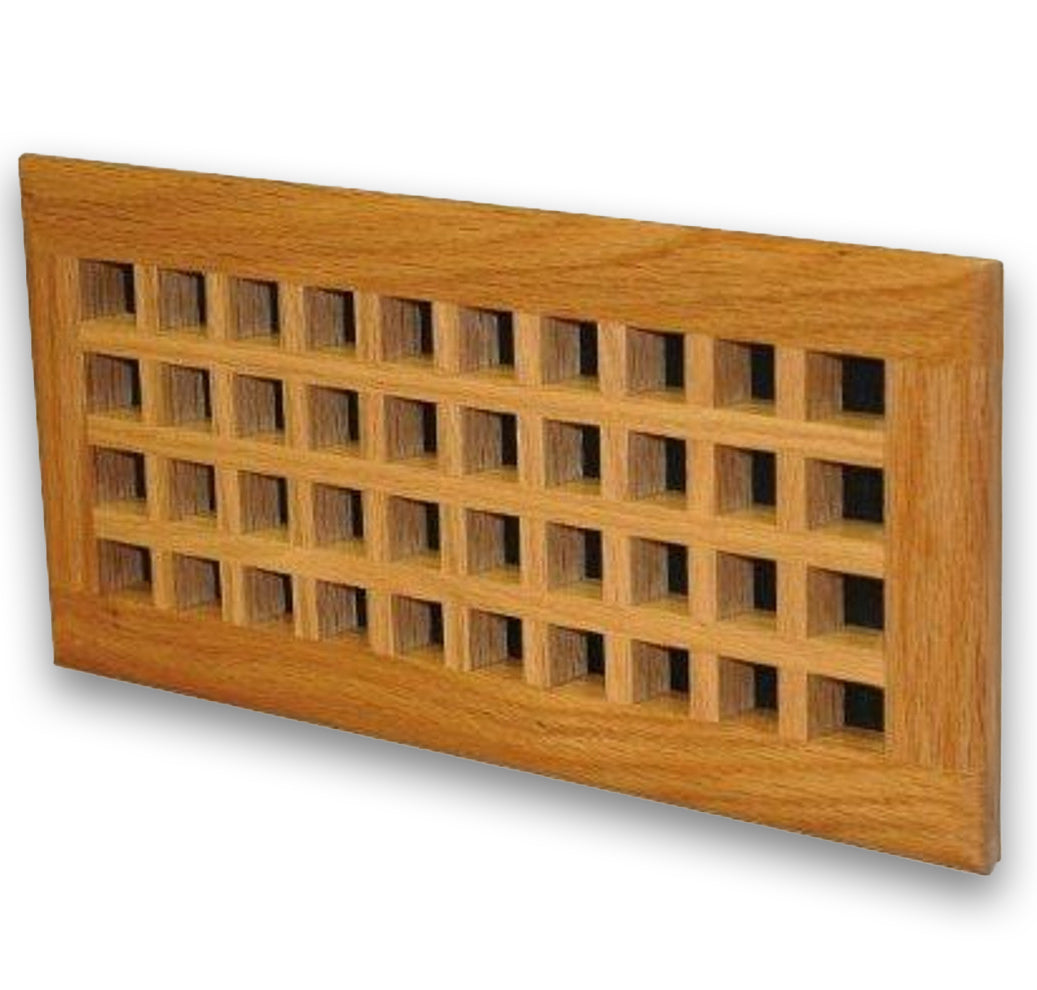

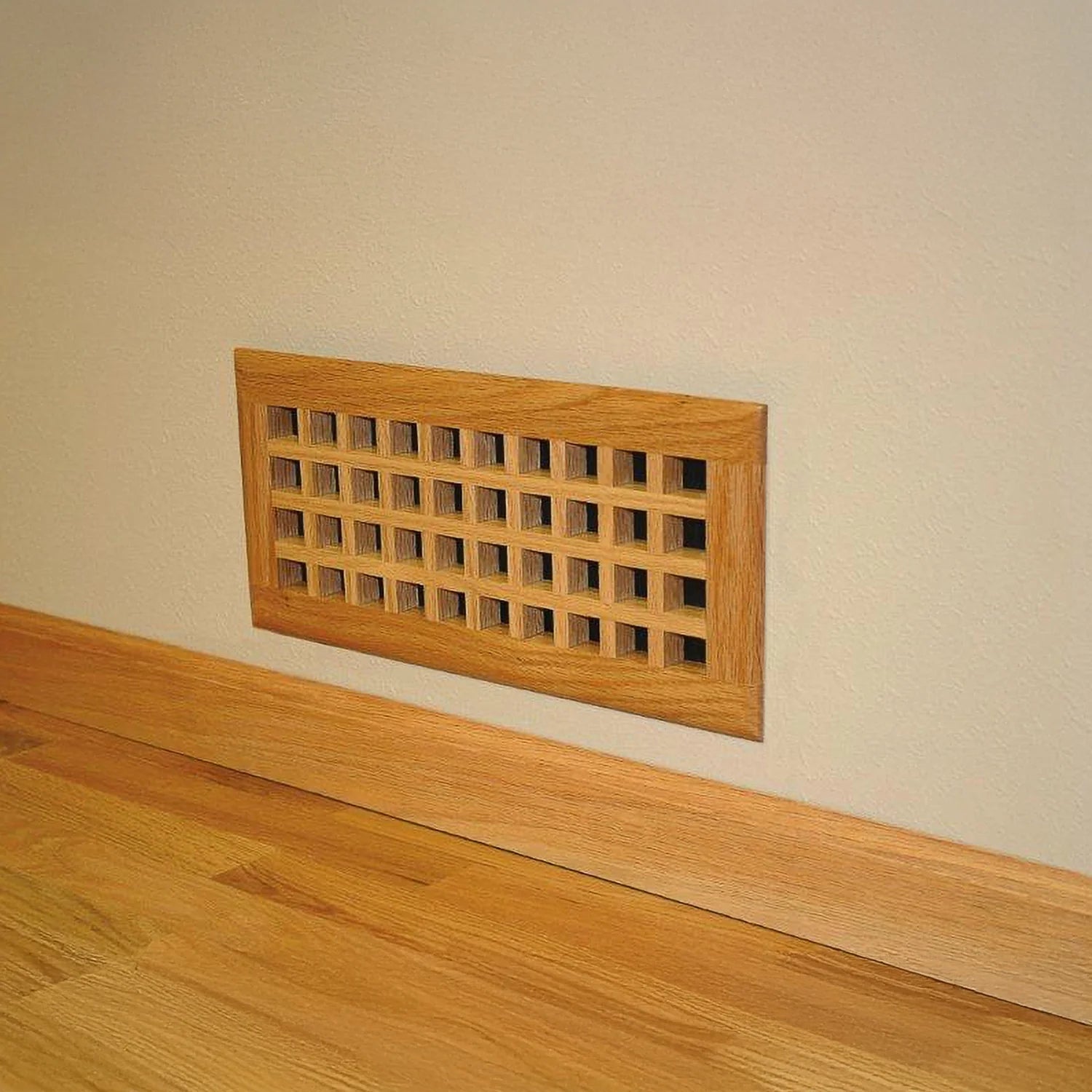

Wood Designs Floor Register - Grid Insert
Uncompromising in design and quality, Wood Designs products are the finest wood vents made in the U.S.A.

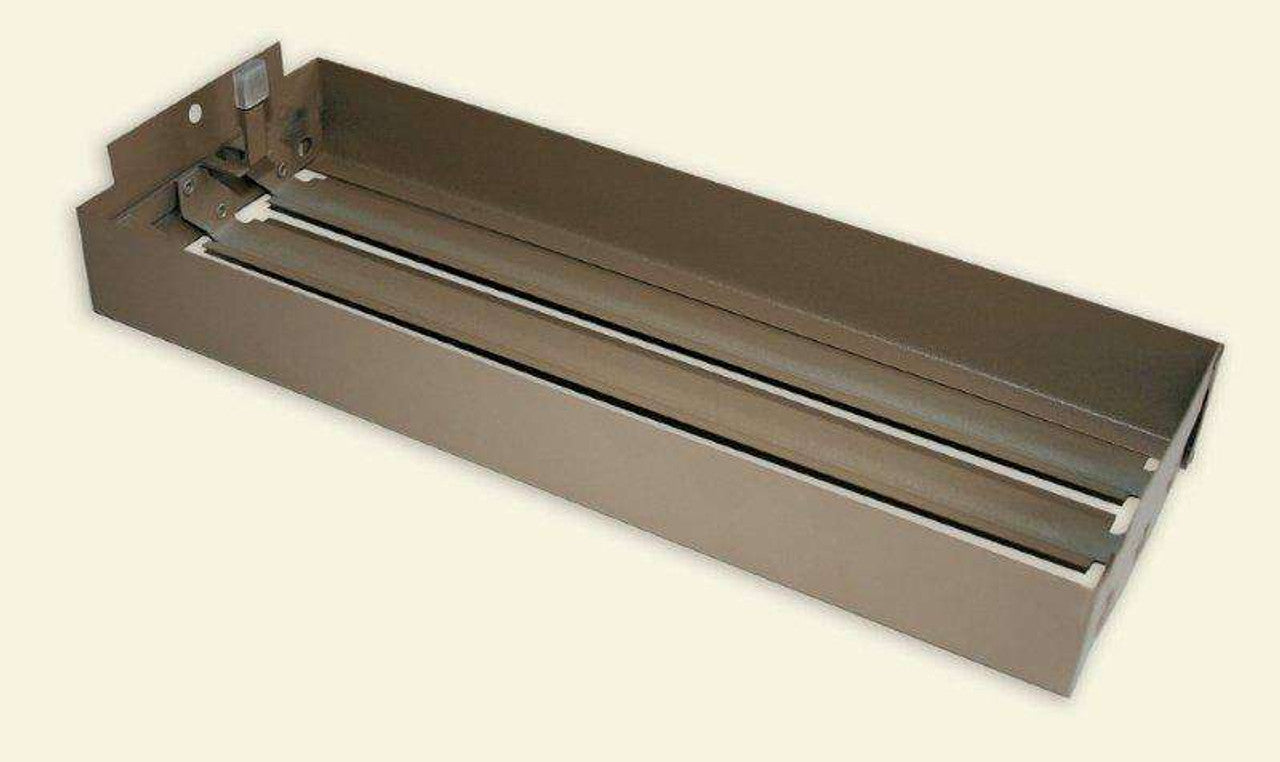

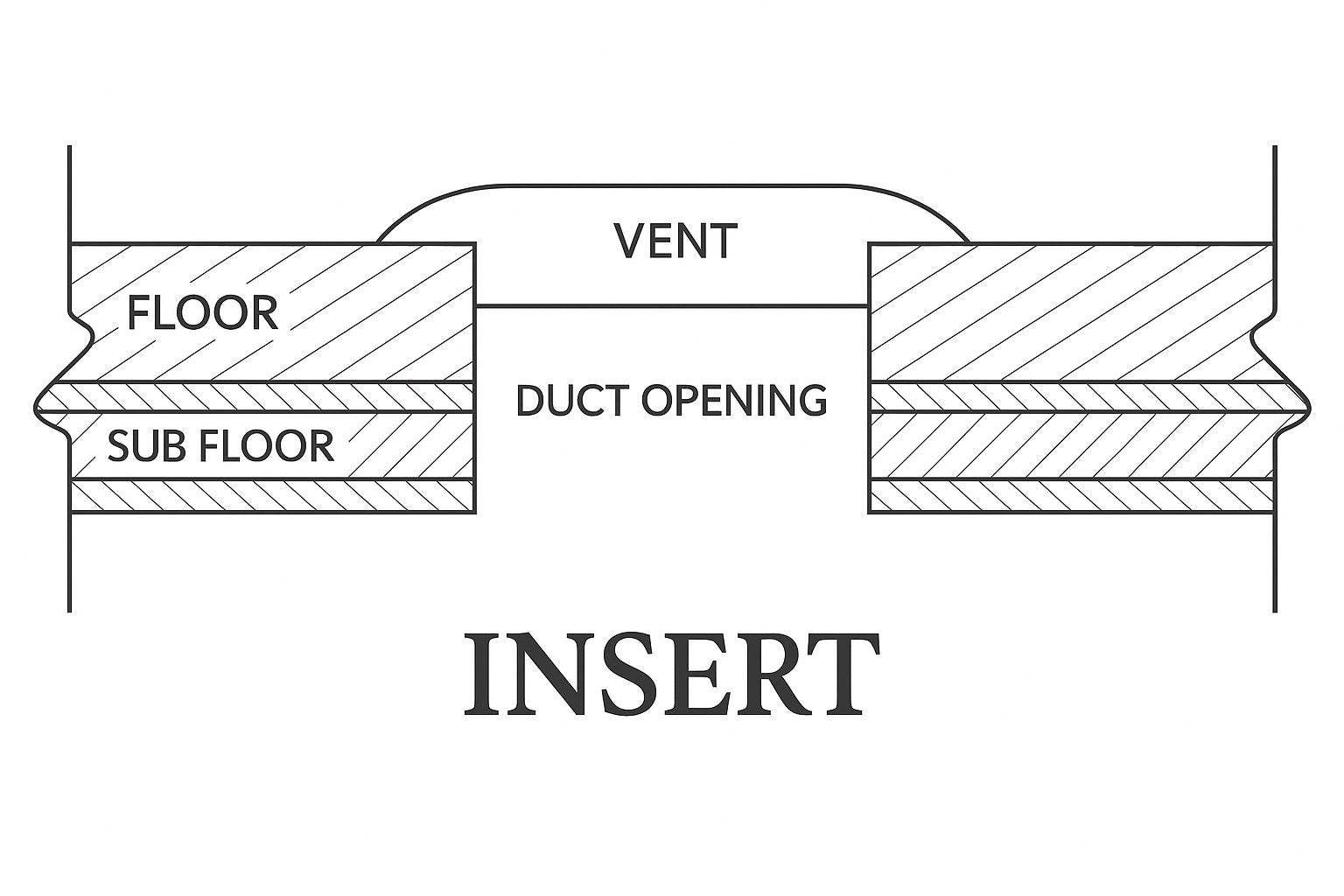

Insert vents replace the metal register. Cleanly designed with a solid, self-rimming lip to conceal inexact cuts in your surface material. Easy slide damper or adjustable box damper also available.
- All Grid items are made to order and non-returnable.
- Natural (clear coat) finish available (non-returnable)
- Custom sizes, finishes and wood species available upon request.
| ORDER SIZE | FREE AREA | OVERALL DIMENSIONS |
|---|---|---|
| (Duct Opening Inches) | (Square Inches) | |
| 2-1/2 x 10 | 9 | 4 x 11-1/2 |
| 2-1/2 x 12 | 11-1/4 | 4 x 13-1/2 |
| 2-1/2 x 14 | 13-1/2 | 4 x 15-1/2 |
| 4 x 8 | 11 | 5-1/2 x 9-1/2 |
| 4 x 10 | 15 | 5-1/2 x 11-1/2 |
| 4 x 12 | 18-1/2 | 5-1/2 x 13-1/2 |
| 4 x 14 | 22 | 5-1/2 x 15-1/2 |
| 6 x 10 | 24-3/4 | 7-1/2 x 11-1/2 |
| 6 x 12 | 31 | 7-1/2 x 13-1/2 |
| 6 x 14 | 37 | 7-1/2 x 15-1/2 |
