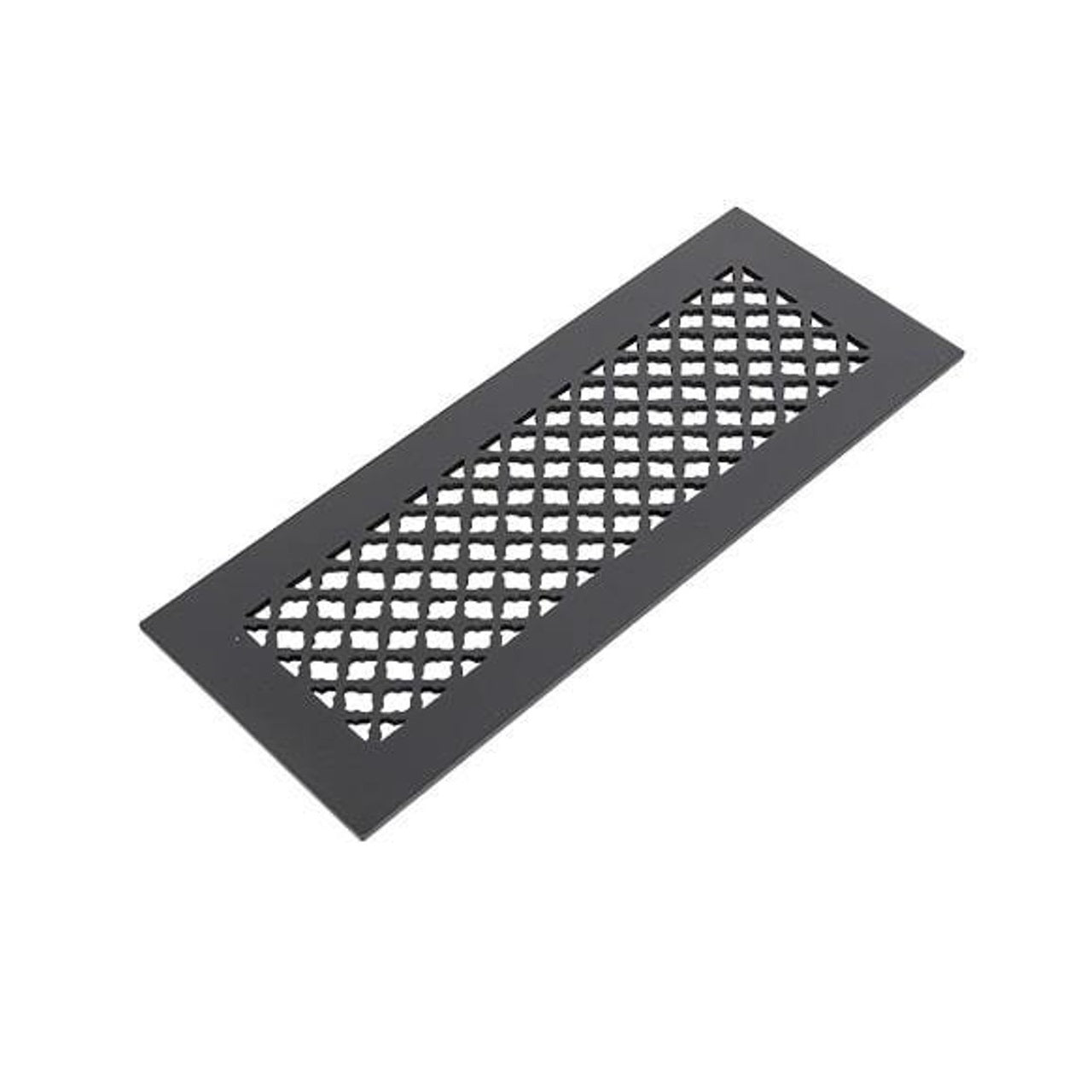

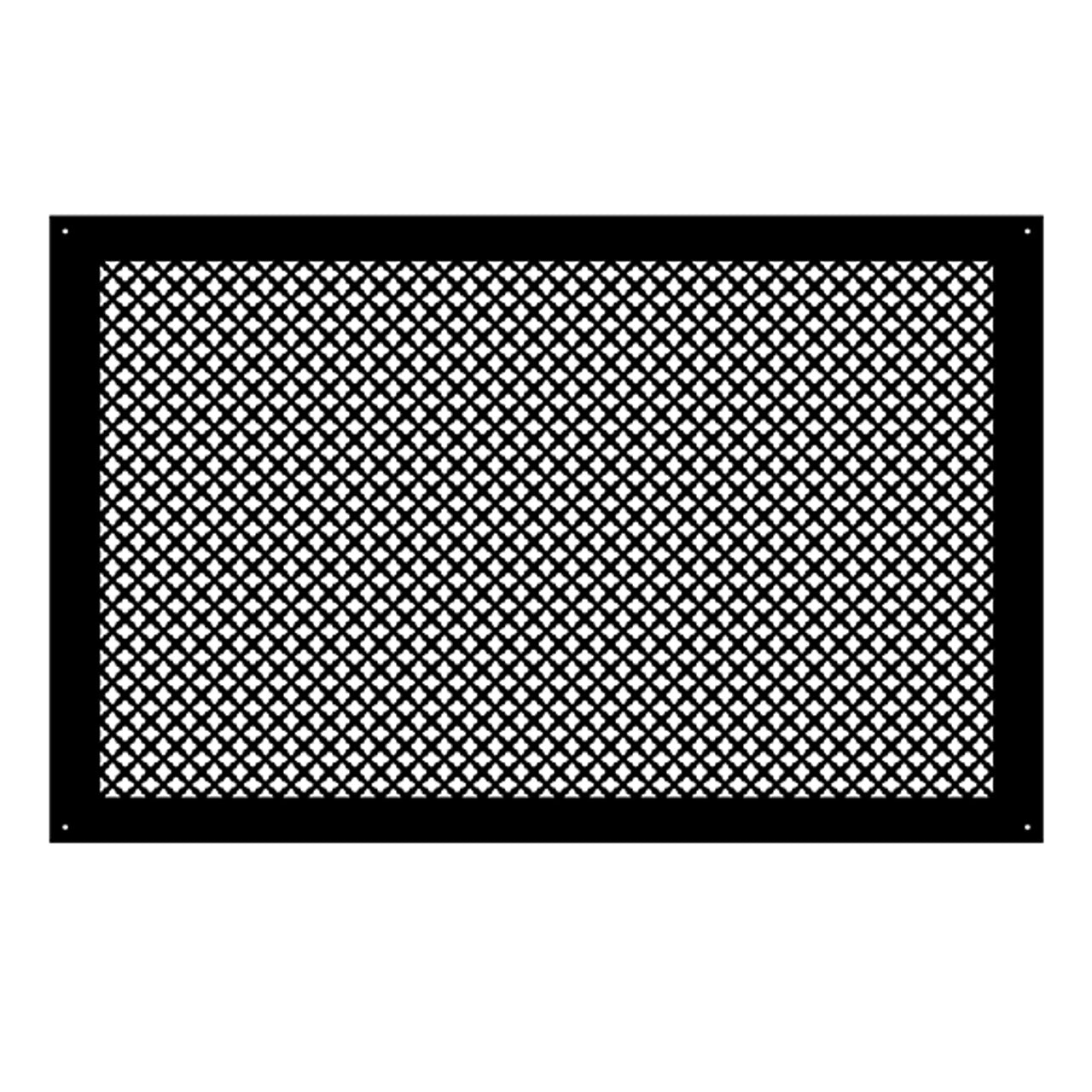

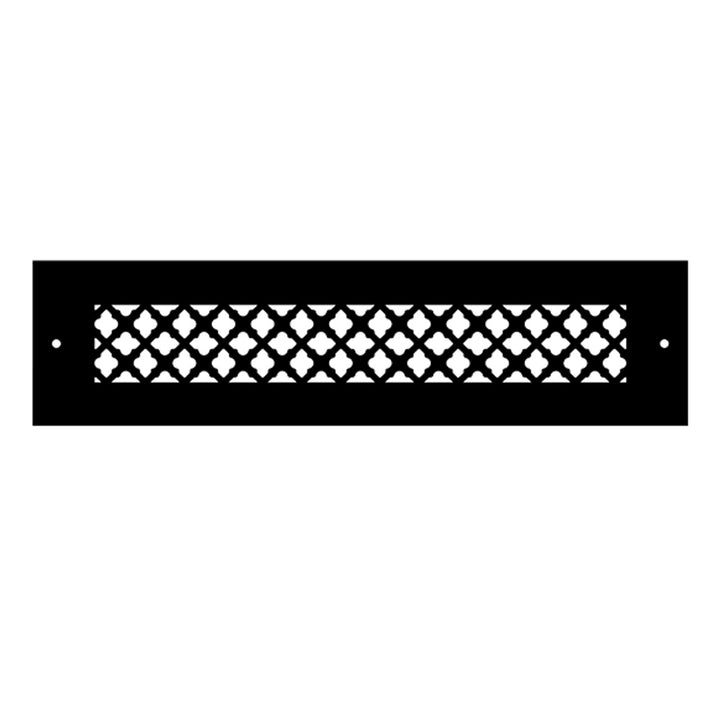

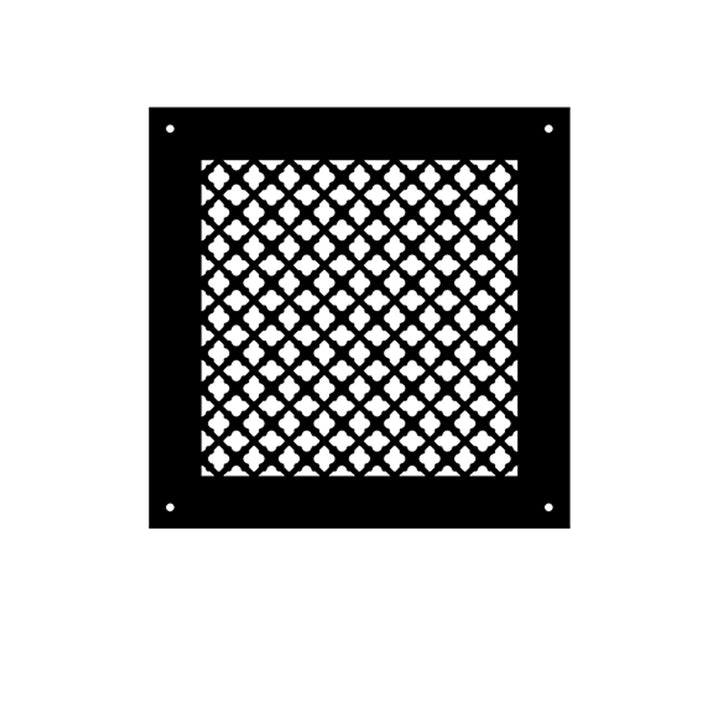

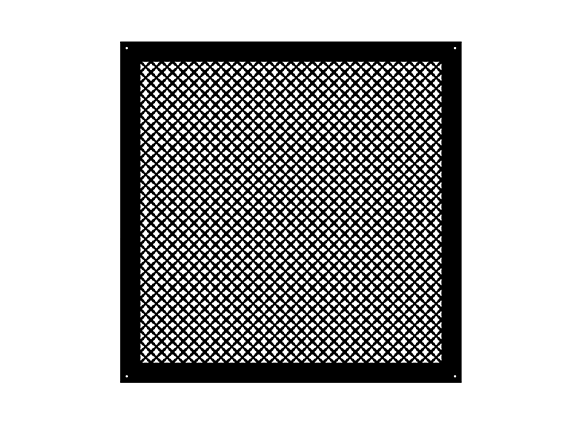

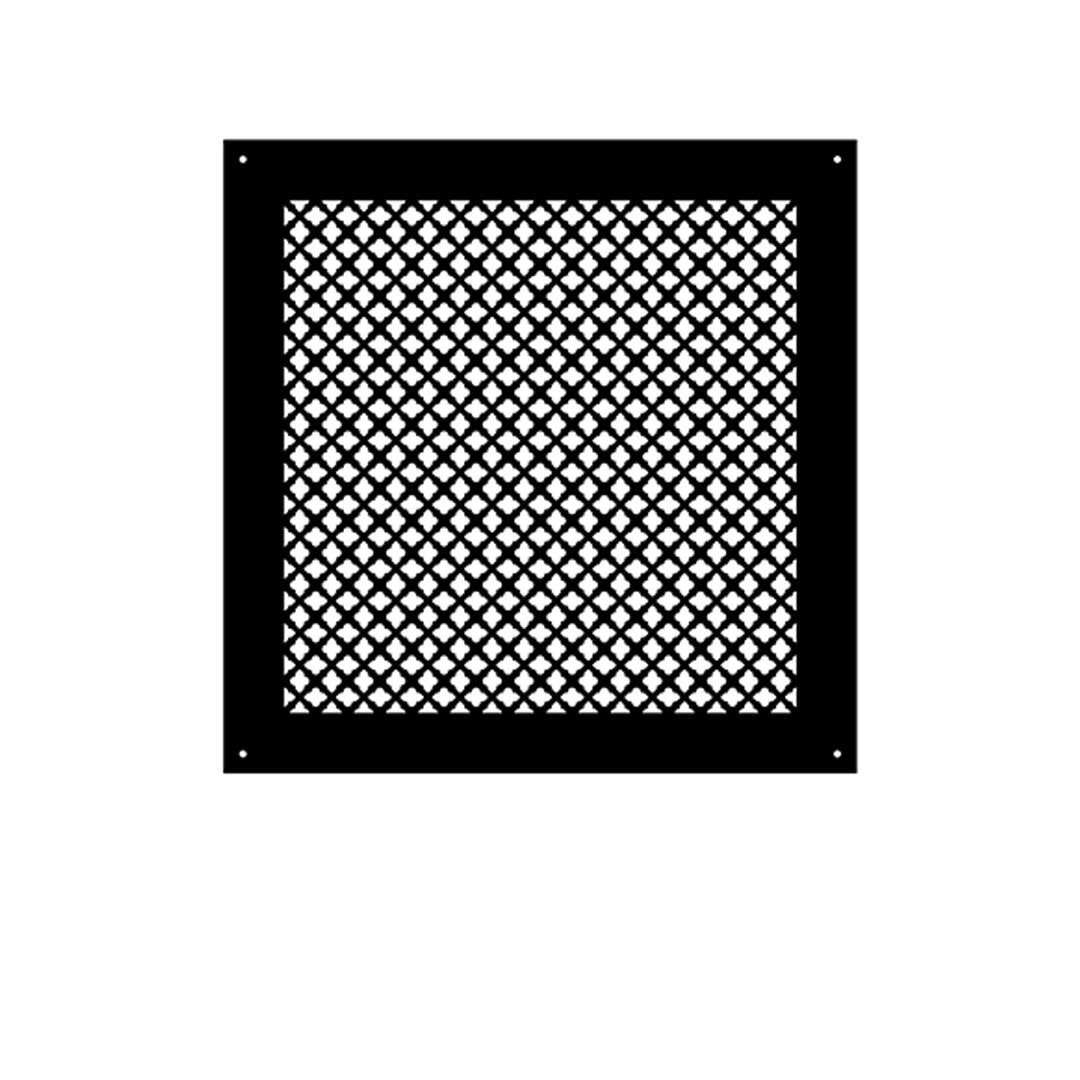

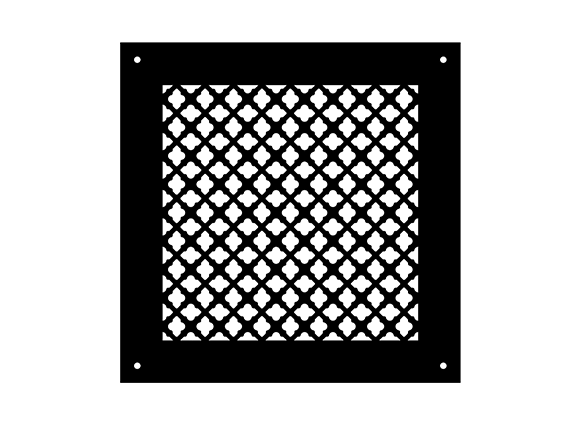

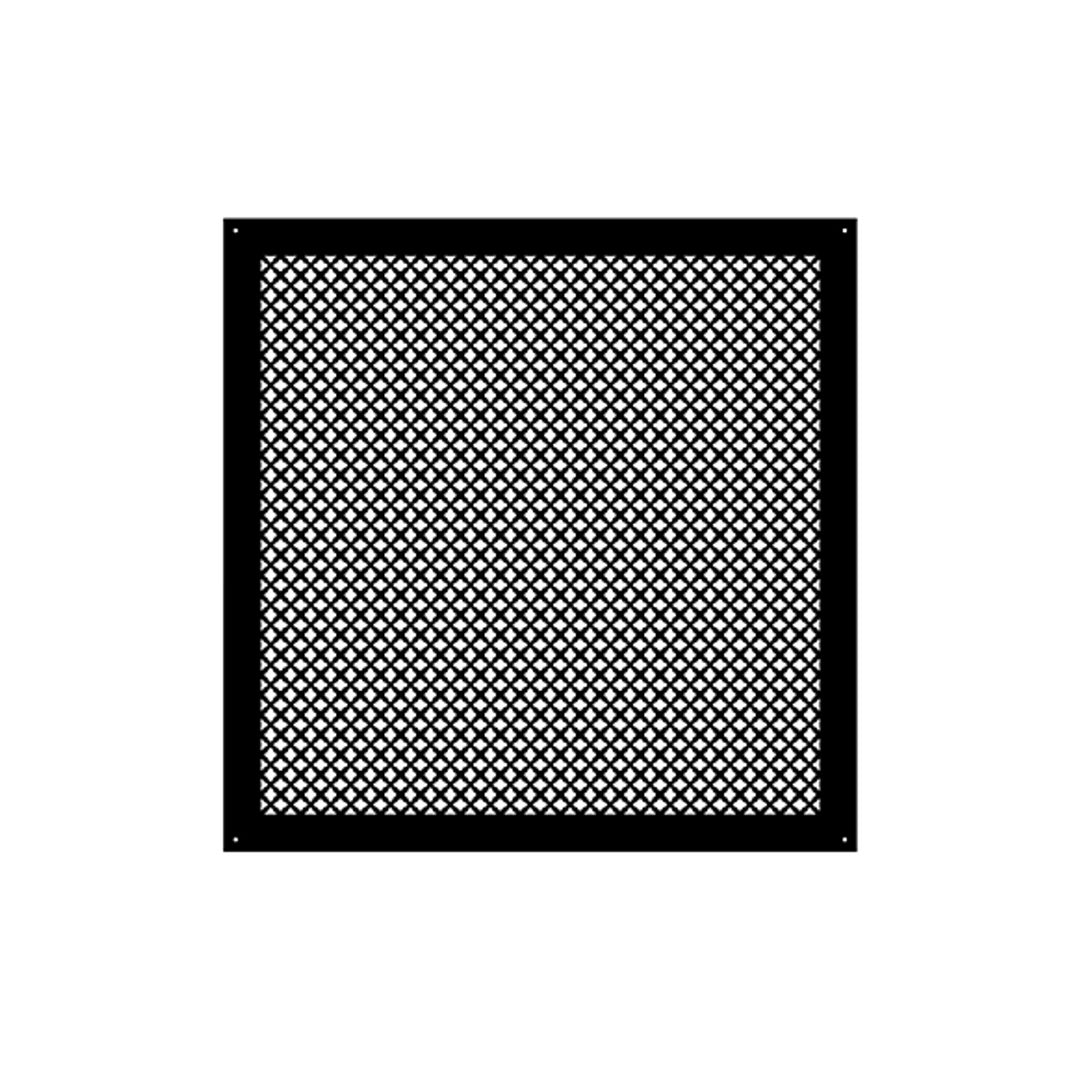

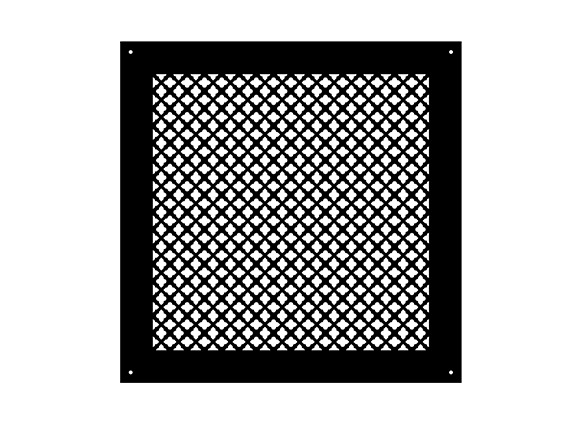

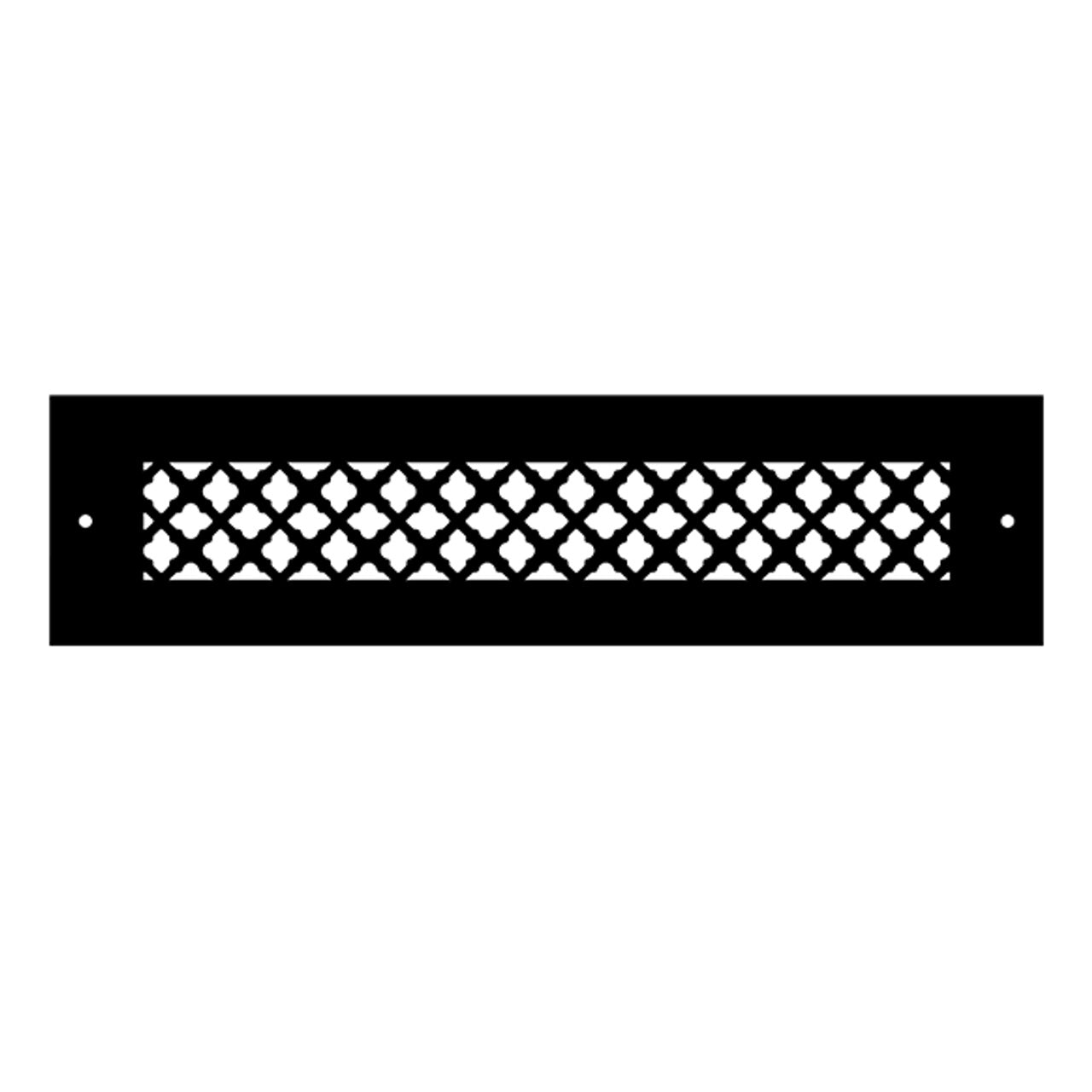

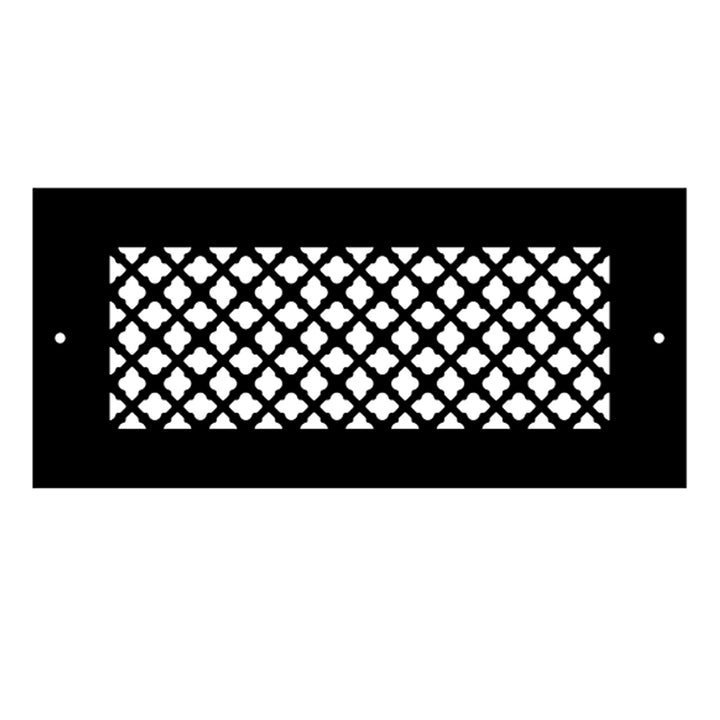

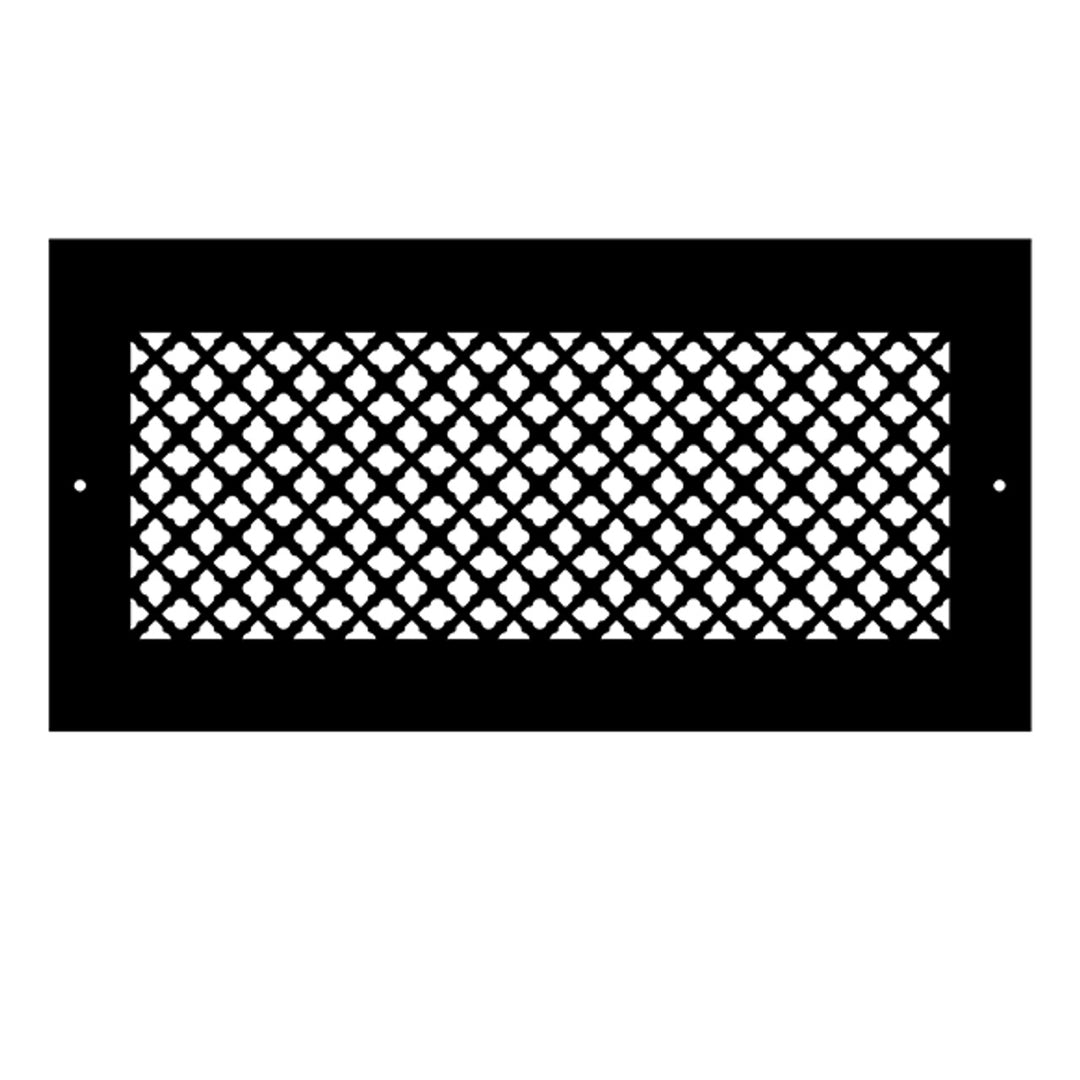

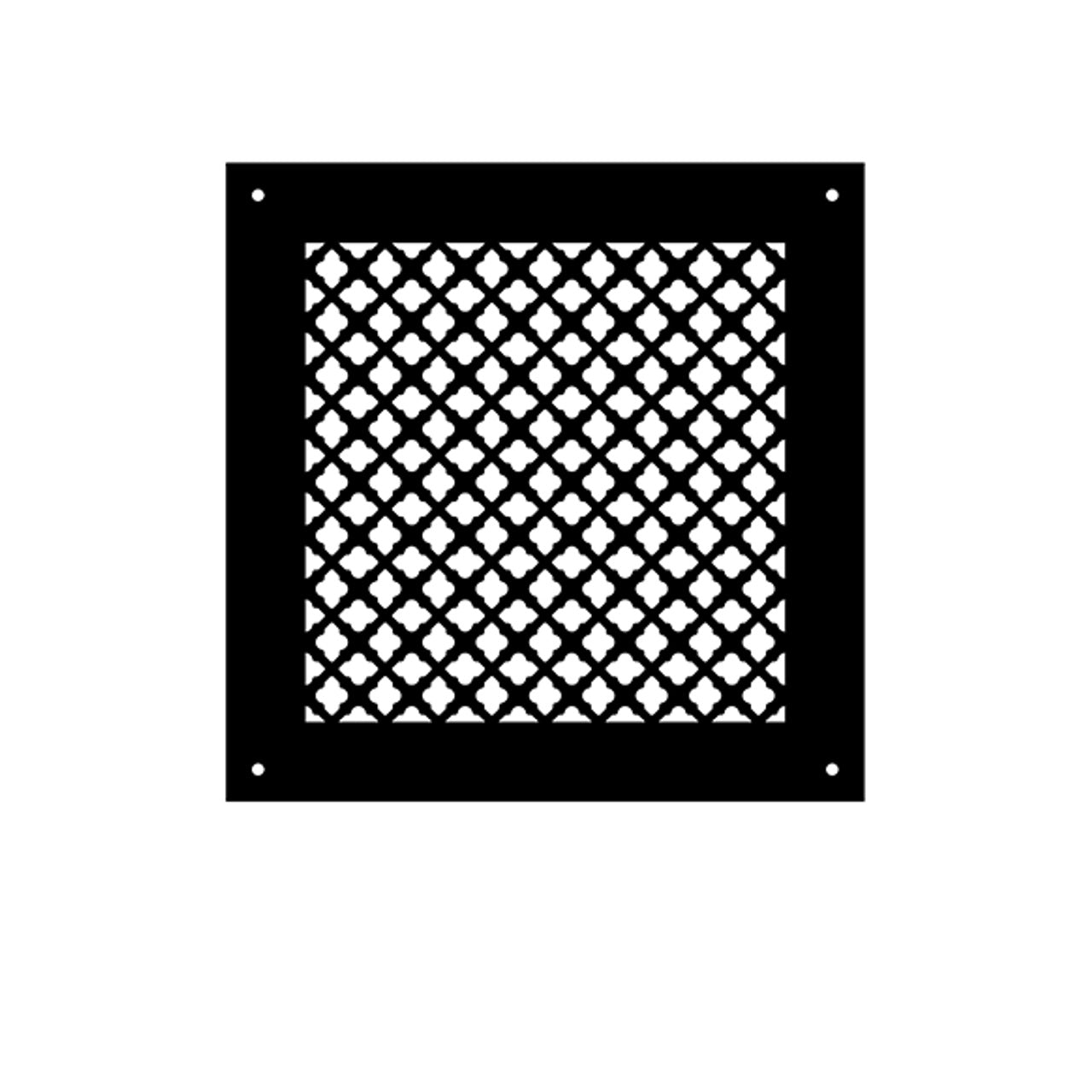

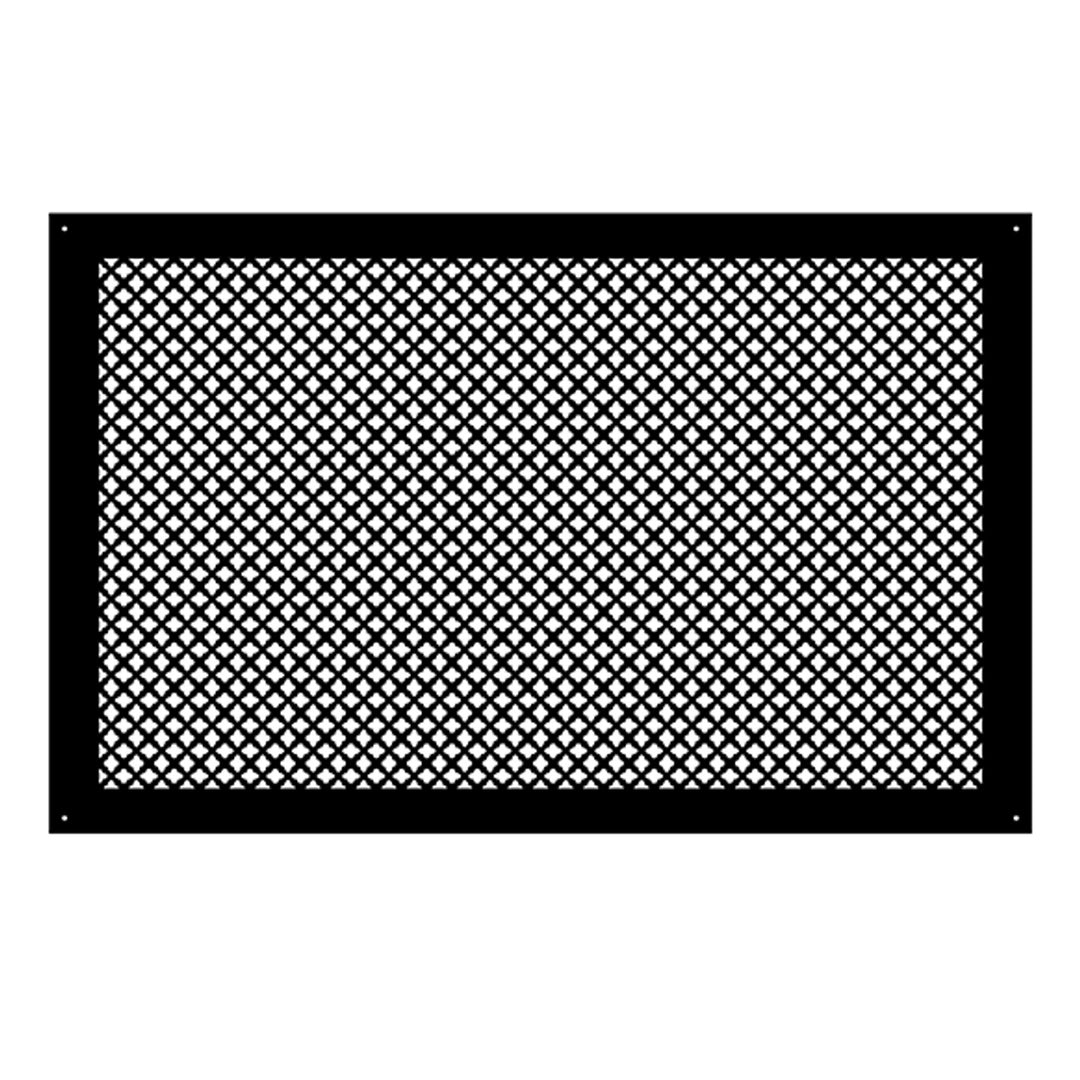

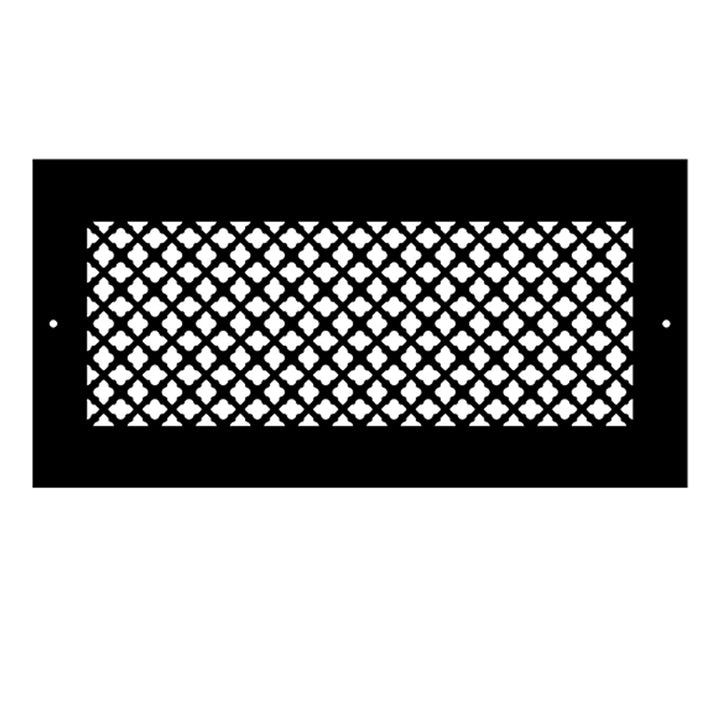

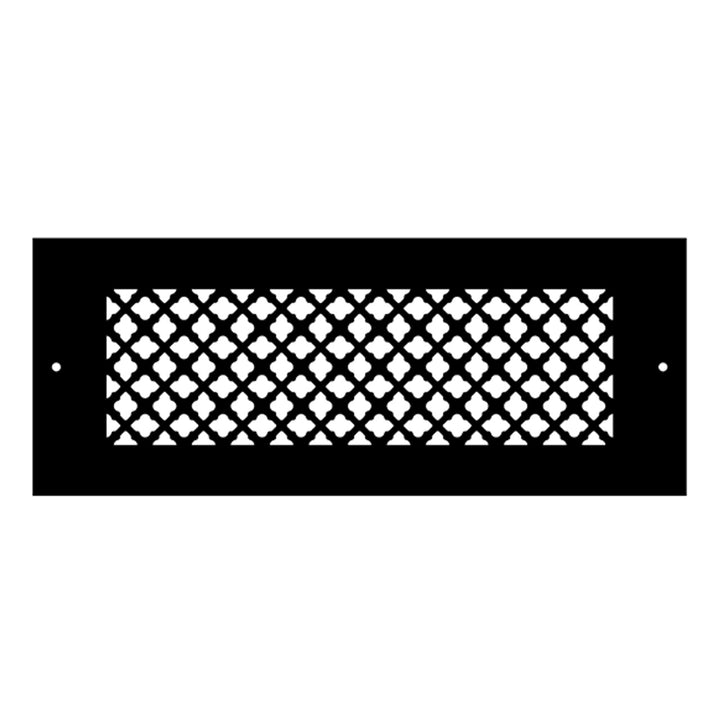

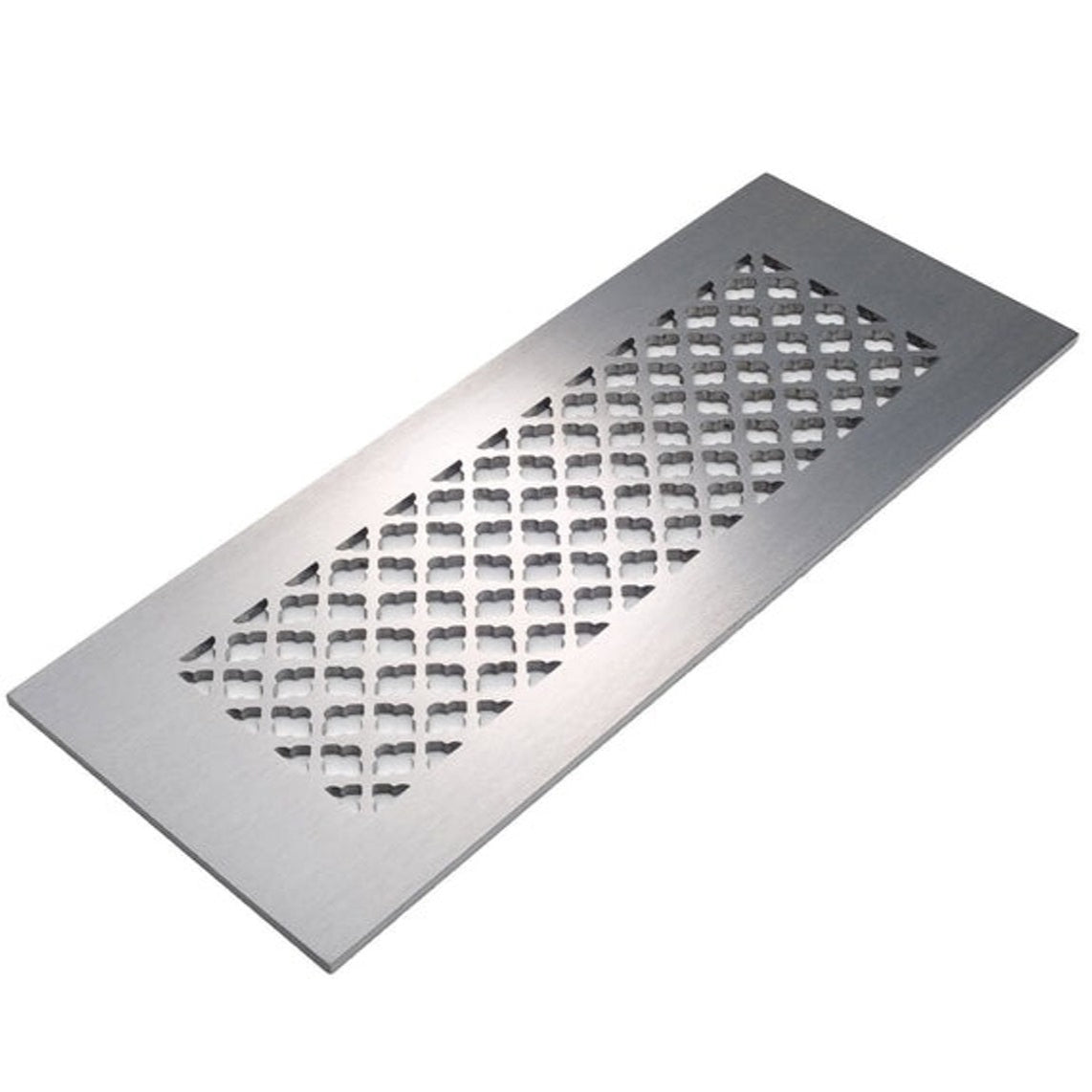

Imperial Design Vent Covers - Made to Order Collection

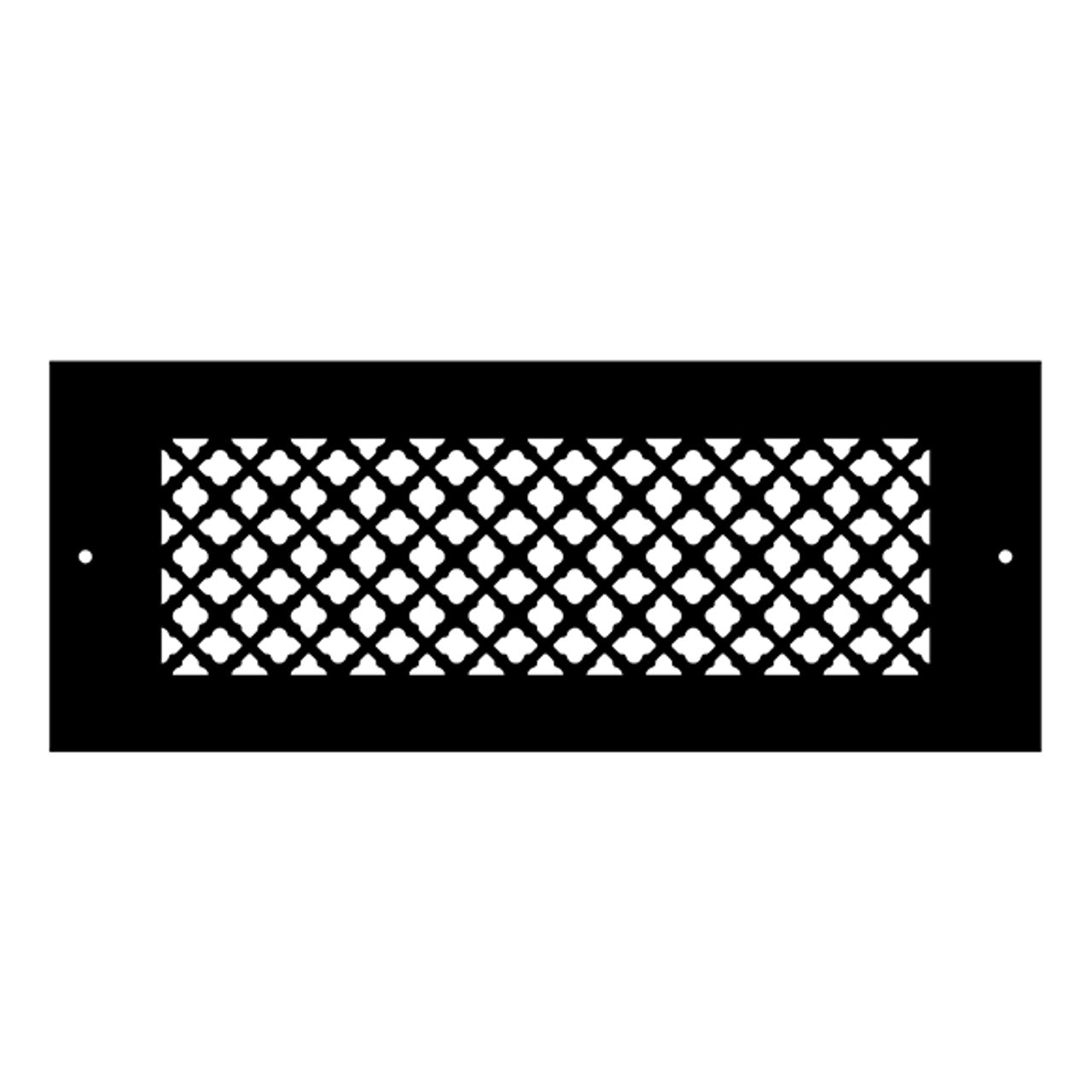

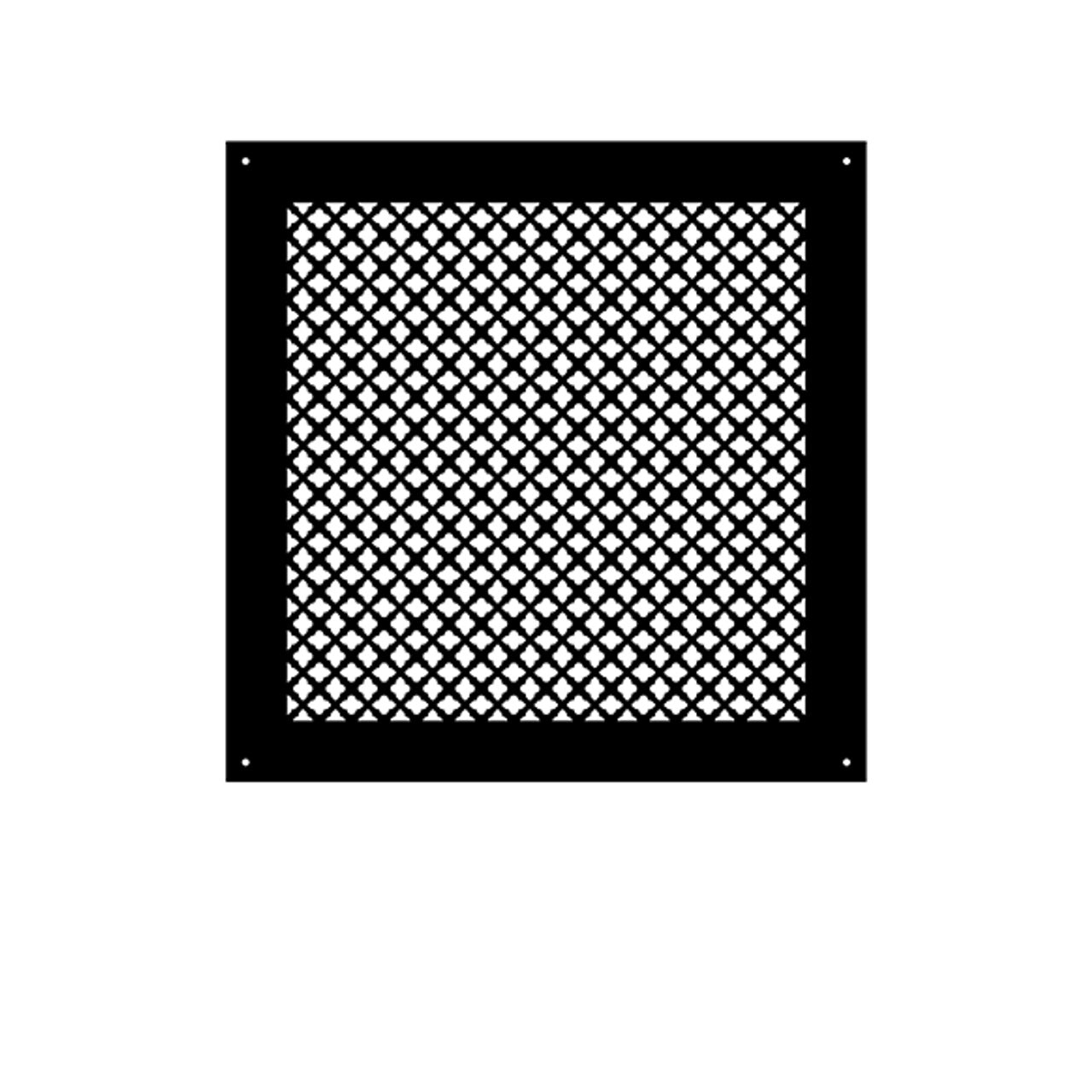

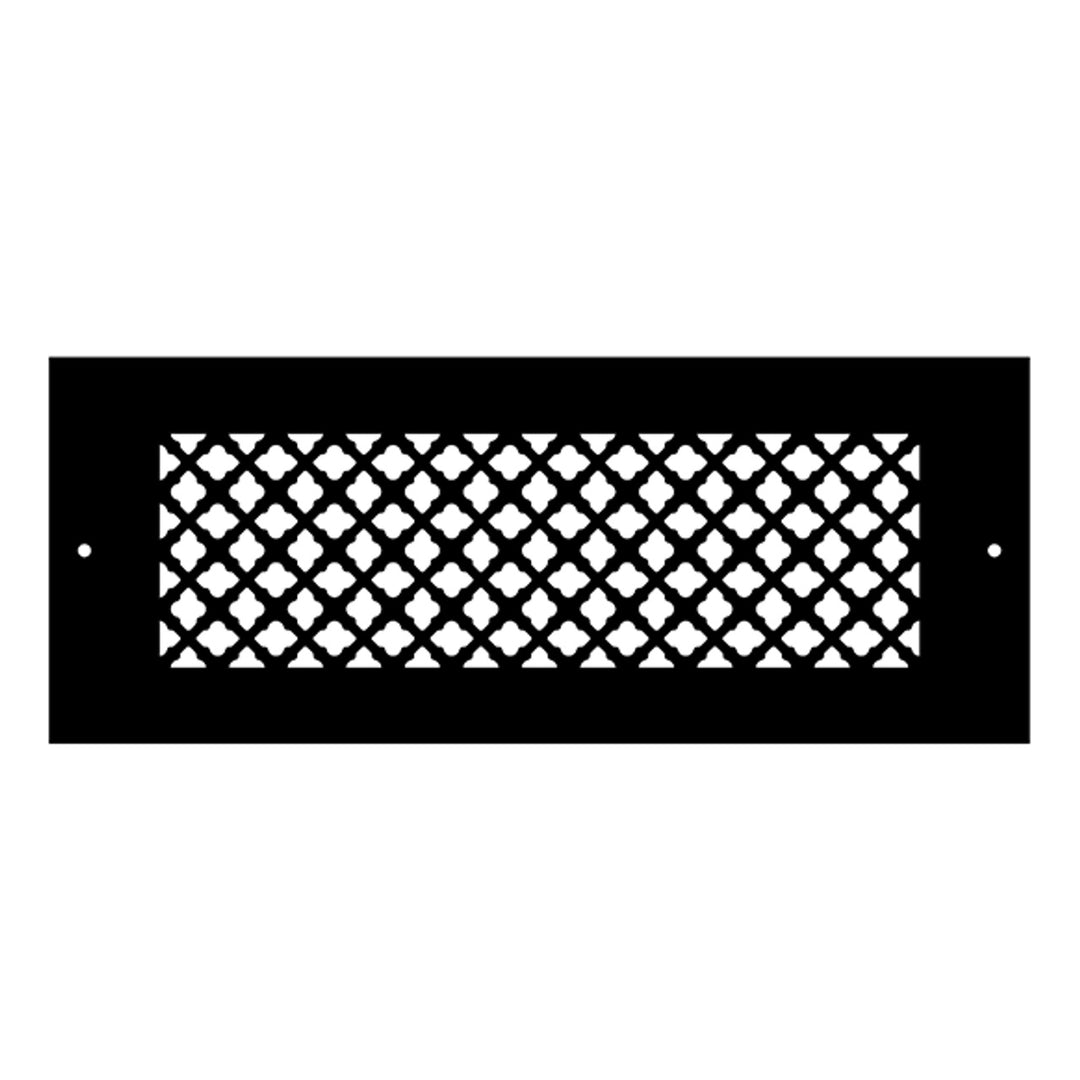

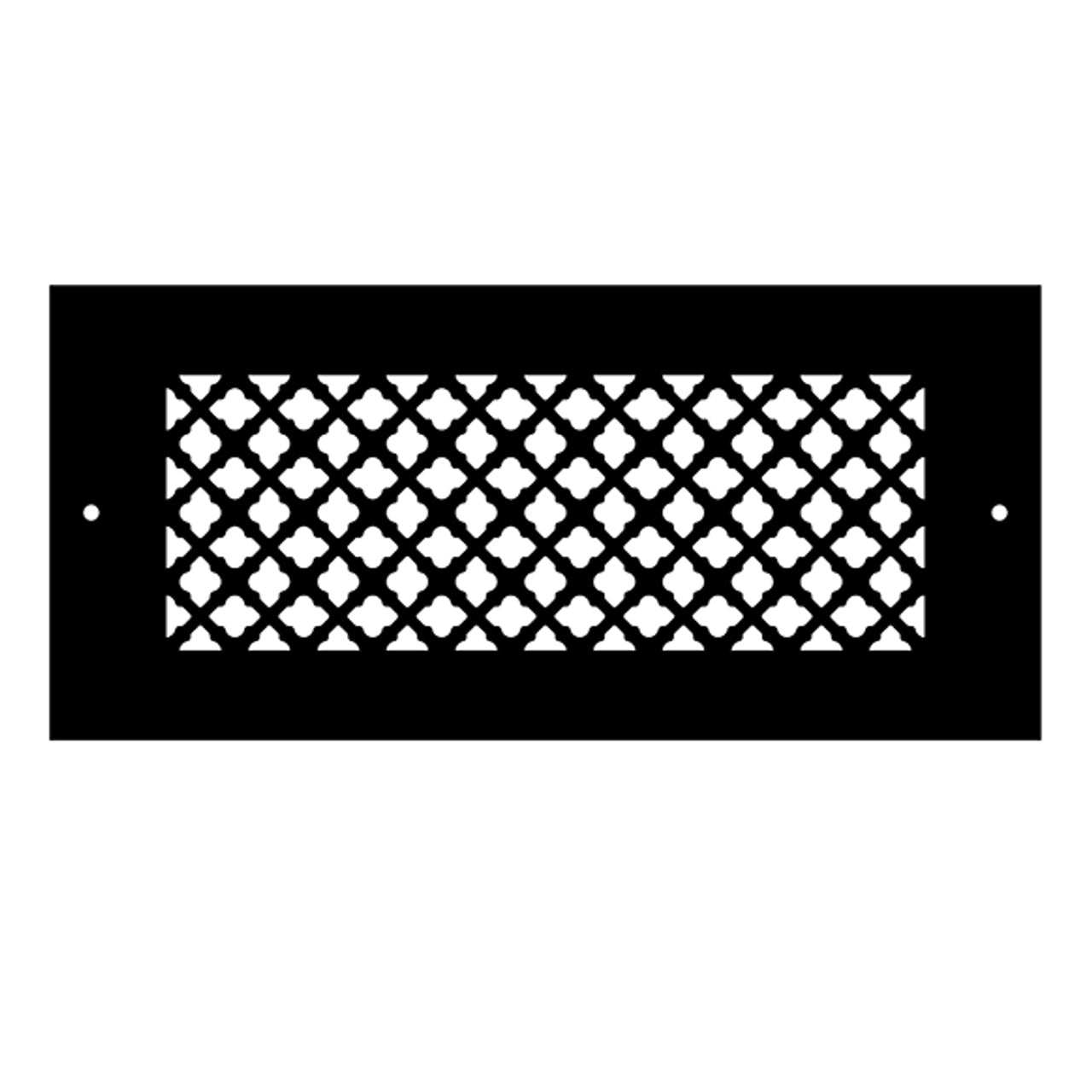

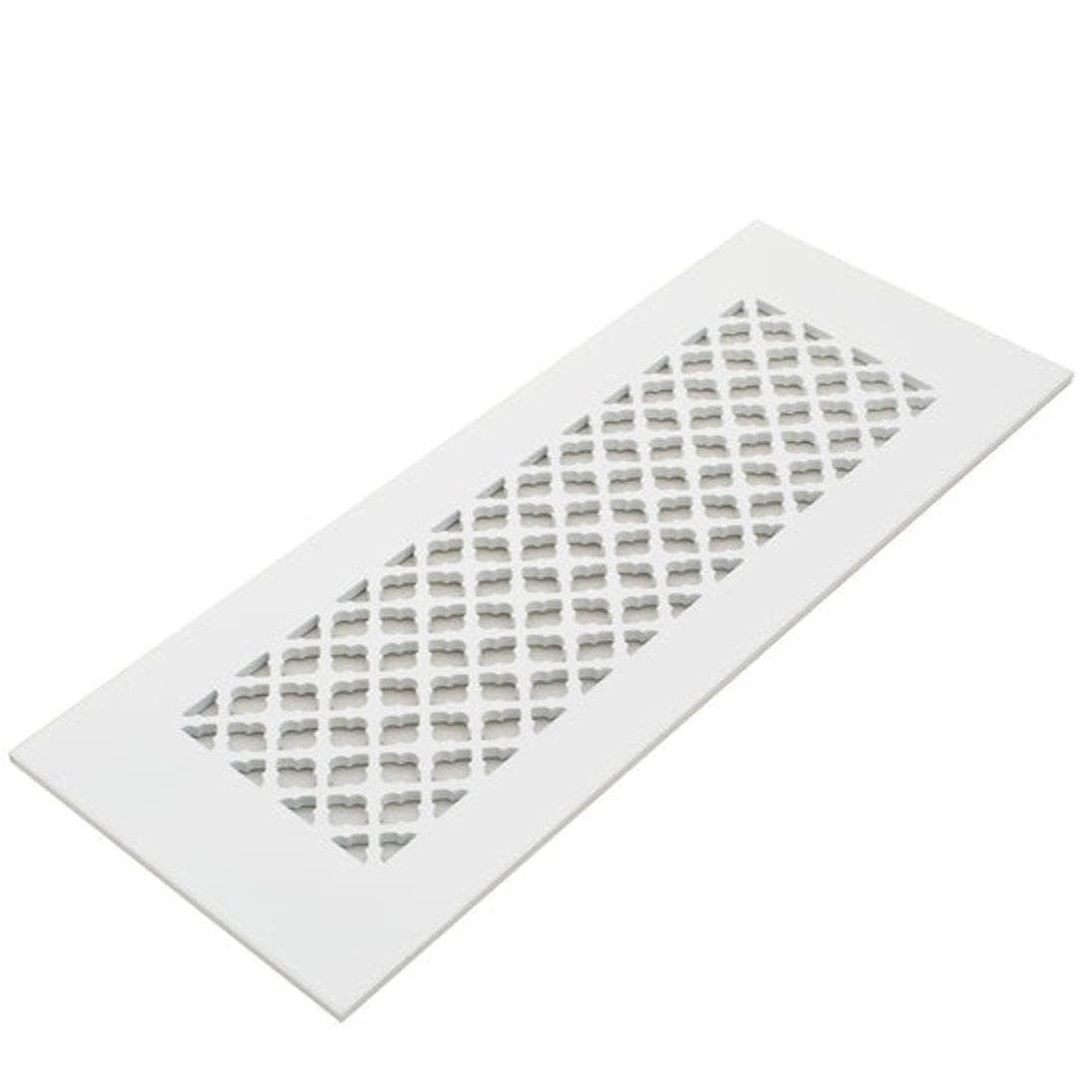

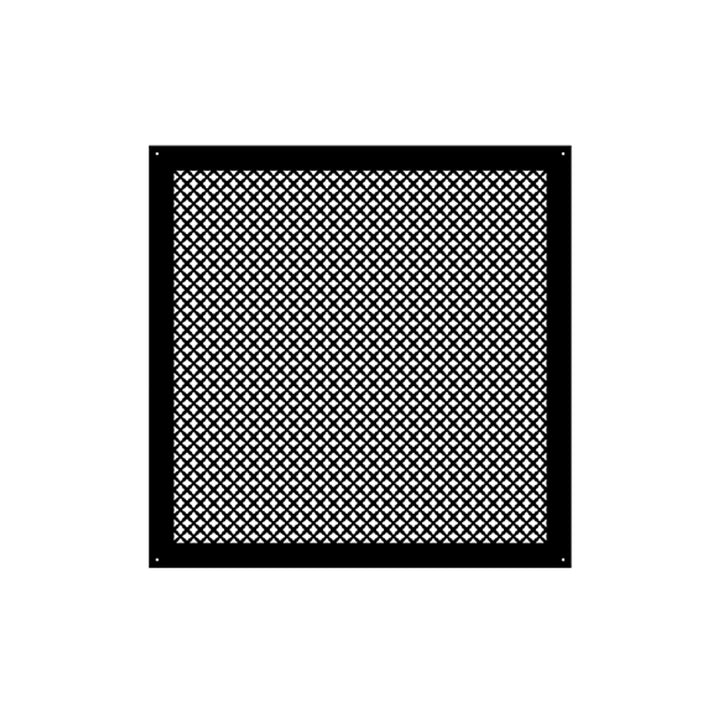

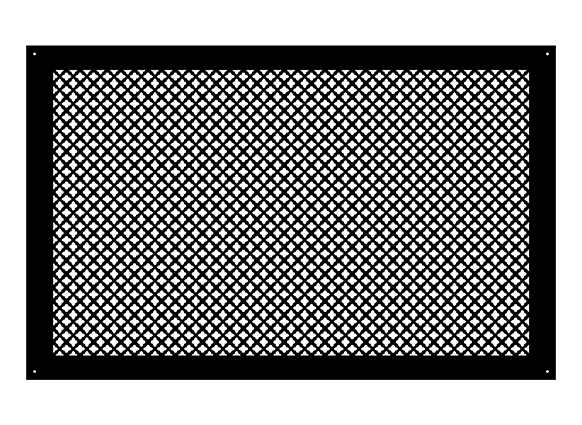

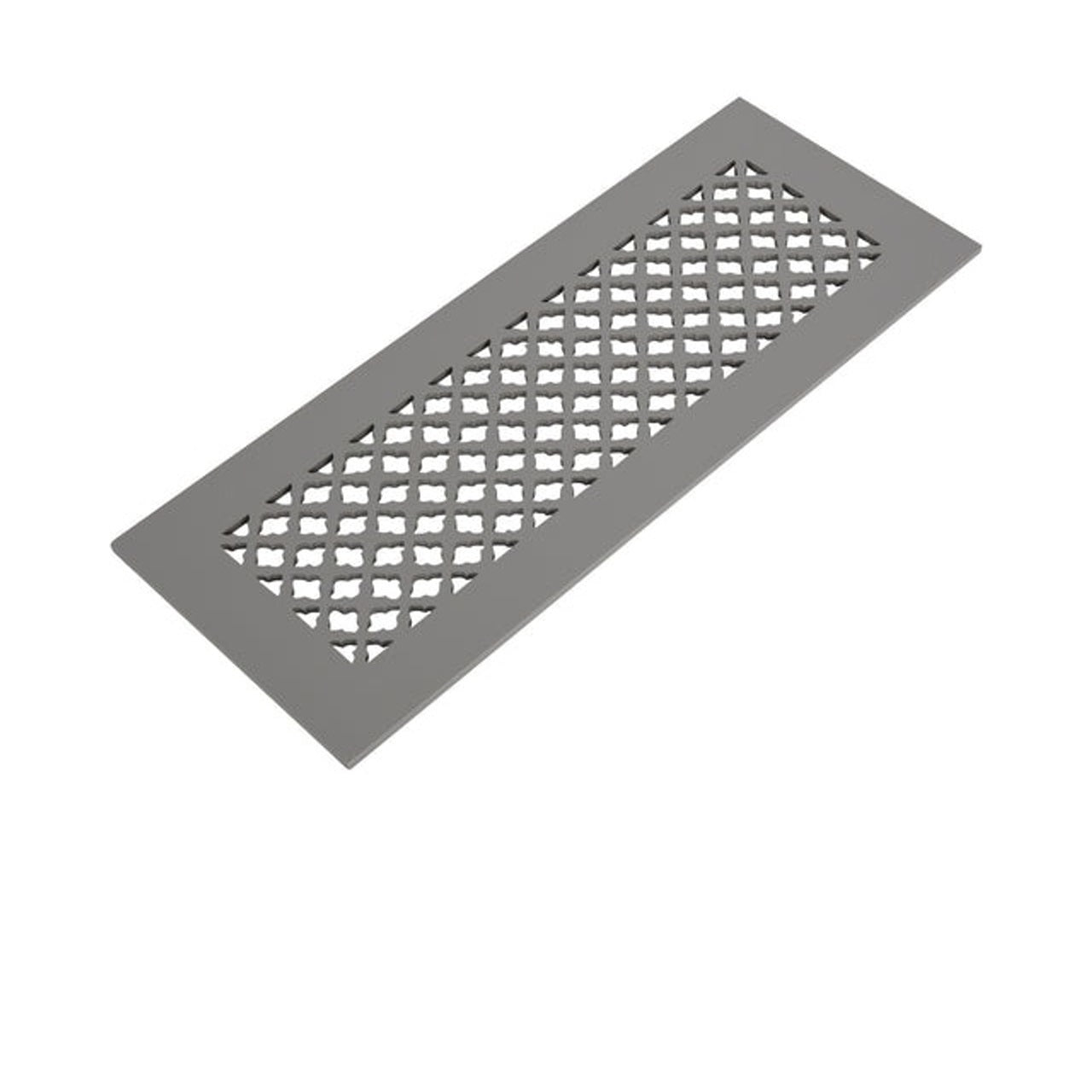

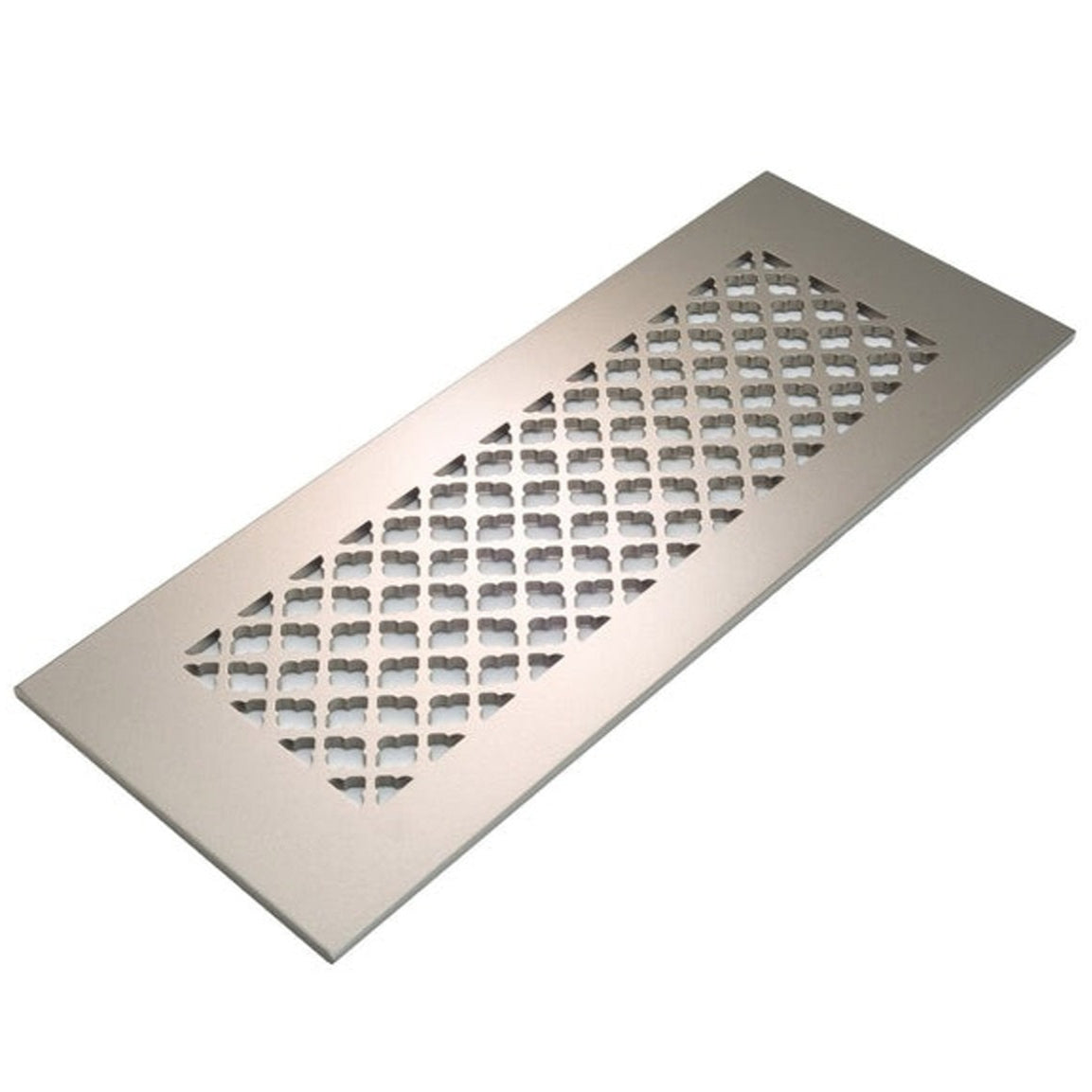

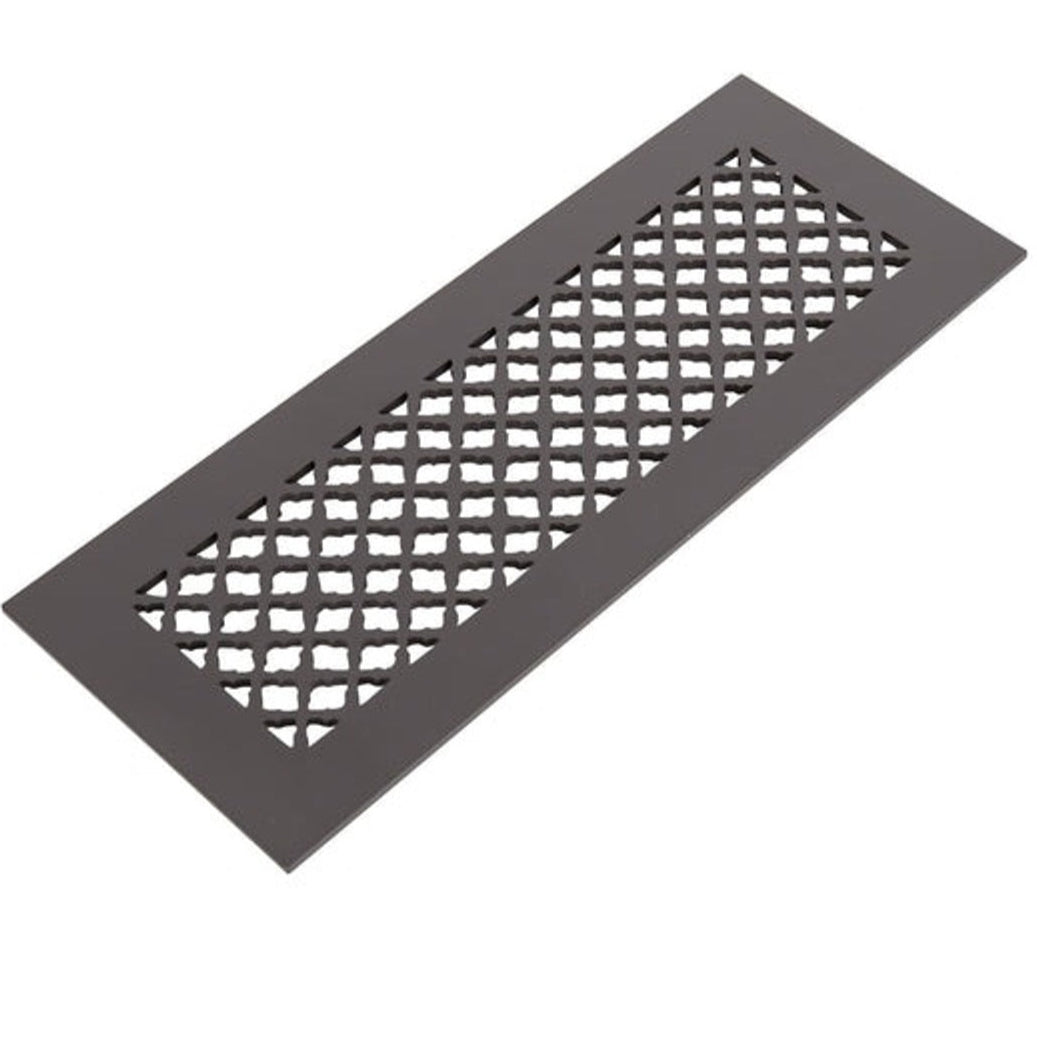

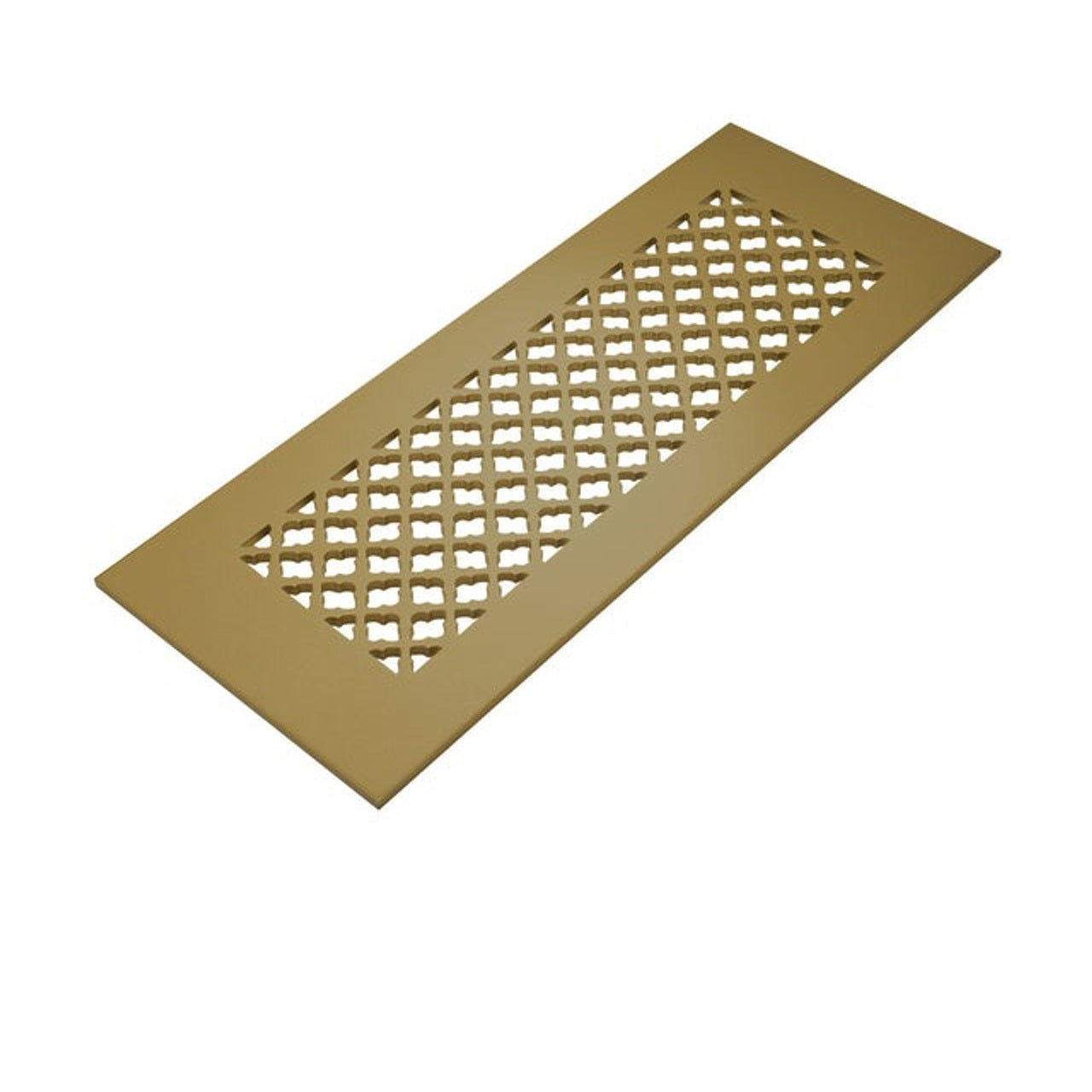

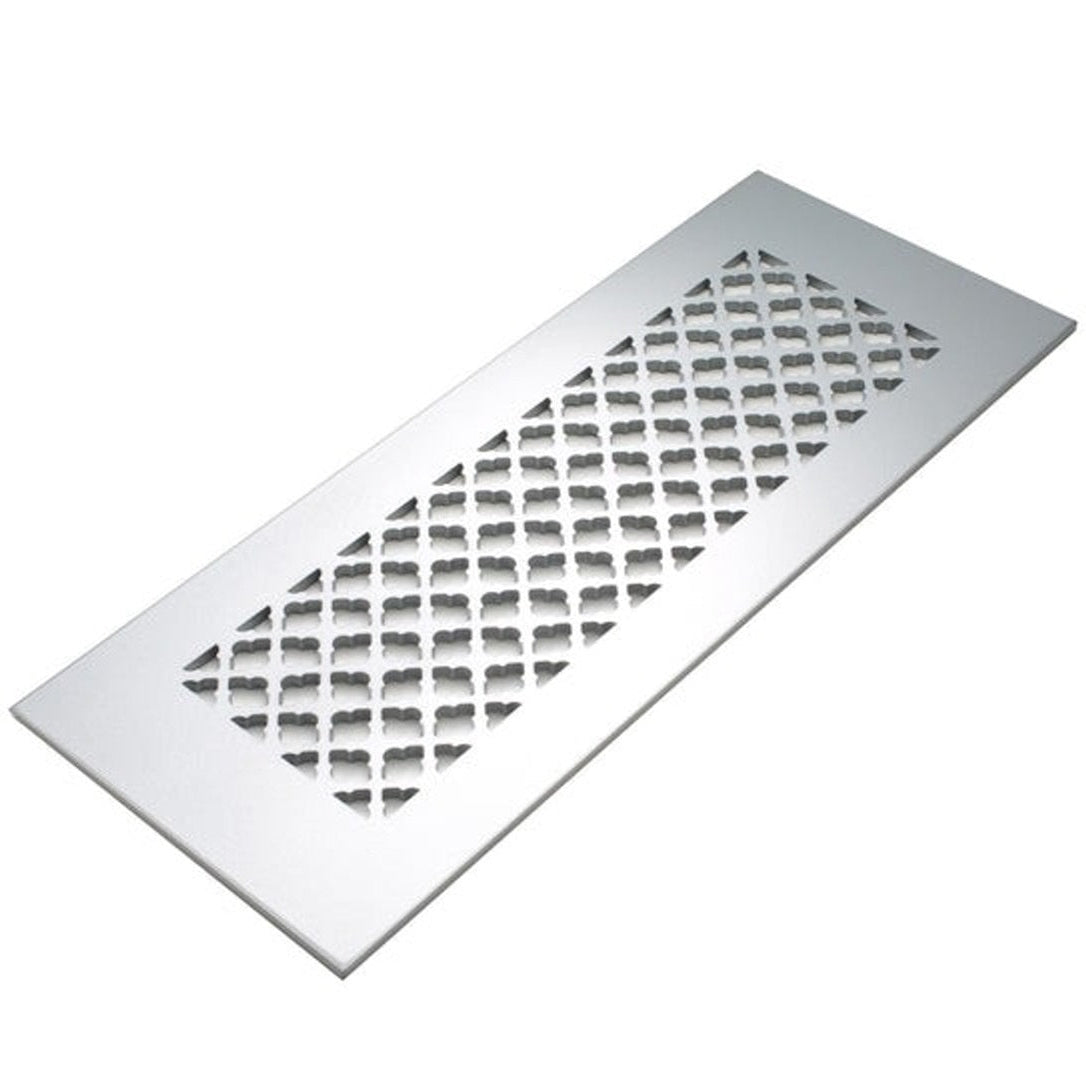

A classic clover leaf pattern to complement traditional and contemporary spaces. With our laser-cut capability, we can offer you options tailored to your project: 30+ sizes, 2 materials, 3 thicknesses, 6 colors, and optional mounting holes and underside lip. The steel or aluminum Imperial grille is available in 6 colors: Oil-Rubbed Bronze, Black, Sun Gold, White, Silver and Gray.
Laser Cut Aluminum & Steel Details:
- Available in 1/8" and 3/16" thicknesses. 1/4" thickness is available by special order.
- Aluminum 1/8” is not recommended for floor installation.
Well suited for both modern and traditional spaces. Available with optional mounting holes and underside lip.
Well suited for both modern and traditional spaces. Available in 30+ sizes, 2 materials, 3 thicknesses, 6 colors, and optional mounting holes and underside lip.
Available Materials
| Aluminum | Steel |
|---|---|
| Crafted from premium quality aluminum | Crafted from premium quality steel |
| Lighter in weight than laser cut steel | Heavier than laser cut aluminum |
| Ideal for wall and ceiling installations | Ideal for floor, wall, and ceiling installations |
| Available in 3/16" thickness | Available in 1/8", 3/16", and 1/4" thicknesses |
| Rust-proof even in wet environments | Durable powder coat on both sides seals out rust |
Material Thickness Options
| 3/16" Thickness | 1/8" Thickness | 1/4" Thickness |
|---|---|---|
| The leading choice for most installation types | Our thinnest grille option for walls and ceilings only | A heavier grille option for different installation types |
| 3/16" Steel: Low to medium traffic floors, walls, ceilings 3/16" Aluminum: Walls and ceilings |
1/8" Steel: Walls and ceilings | 1/4" Steel: High traffic floors and walls |

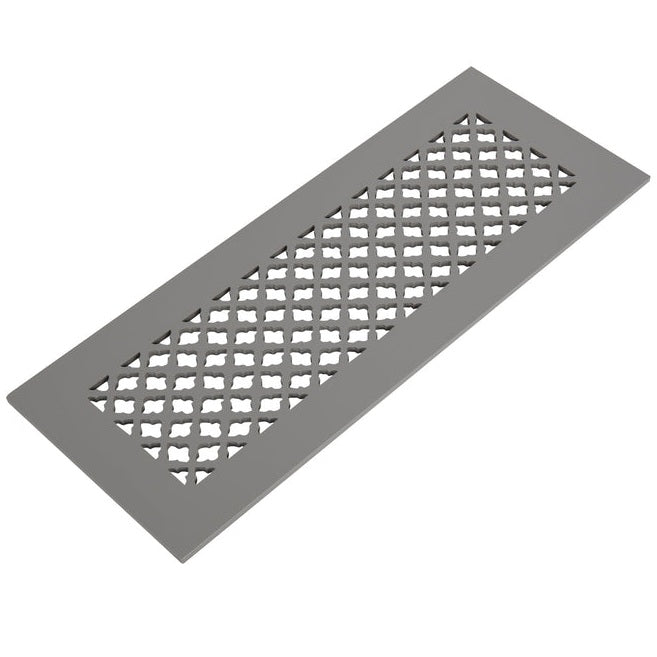

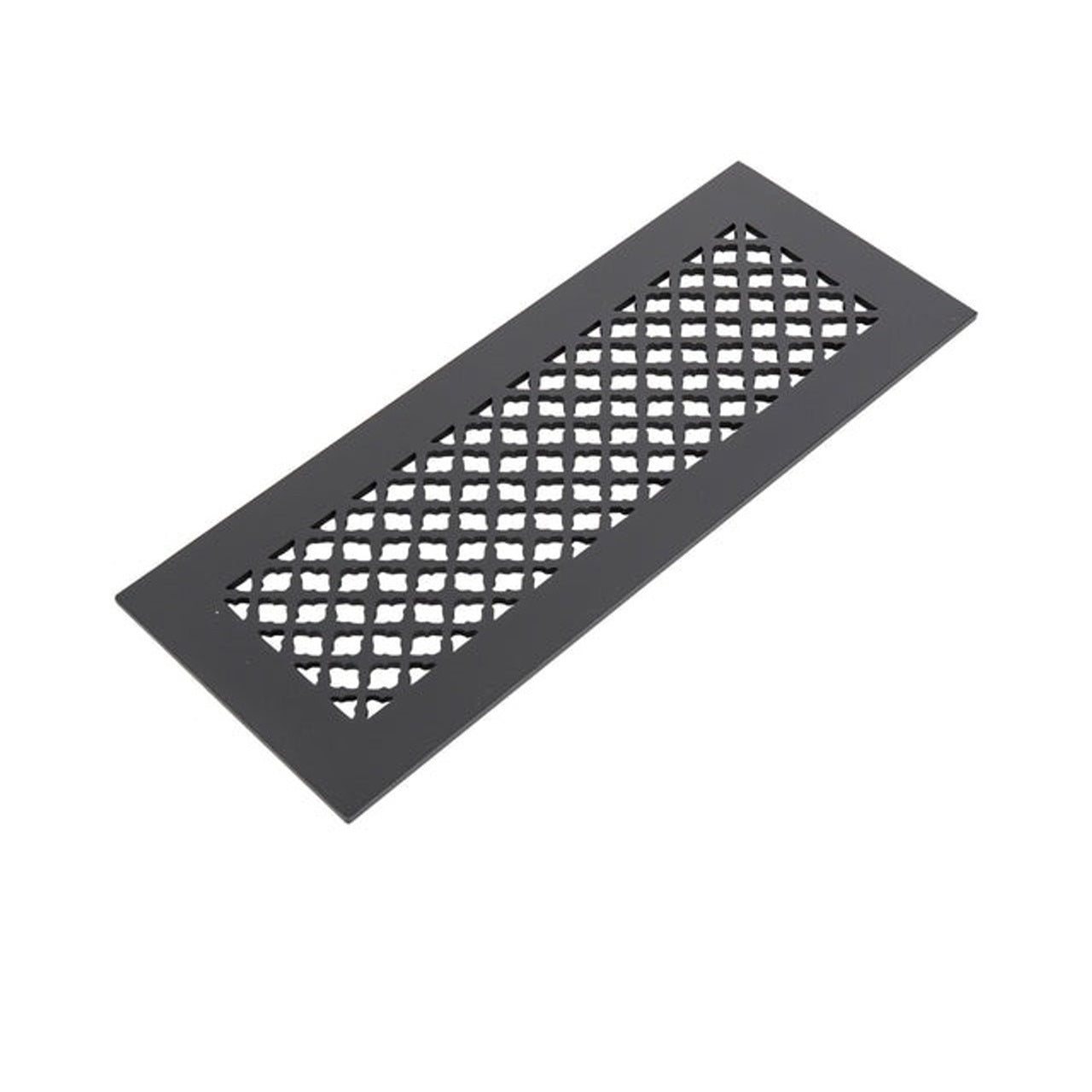

Available Finishes
Optional Underside Lip
When do you need an underside lip?

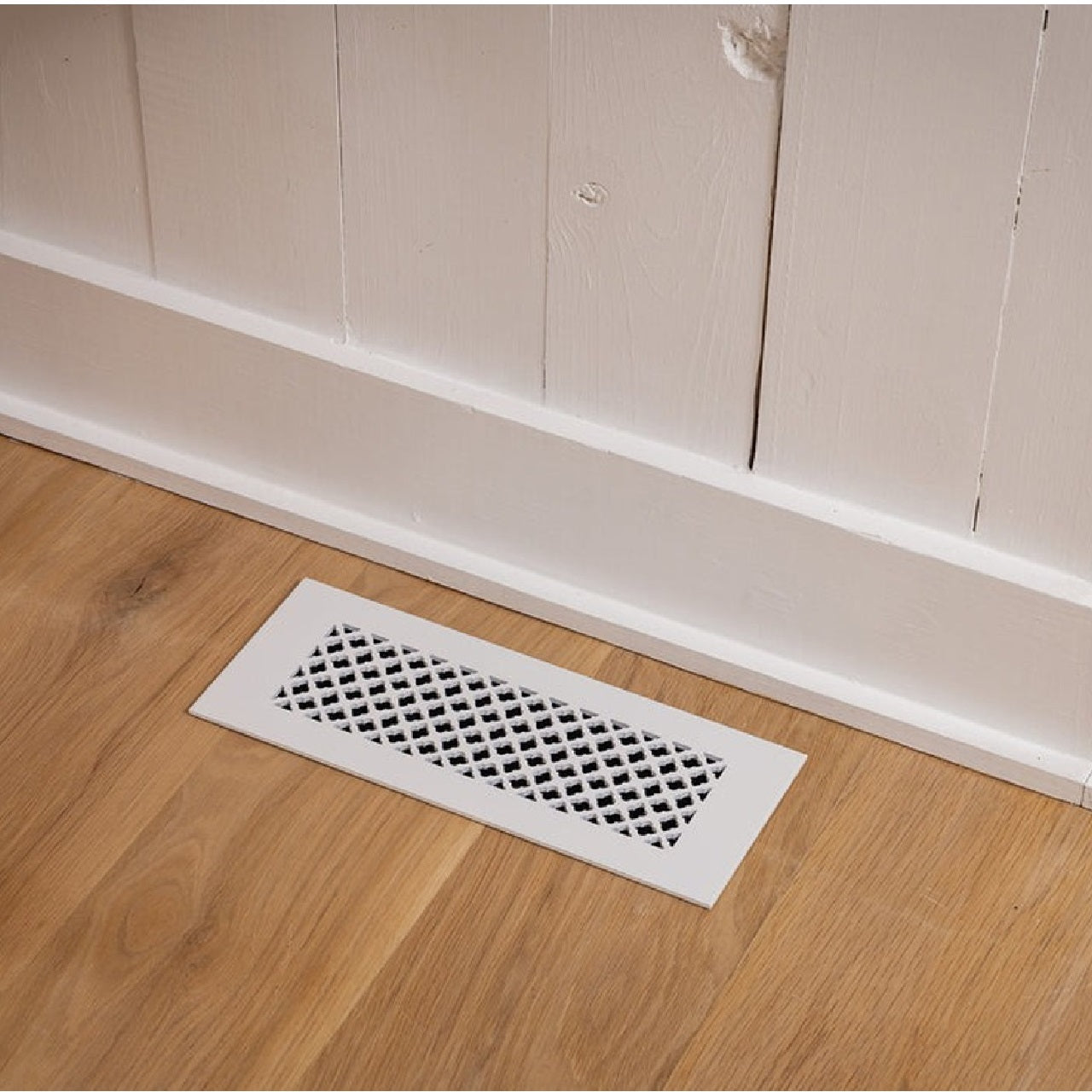

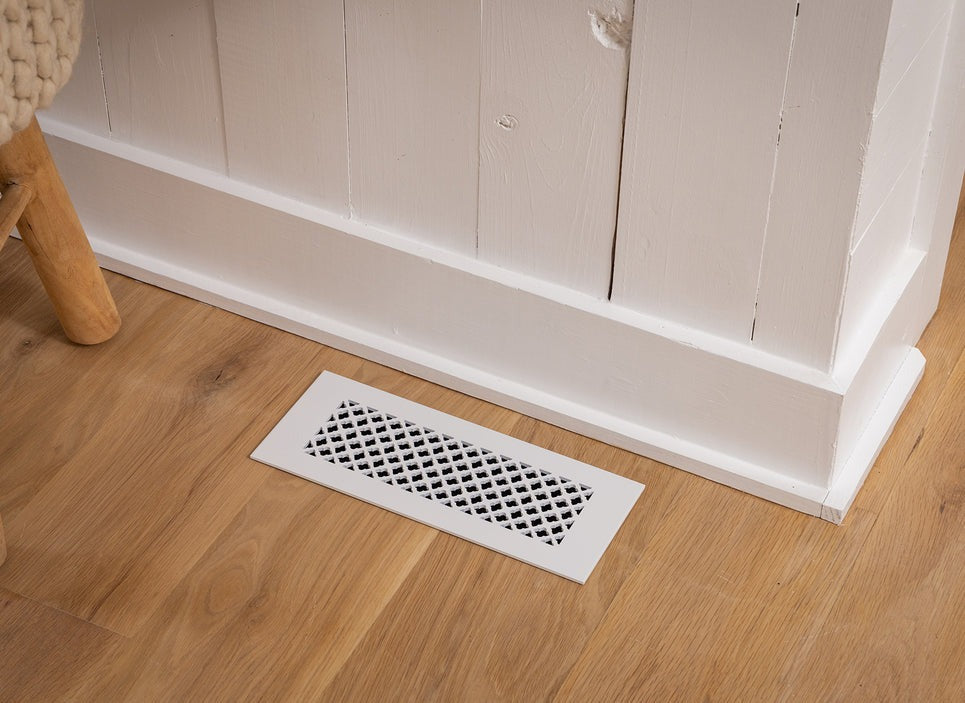

If the grille is being used for a floor installation, you may choose an Underside Lip to hold the grille in place. Without it, the grille must be recessed into the floor or mounted with holes.
Do you still need mounting holes?
In high-traffic areas, mounting holes can keep the grille securely in place and prevent tampering. While not required when using an underside lip, they may be preferred.
When is an underside lip not recommended?
An underside lip is not recommended if the opening is not evenly cut, as the lip may not fit properly.
1/2" Underside Lip
No Underside Lip - Flat

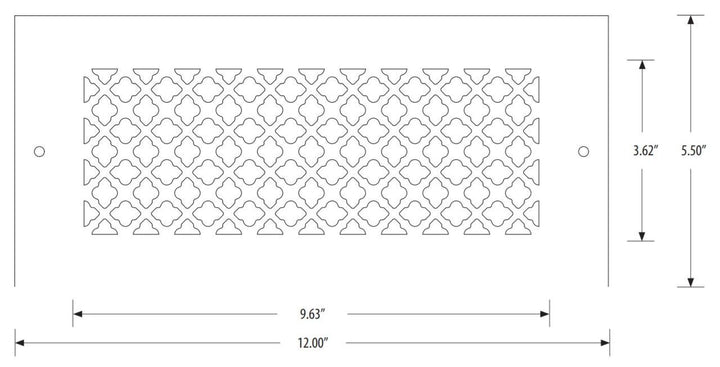

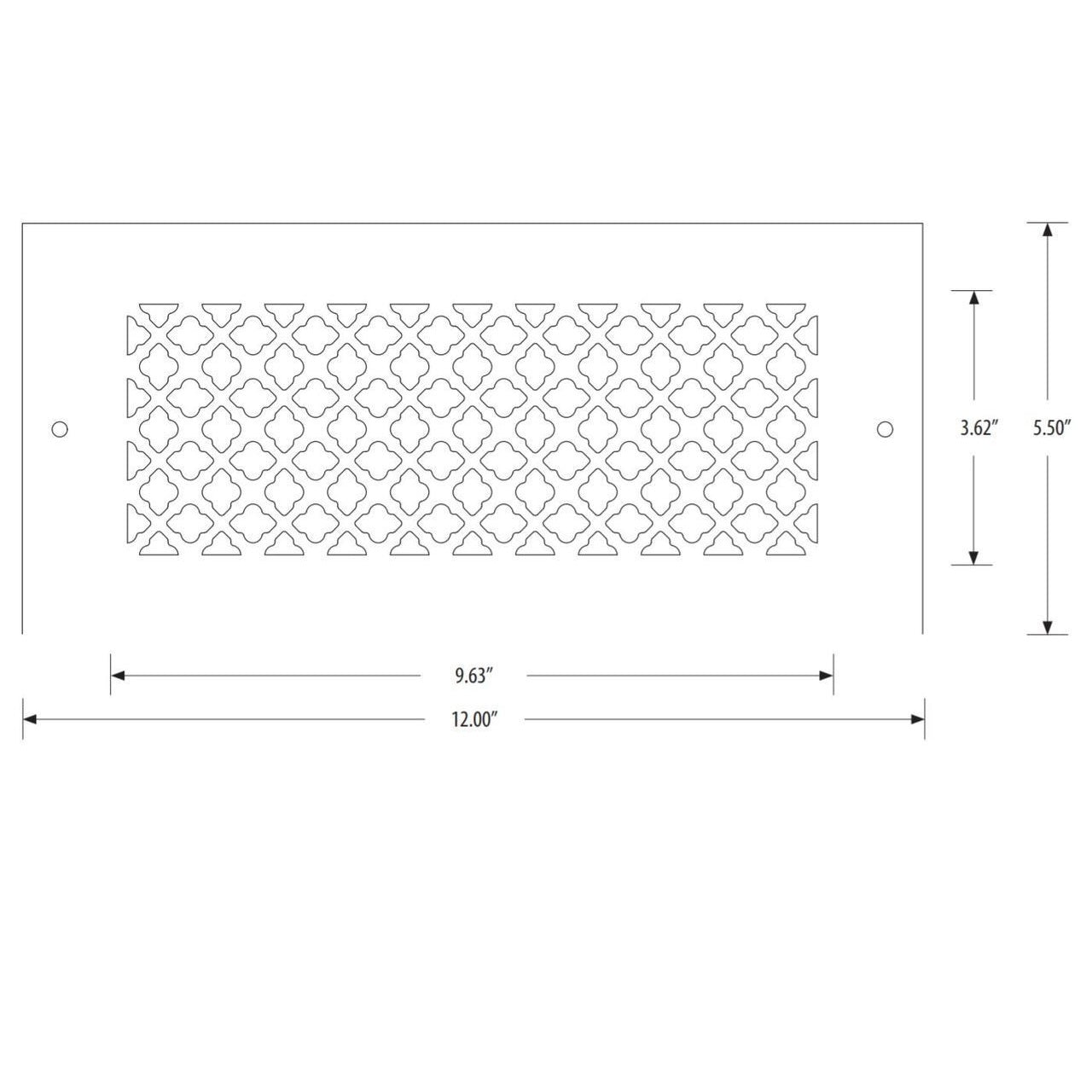

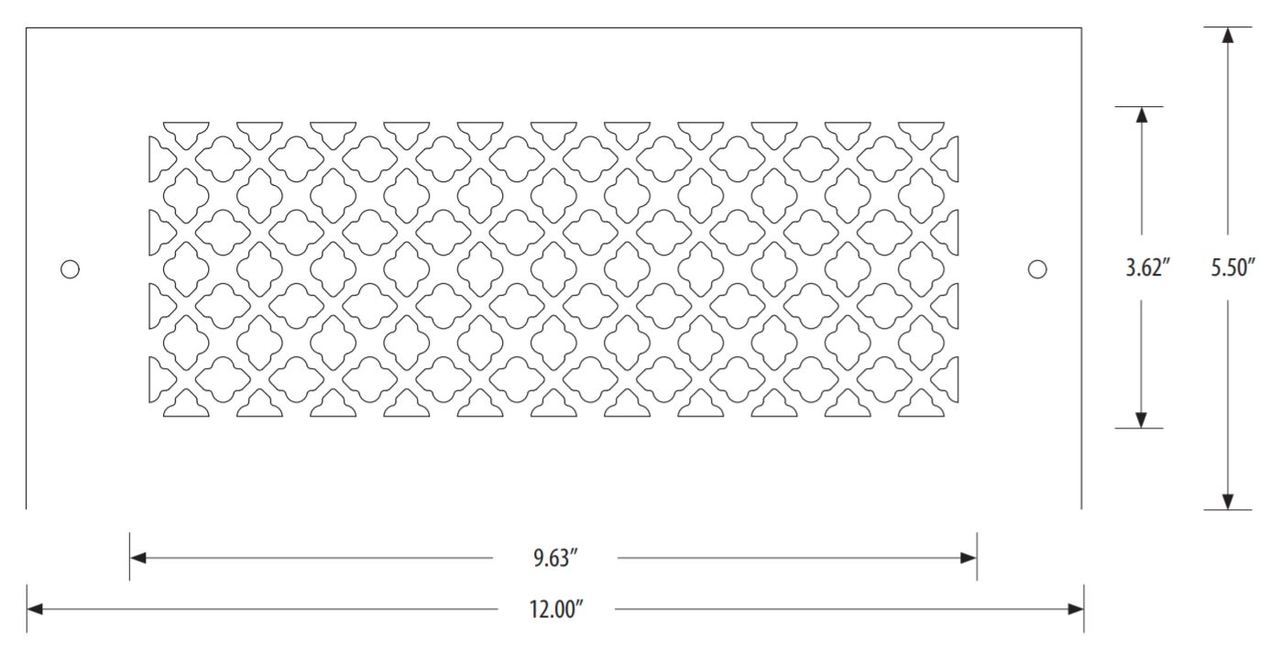

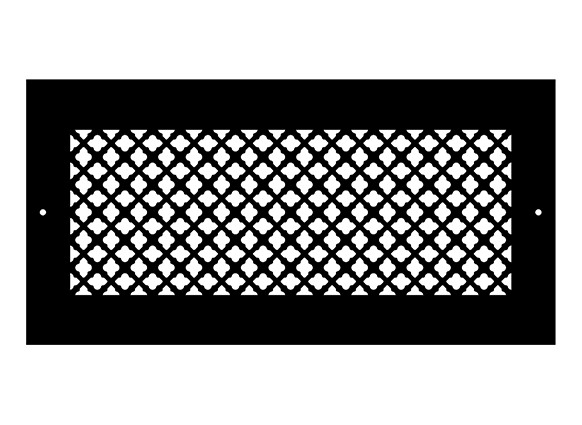

Schematics & Specifications

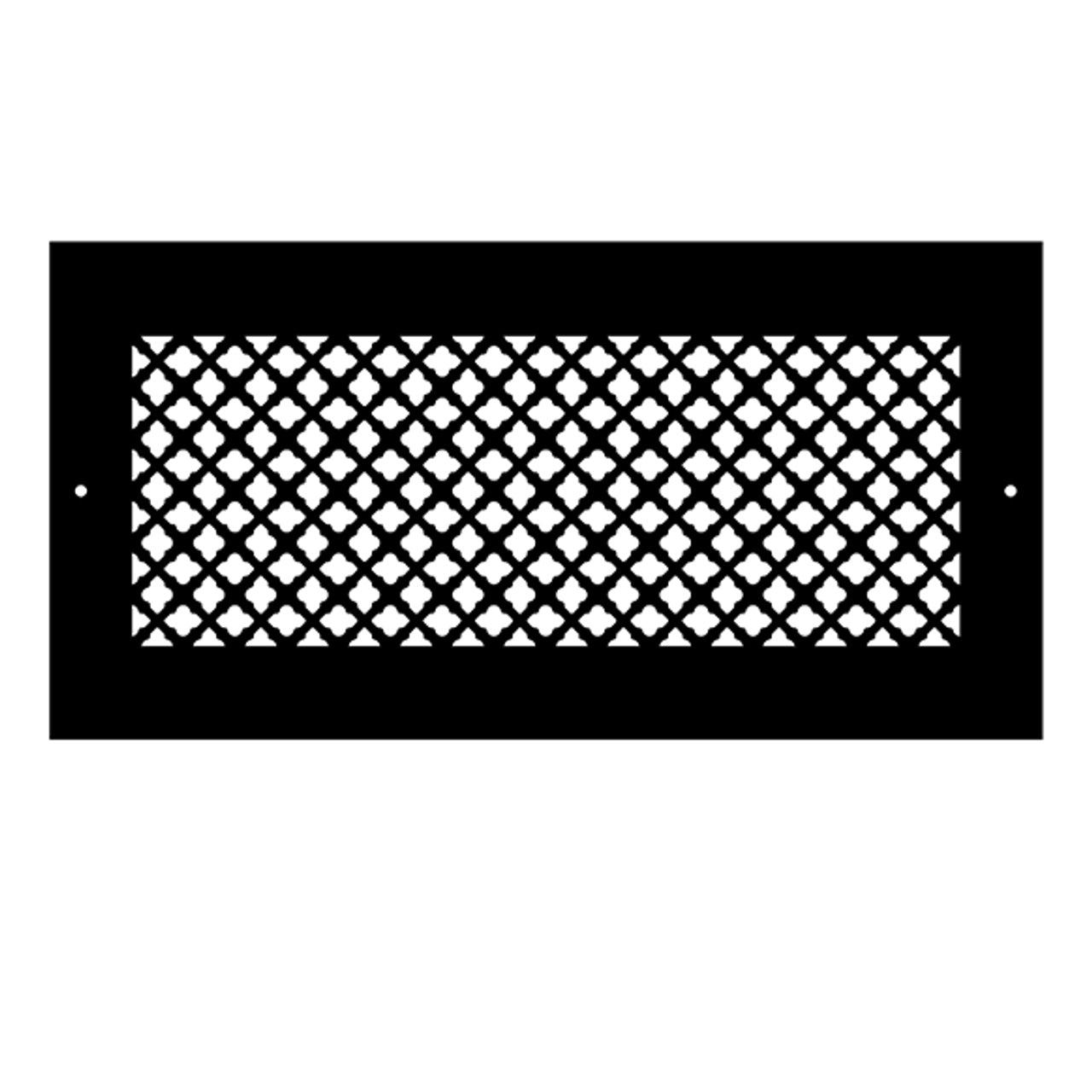

(4" x 10" Pictured)
- Duct Size Dimensions: 10.00” x 4.00”
- Outside Dimensions: 12.00” x 5.50”
- Design Dimensions: 9.63” x 3.62”
- Made in USA
Dimensions
| Duct Size | Overall Size |
|---|---|
| 2¼" x 10" | 3½" x 12" |
| 2¼" x 12" | 3½" x 14" |
| 2¼" x 14" | 3½" x 16" |
| 4" x 8" | 5½" x 10" |
| 4" x 10" | 5½" x 12" |
| 4" x 12" | 5½" x 14" |
| 4" x 14" | 5½" x 16" |
| 6" x 6" | 8" x 8" |
| 6" x 10" | 8" x 12" |
| 6" x 12" | 8" x 14" |
| 6" x 14" | 8" x 16" |
| 6" x 22" | 8" x 16" |
| 6" x 24" | 8" x 26" |
| 6" x 30" | 8" x 32" |
| 8" x 8" | 10" x 10" |
| 8" x 10" | 10" x 12" |
| Duct Size | Overall Size |
|---|---|
| 8" x 12" | 10" x 14" |
| 8" x 14" | 10" x 16" |
| 9" x 20" | 11" x 22" |
| 10" x 10" | 12" x 12" |
| 10" x 14" | 12" x 16" |
| 10¼" x 12¼" | 12" x 14" |
| 12" x 12" | 14½" x 14½" |
| 12" x 14" | 14½" x 16½" |
| 12" x 24" | 14½" x 26½" |
| 14" x 14" | 16½" x 16½" |
| 14" x 18" | 16½" x 20½" |
| 18" x 18" | 20½" x 20½" |
| 18" x 30" | 20½" x 32½" |
| 24" x 24" | 26½" x 26½" |
| 29-5/8" x 29-5/8" | 32" x 32" |
| Custom Sizes Available | |
Optional Louvers
These louver assemblies are designed to fit behind our grilles to control air flow and increase heating and cooling efficiency. Mounted independently of the grille, they are opened and closed with a flathead screwdriver, provided by the customer. In some cases, you may have to remove the grille to adjust louvers. Allow 2 5/16" clearance for louvers behind grille. Foam strips for installation are included with each louver.
- Louver installs directly in air duct
- Open & close using included key or flathead screwdriver
- Does not direct air flow
- Includes foam strip for a snug fit
- Does NOT attach to grille
