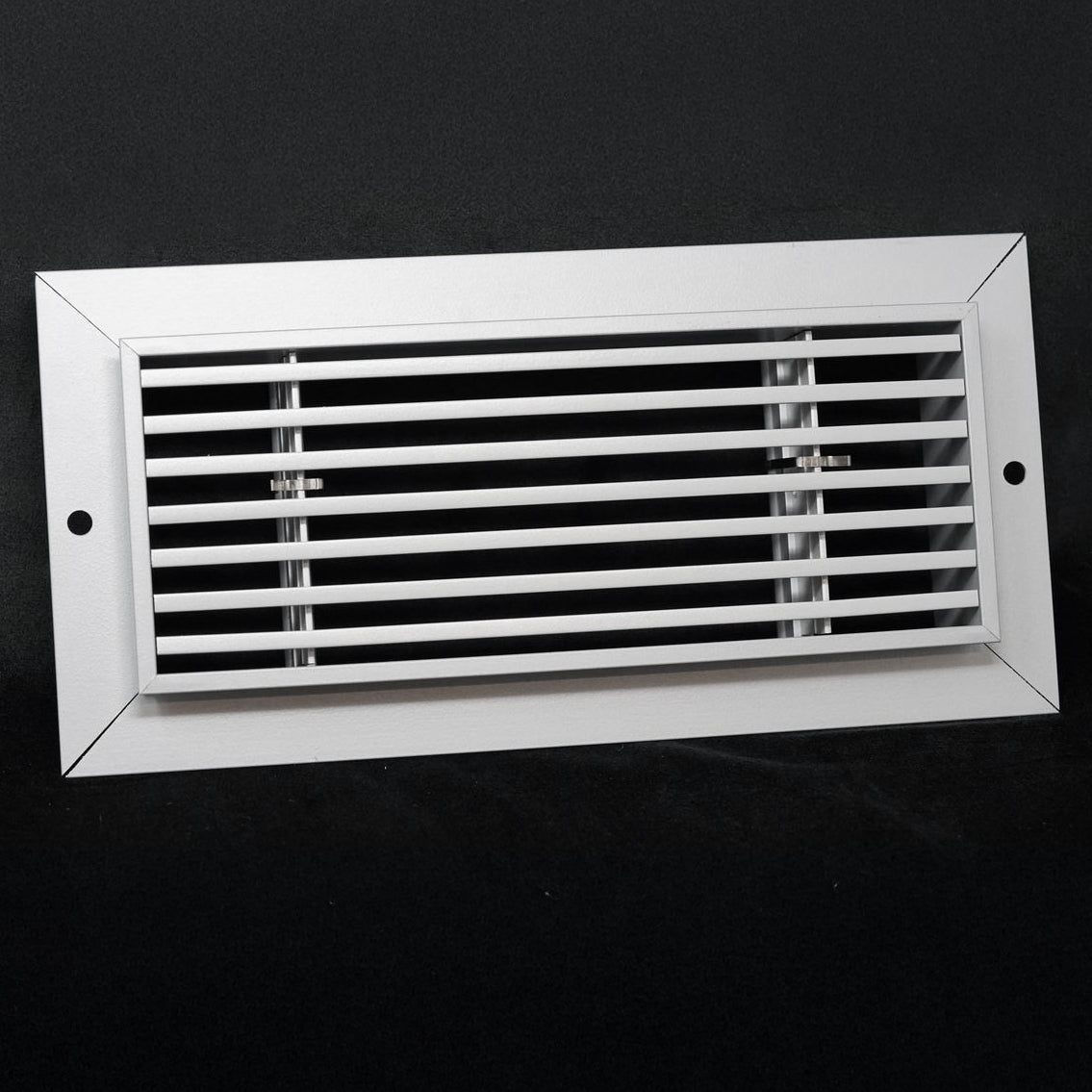

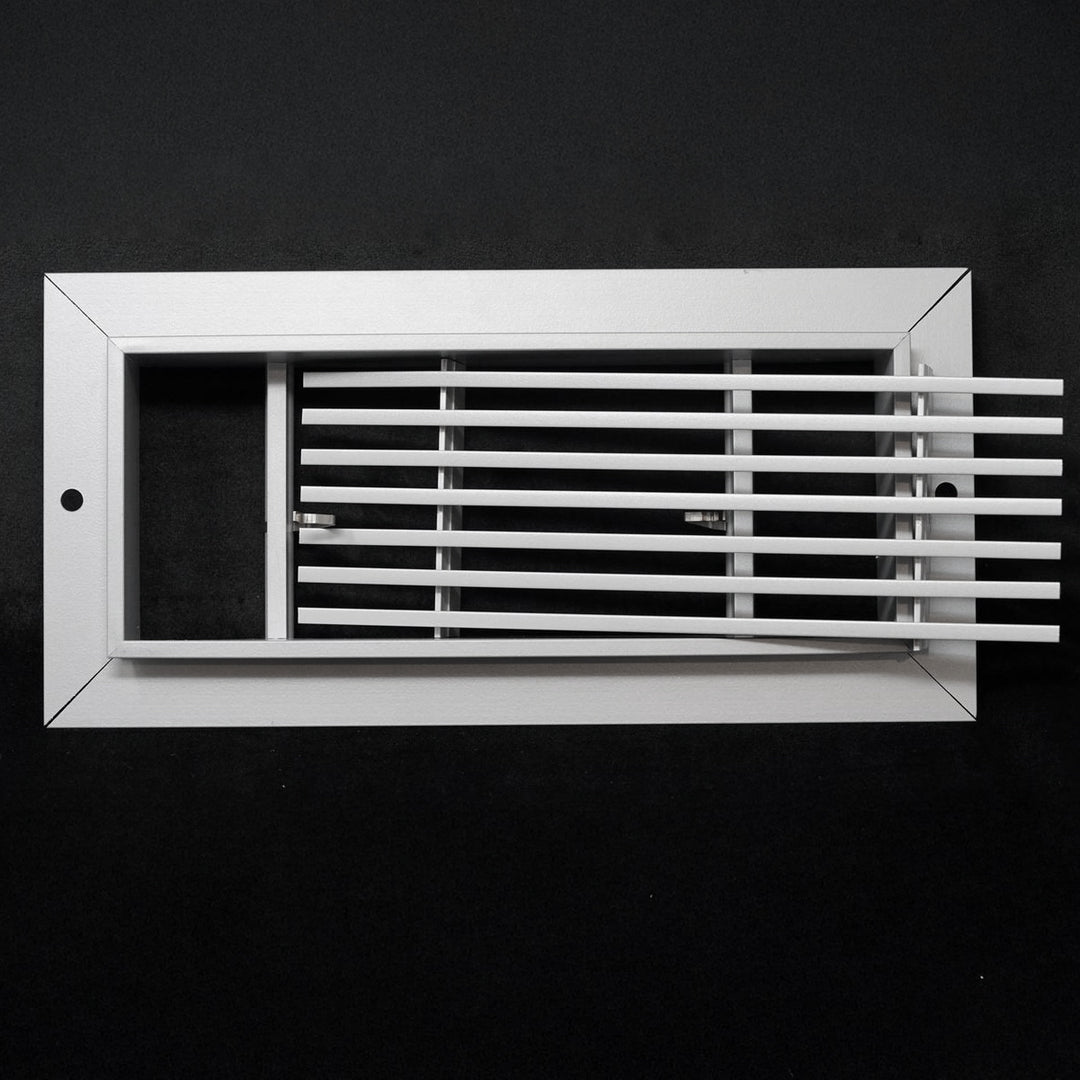

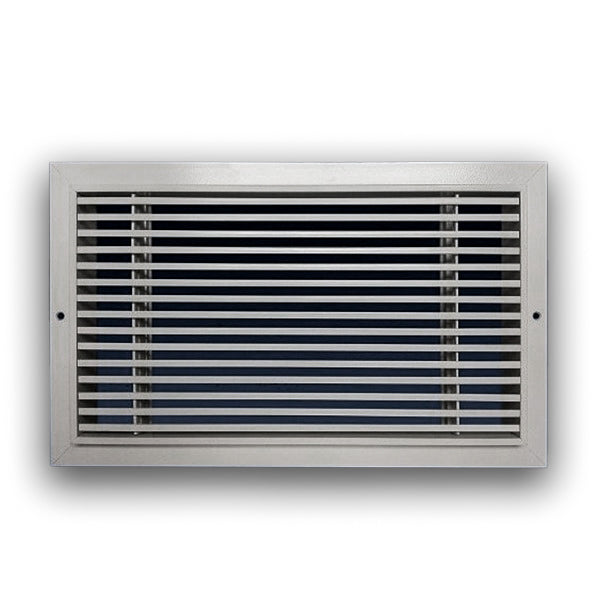

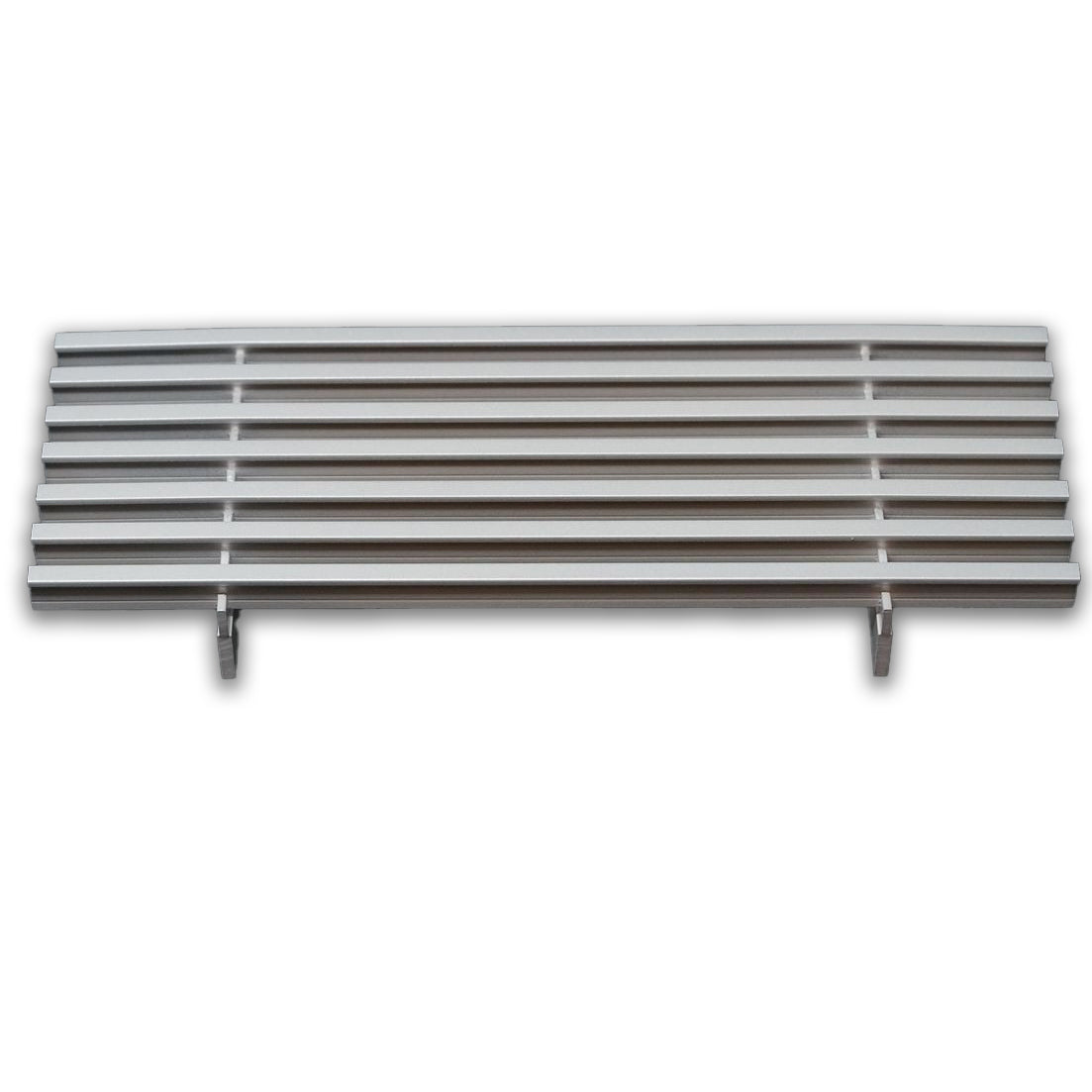

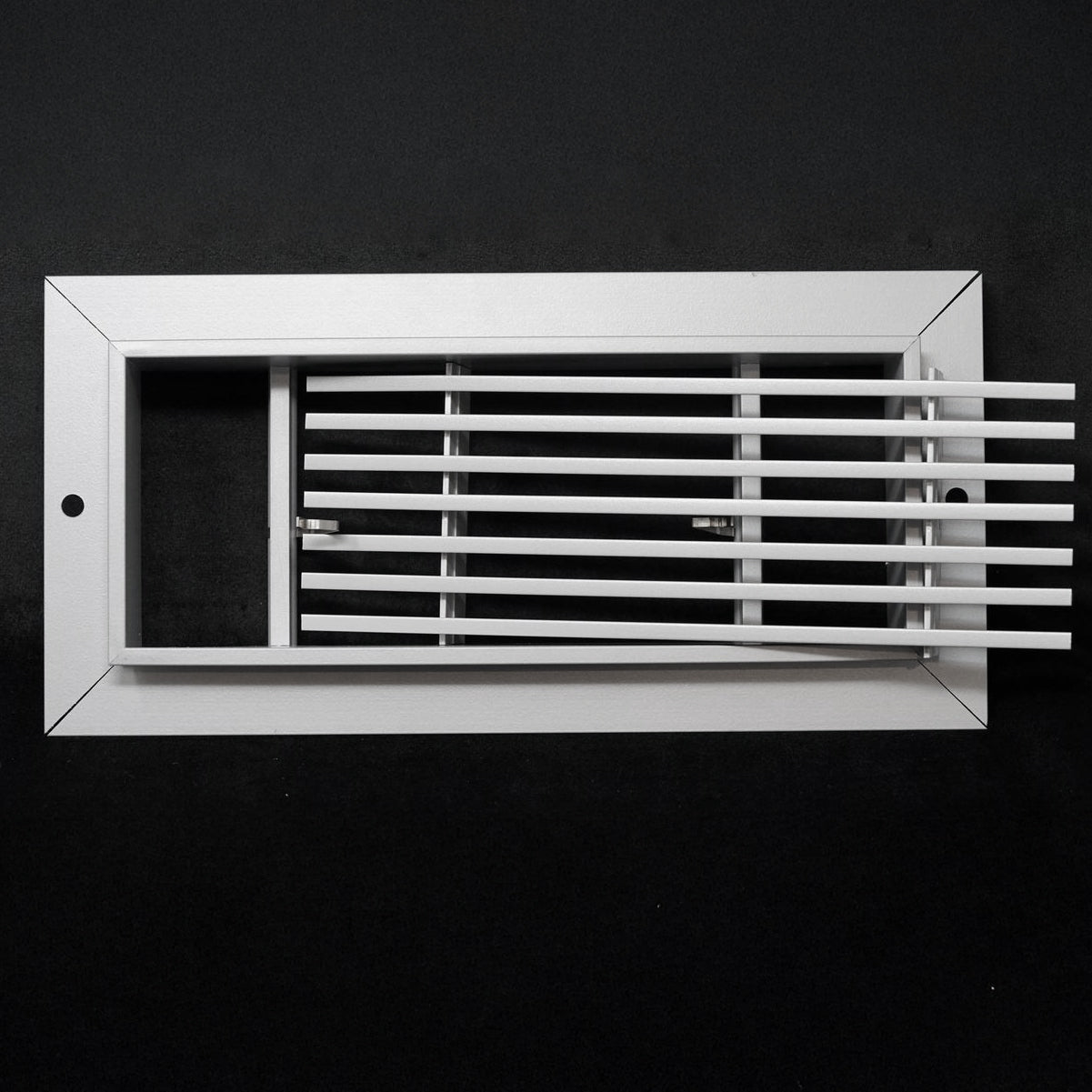

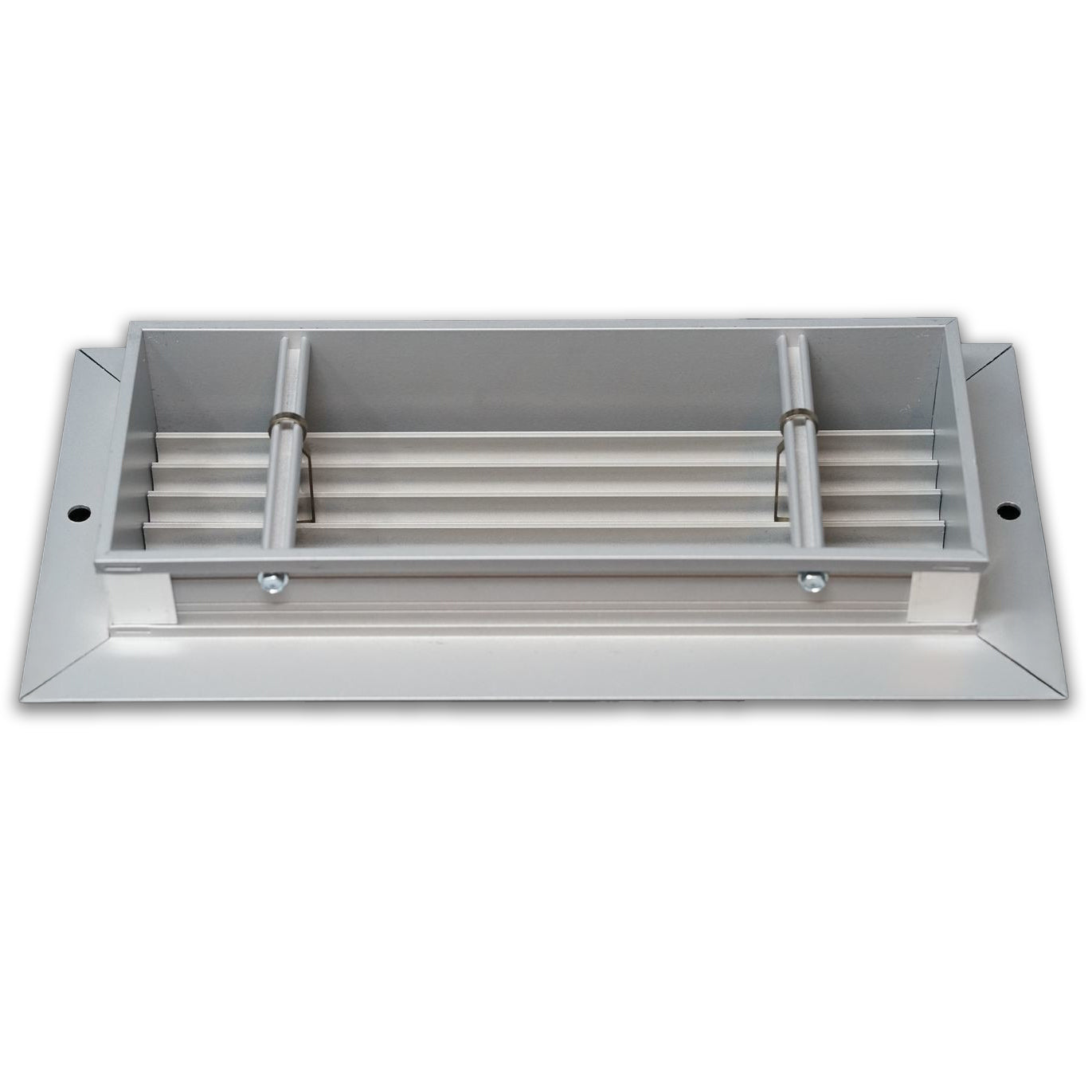

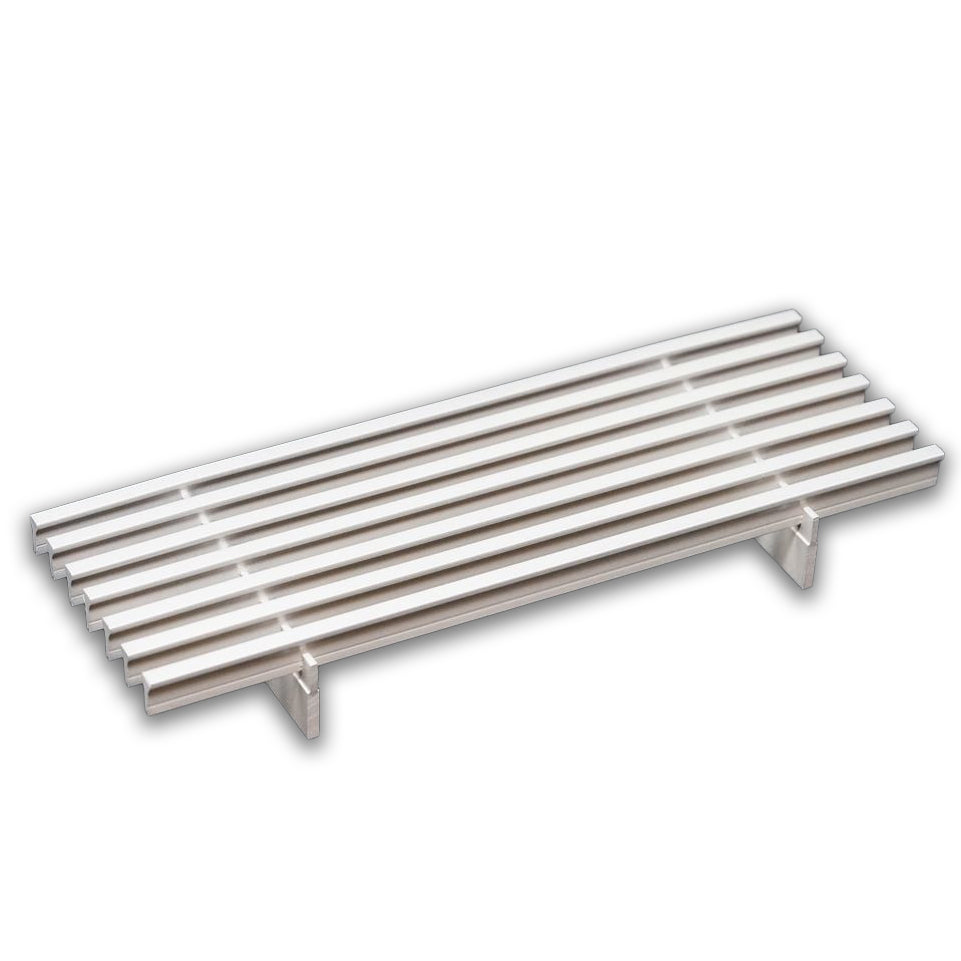

Hidden Flange Bar Linear Grille & Register -Removable Core

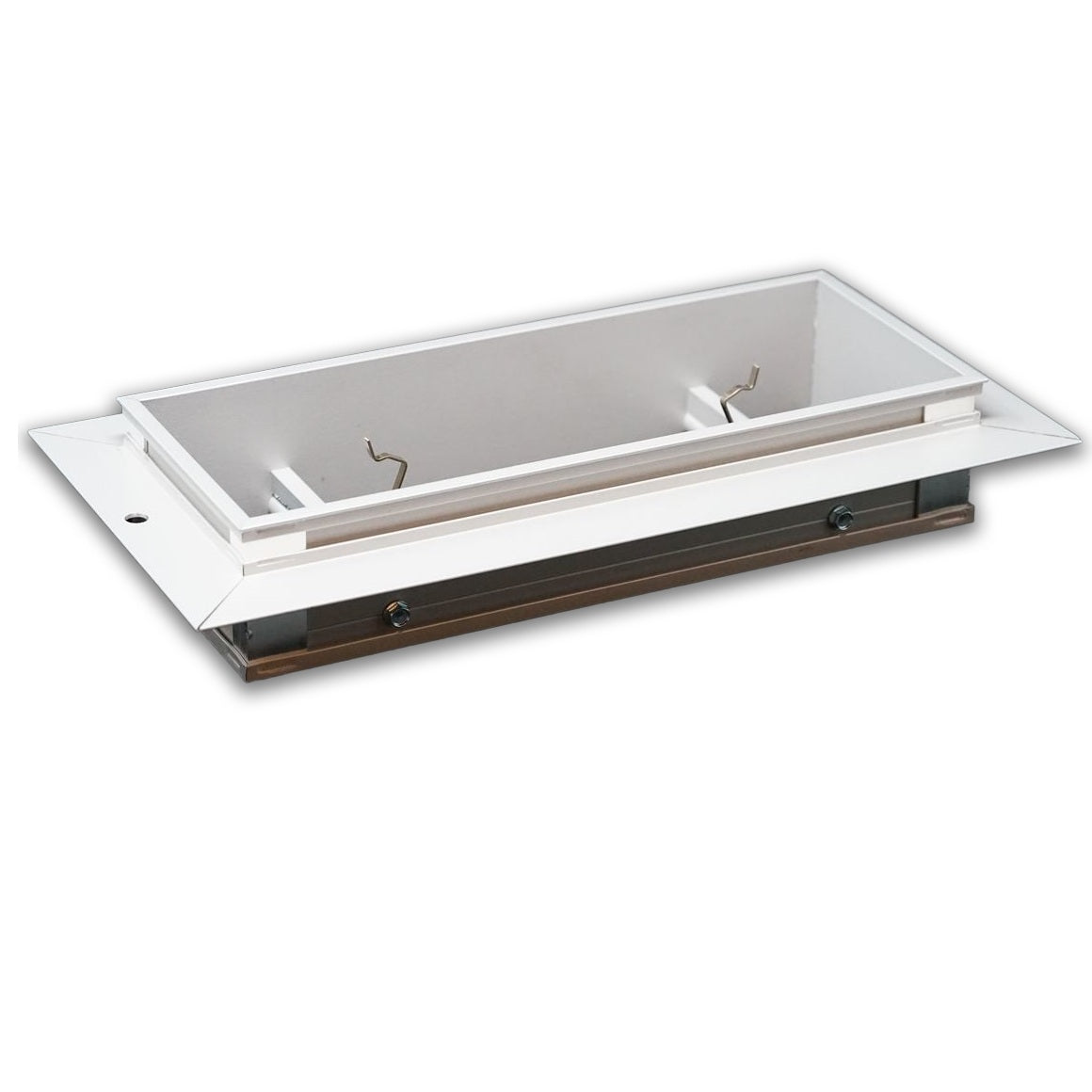

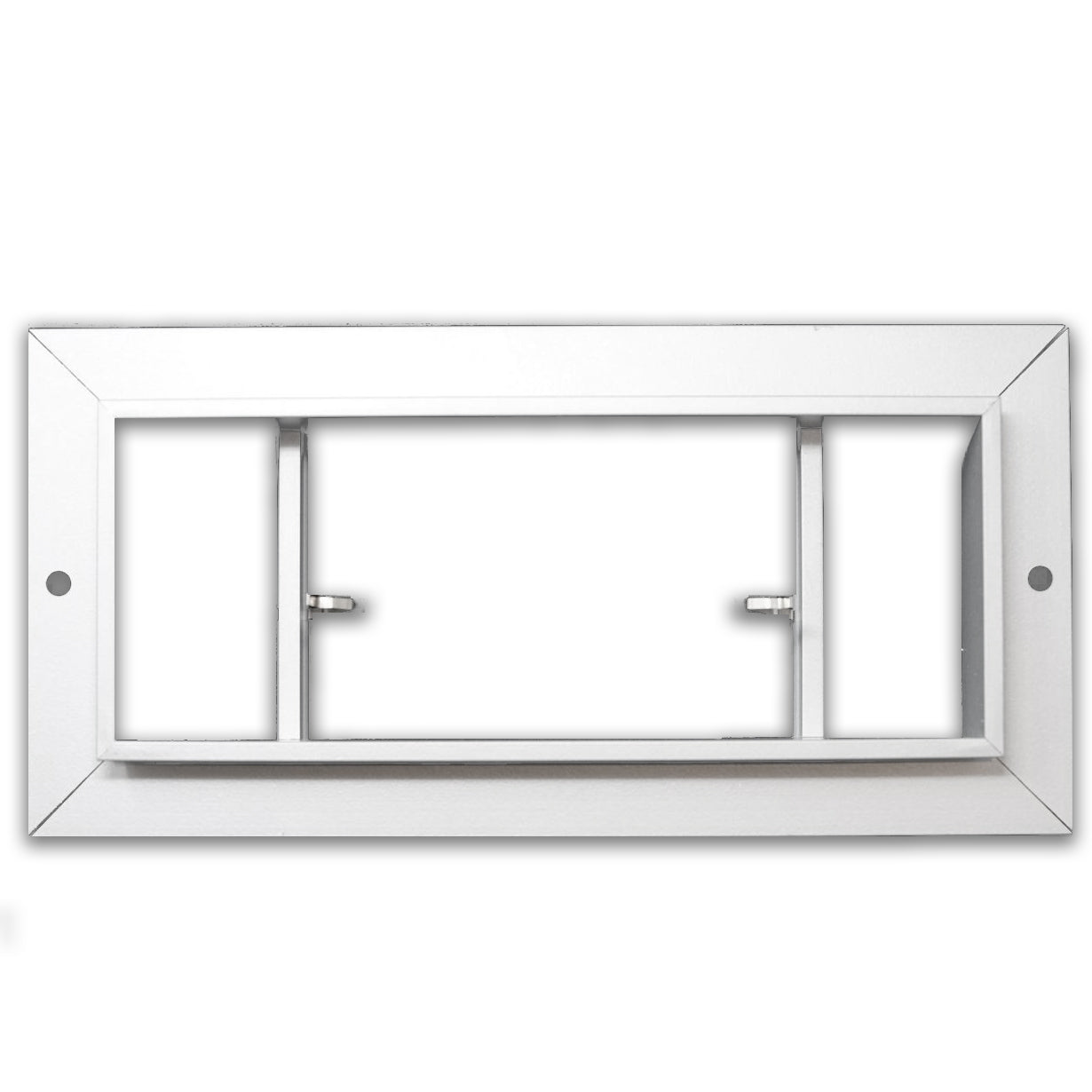

Hidden flange frame designed to be installed BEHIND drywall
- Fully extruded aluminum construction for a stylish built-in look
- Fixed blades designed for long straight air throws
- Sections longer than 84” are joined together for continuous appearance with the aligning pins provided
- Available on 1/2” increments as standard
- Custom sizes available, but extra charge may apply
- Durable powder coat painted finish; Available in White, Silver, Brown, Mill or Black*
- Plaster finishing is the responsibility of the installer
Schematics & Dimensions
Hidden Flange Bar Linear Register
Hidden Flange Bar Linear Air Return
Finish Options
Mill
- Unpainted bare aluminum
- Minor imperfections from the extruding process
- Light oil on surface
- Recommended if to be professionally powder coated by others
White
- Durable high quality powdercoat painted finish
- True white, semi gloss finish
Brown
- Durable high quality powdercoat painted finish
- Dark brown for rich appearance
Silver
- Durable high quality powdercoat painted finish
- Metallic aluminum paint to appear similar to clear anodized
- Best color to order if product is to be field painted
Flat Black (Custom +30%)
(Increases Price 30%)
- Durable high quality powdercoat painted finish
- Flat Black on of the most versatile finishes blends well in both modern and classic homes.
Blade Styles
| No Damper | With Damper |
|
|
|
|
|
|
|
|
|
|
|
|

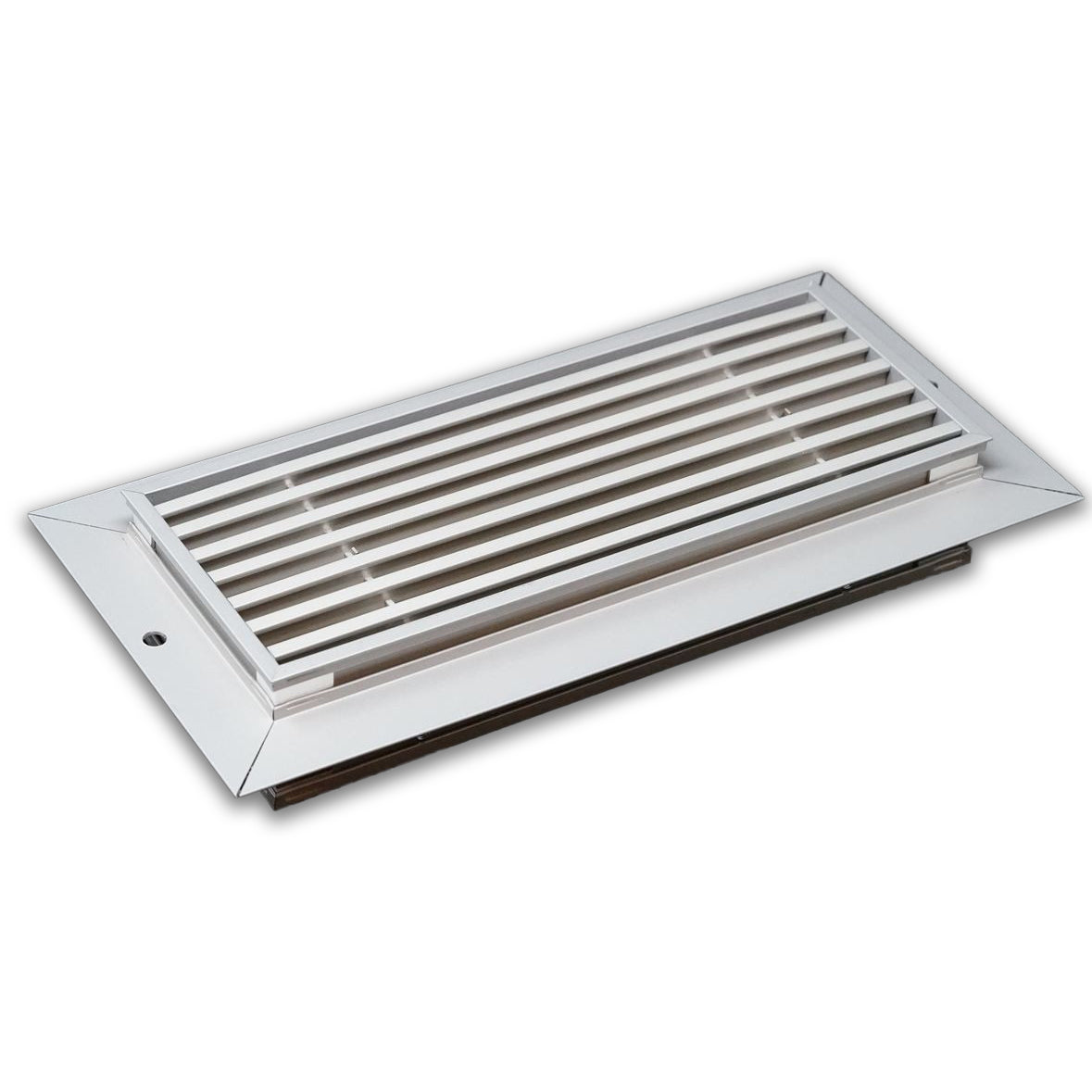

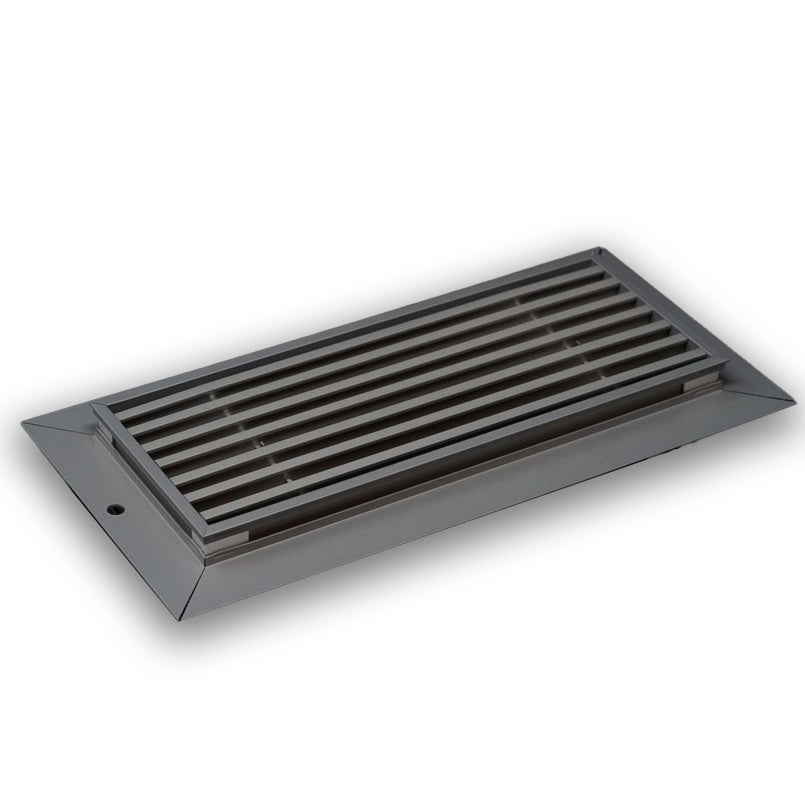

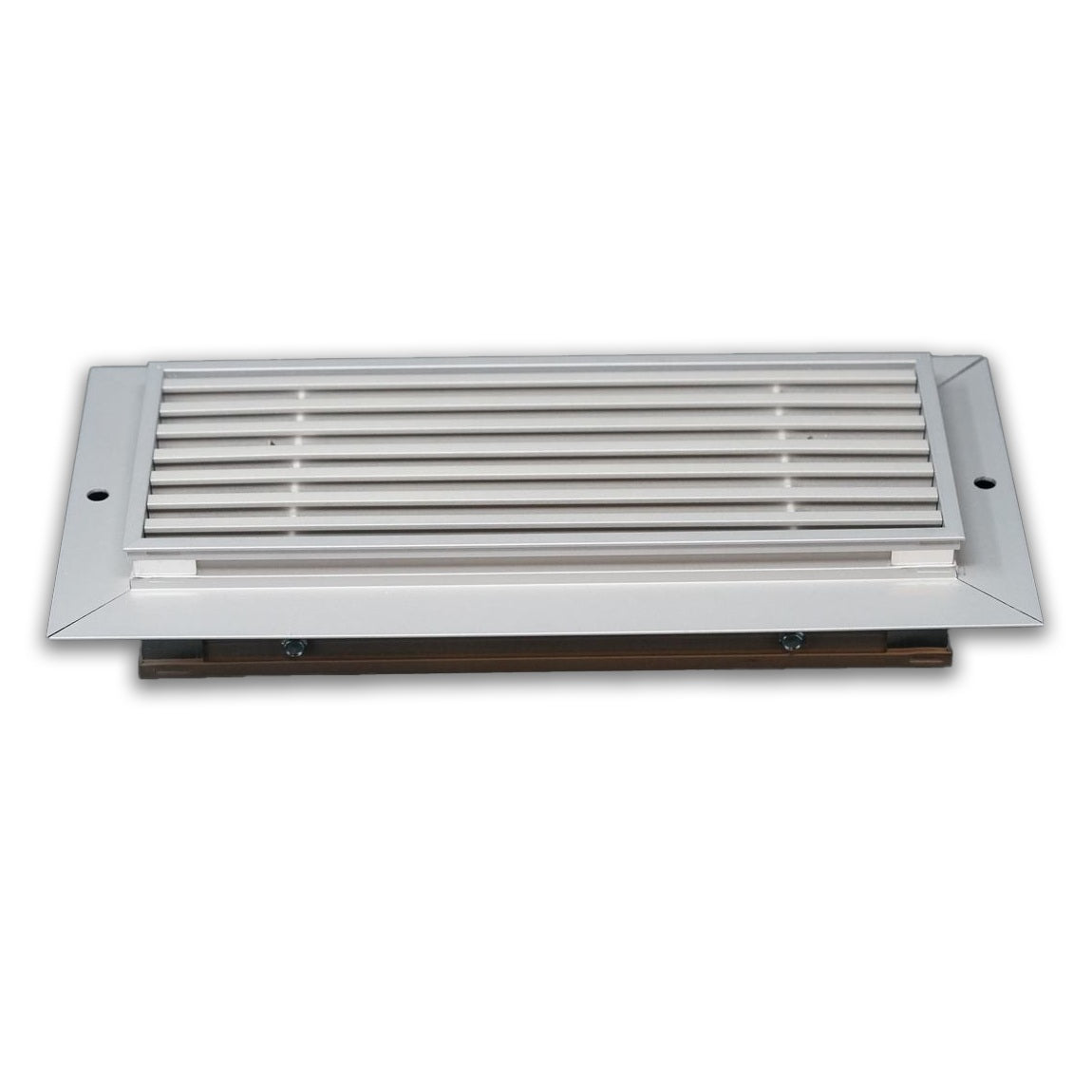

Blade Options & Damper Details
Additional Rules & Details:
- Most Common Blade Type is -00-
- Depth Required without damper is 3-11/16"
- Depth Required with damper is 2"
- Damper is controlled using a flat head screwdriver. Location of "Operator" is outlined in the schematic drawing above
