Basketweave Design Vent Cover - Made to Order Collection
A classic geometric design style from our Studio Collection. This design blends a traditional and modern aesthetic, creating a design that is versatile. Available in 30+ sizes, 2 materials, 3 thicknesses, 6 colors, and optional mounting holes and underside lip.
The Basketweave Design is available in six colors: Oil-Rubbed Bronze, Black, Sun Gold, White, Silver and Gray. The Gray steel grille can be easily painted any color to match your decor (we recommend paint made for metal and not a latex paint).
Laser Cut Aluminum & Steel Details:
- Available in three thicknesses: 1/8", 3/16" and 1/4"
- Aluminum 1/8” is not recommended for floor installation.

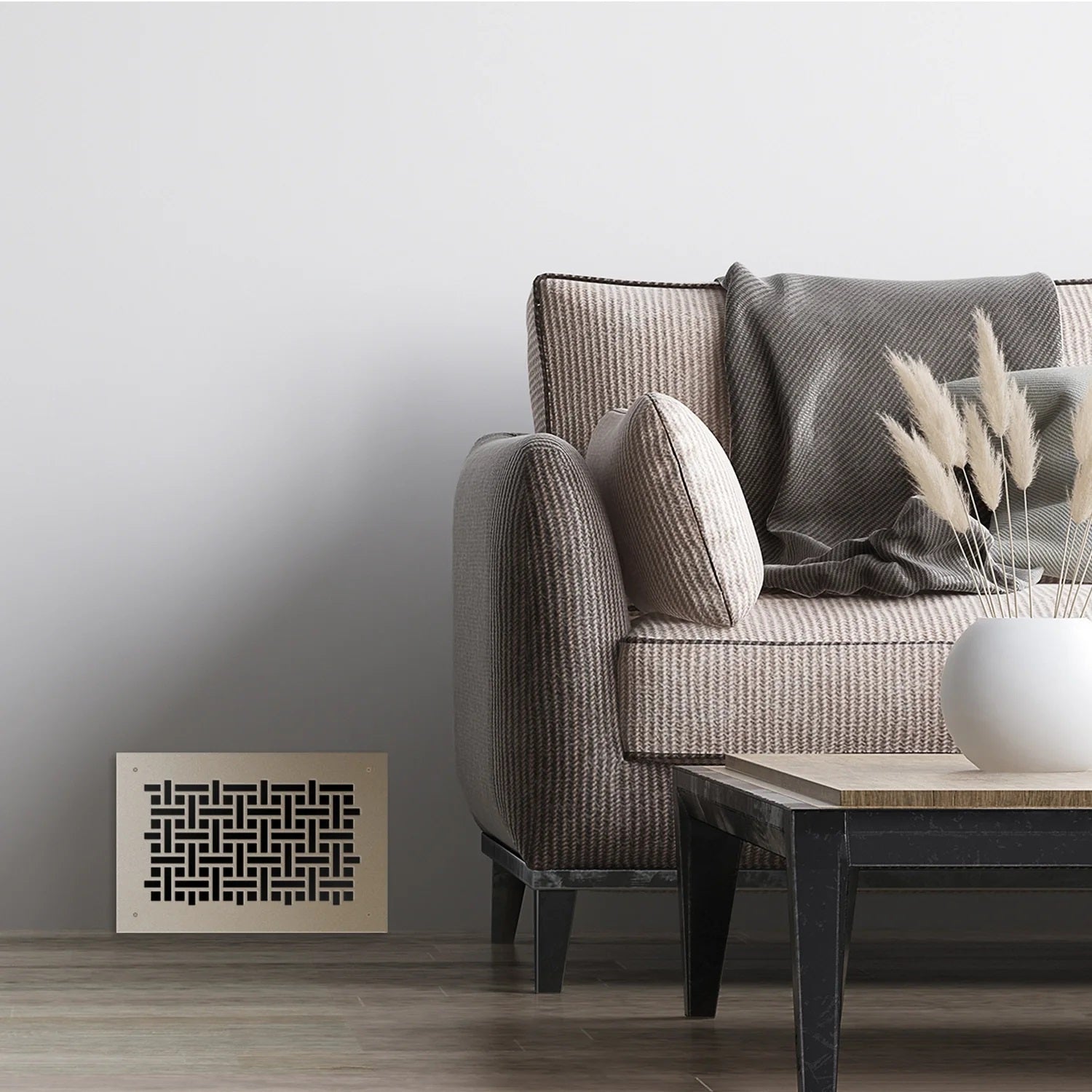

Well suited for both modern and traditional spaces. Available with optional mounting holes and underside lip.
Available Materials
| Aluminum | Steel |
|---|---|
| Crafted from premium quality aluminum | Crafted from premium quality steel |
| Lighter in weight than laser cut steel | Heavier than laser cut aluminum |
| Ideal for wall and ceiling installations | Ideal for floor, wall, and ceiling installations |
| Available in 3/16" thickness | Available in 1/8" and 3/16" thicknesses. 1/4" thickness is available by special order. |
| Rust-proof even in wet environments | Durable powder coat on both sides seals out rust |
Available Finishes

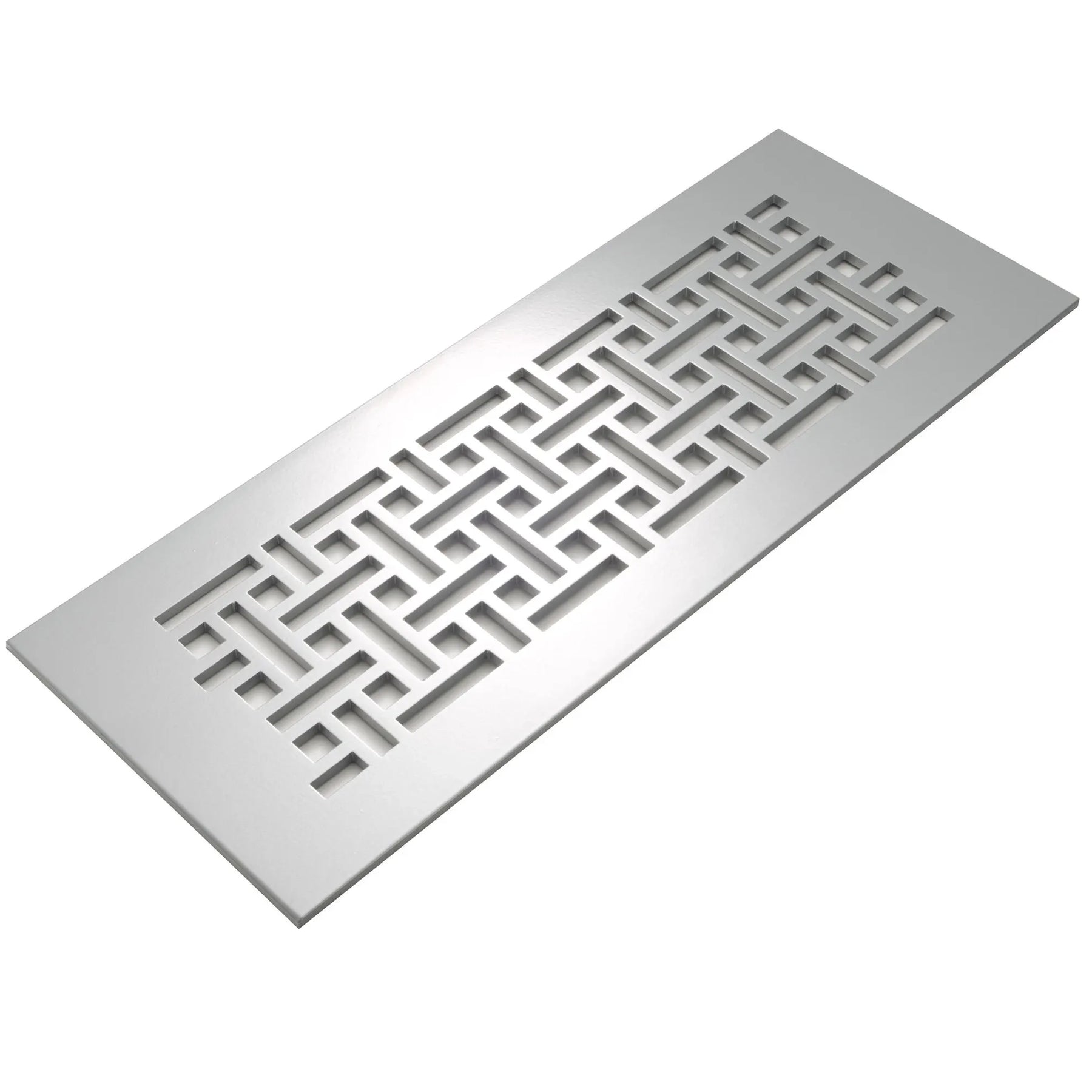

Silver
|

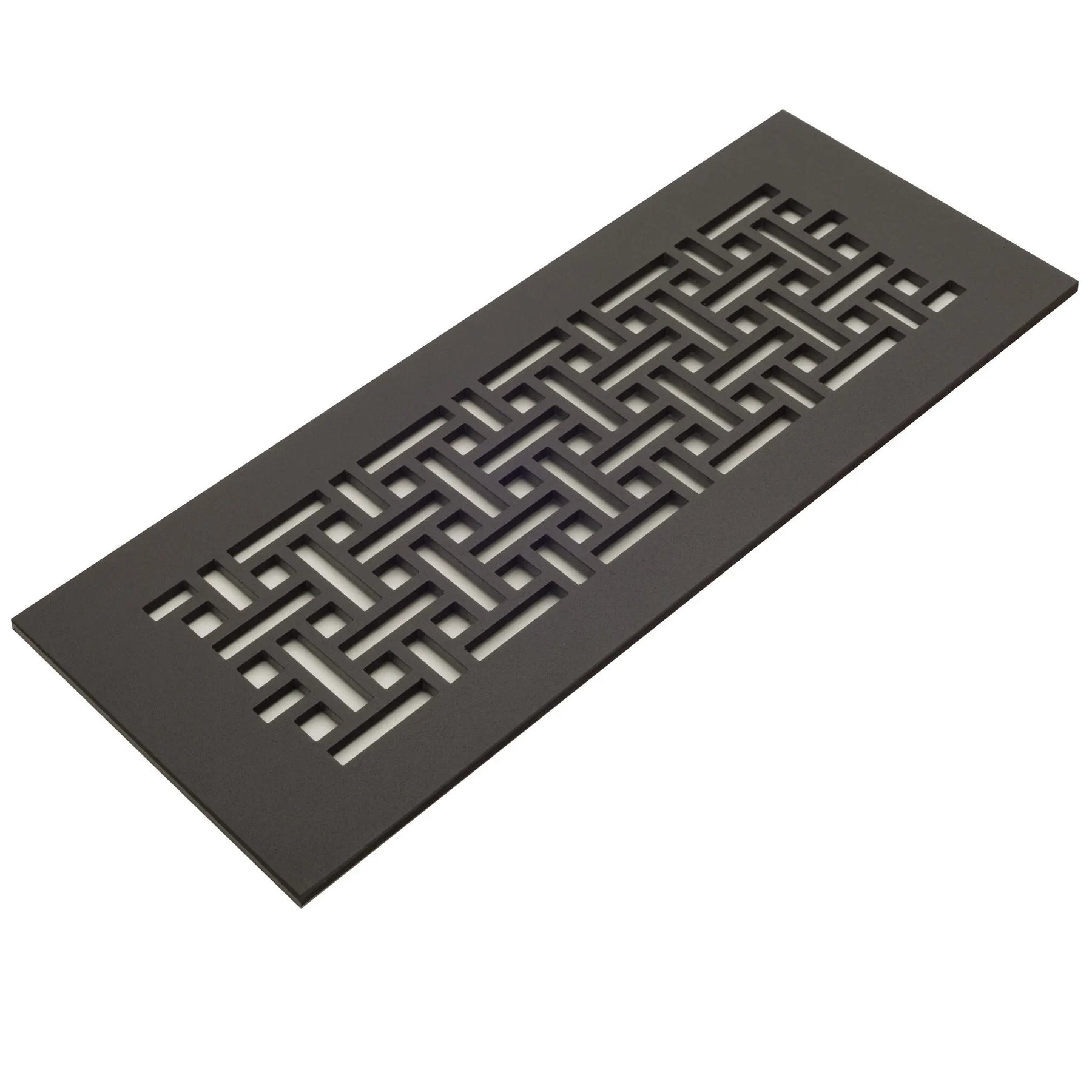

Oil Rubbed Bronze
|

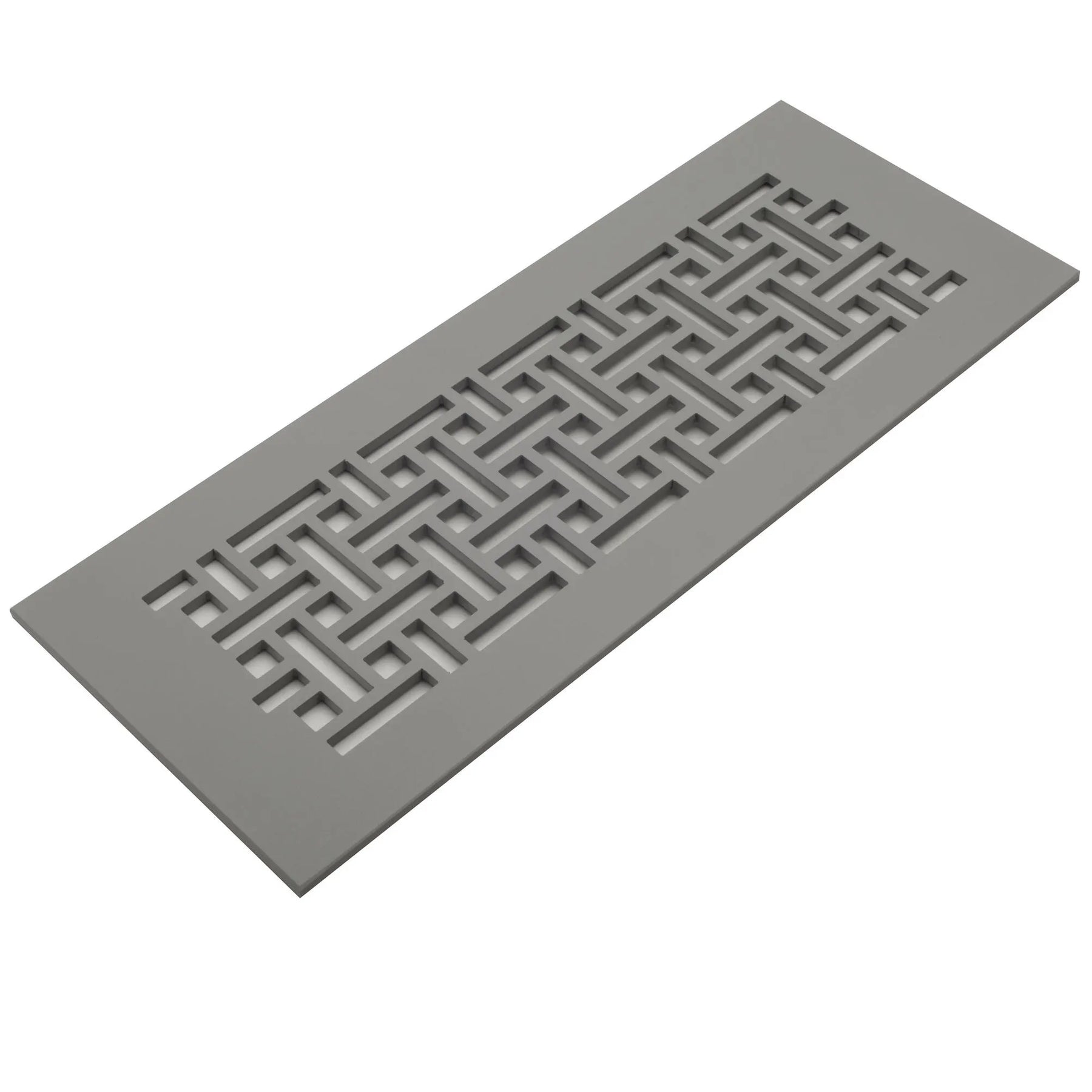

Gray - Paintable
|

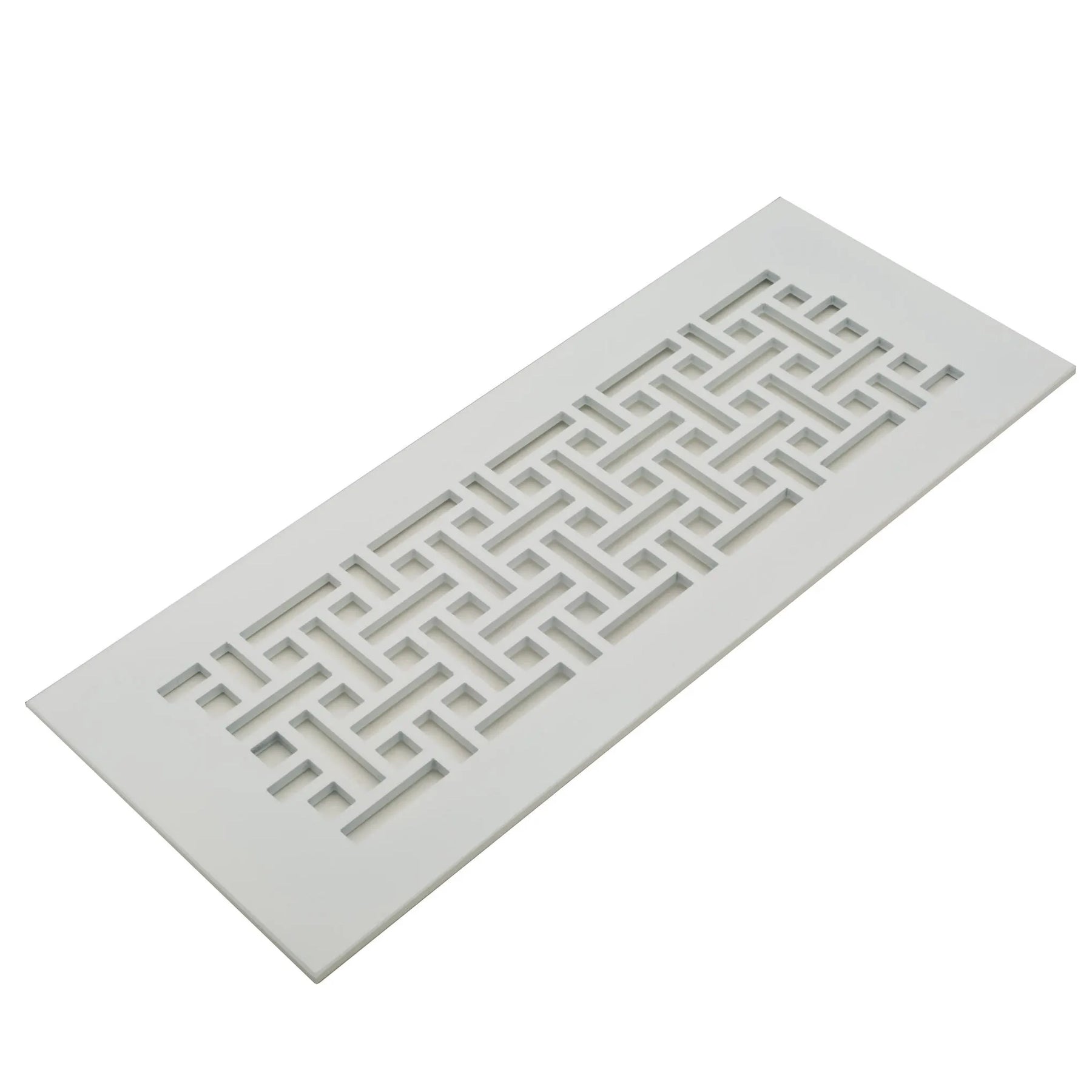

White
|

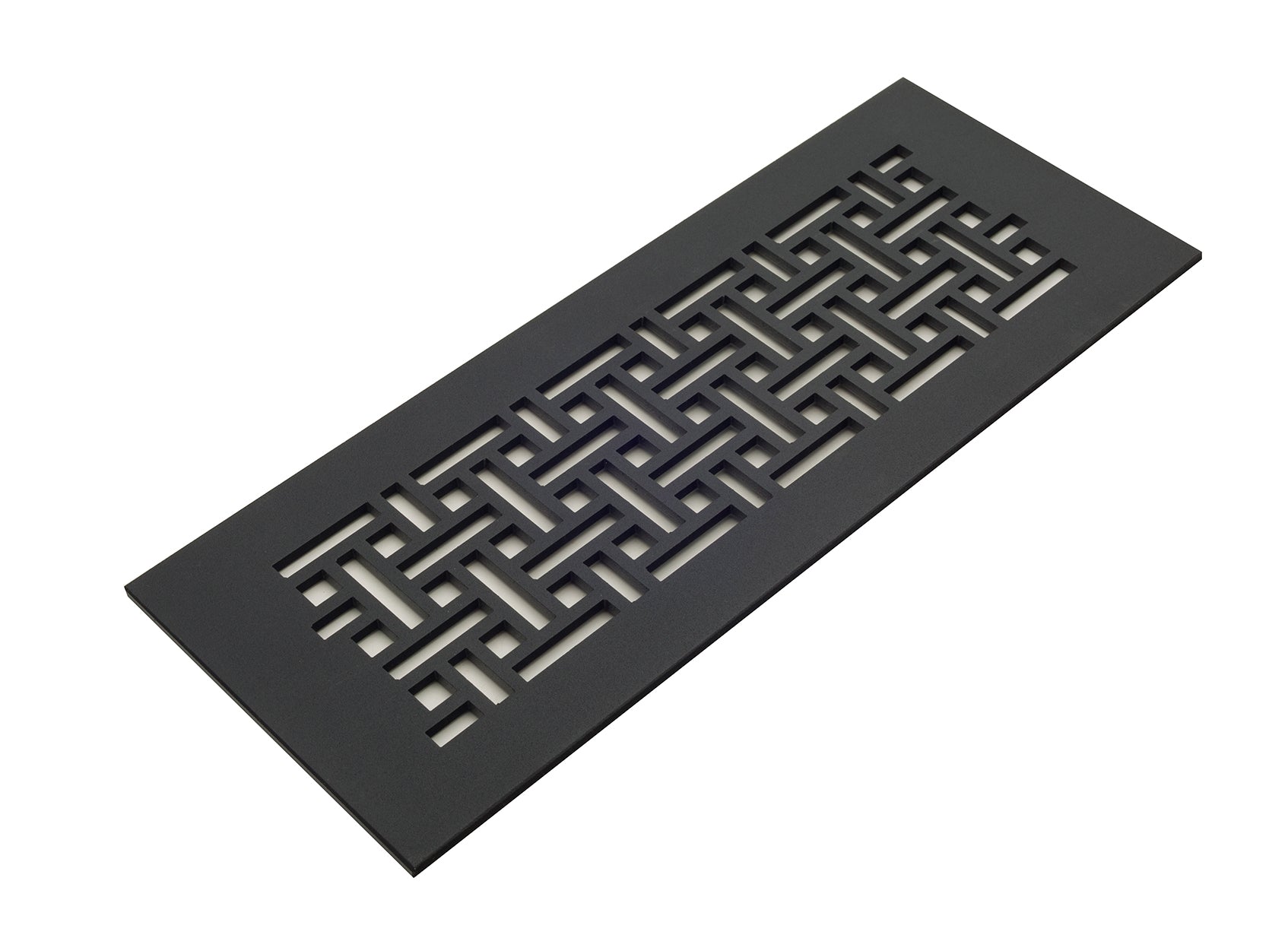

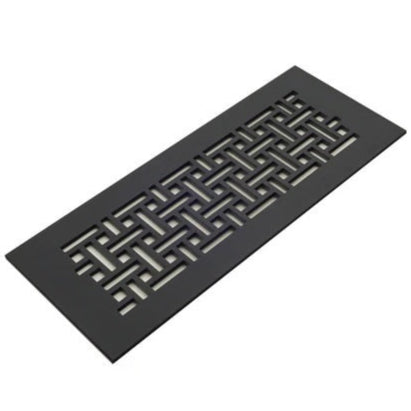

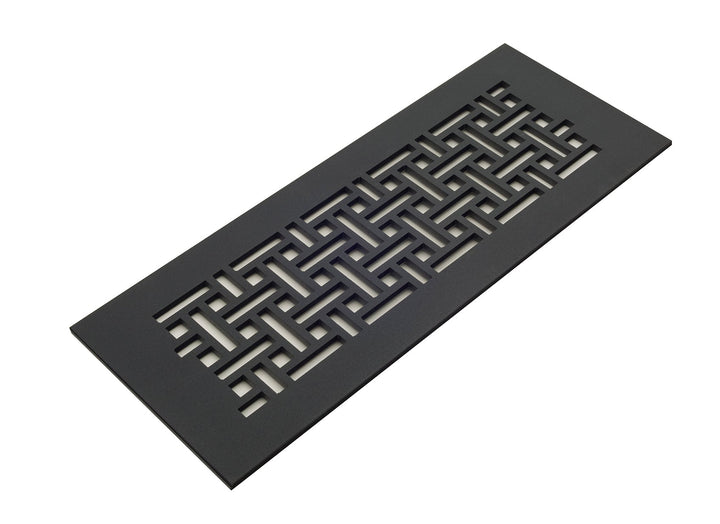

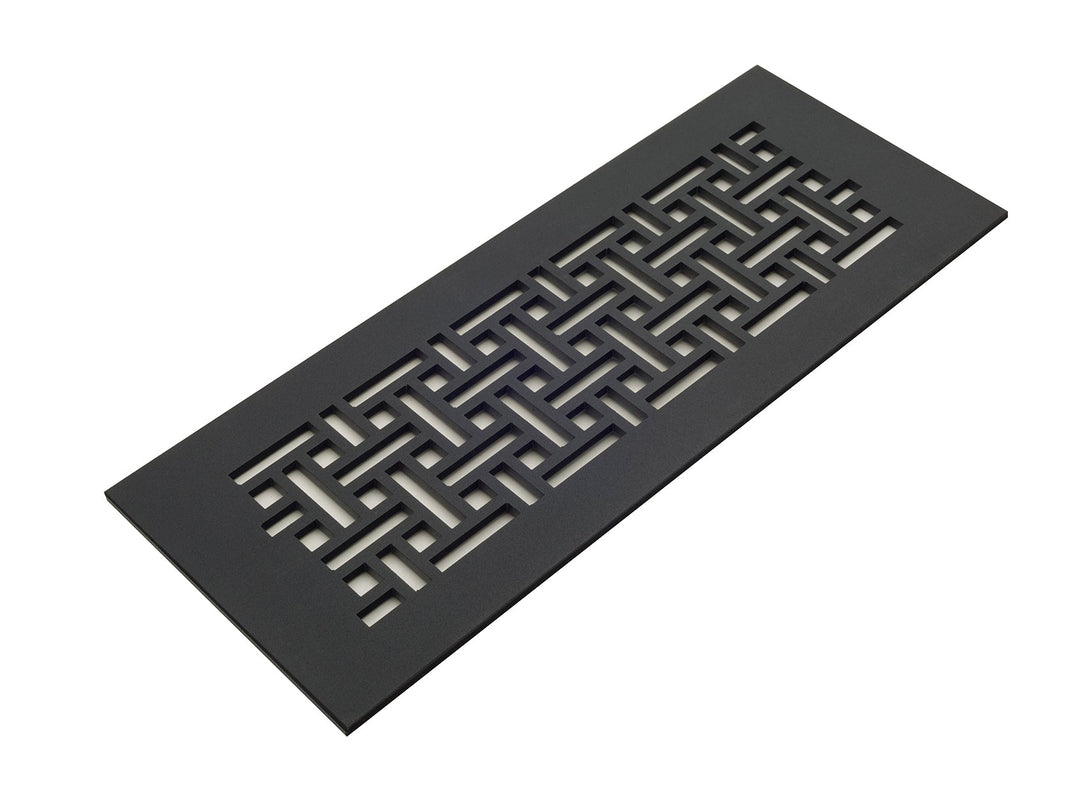

Black
|

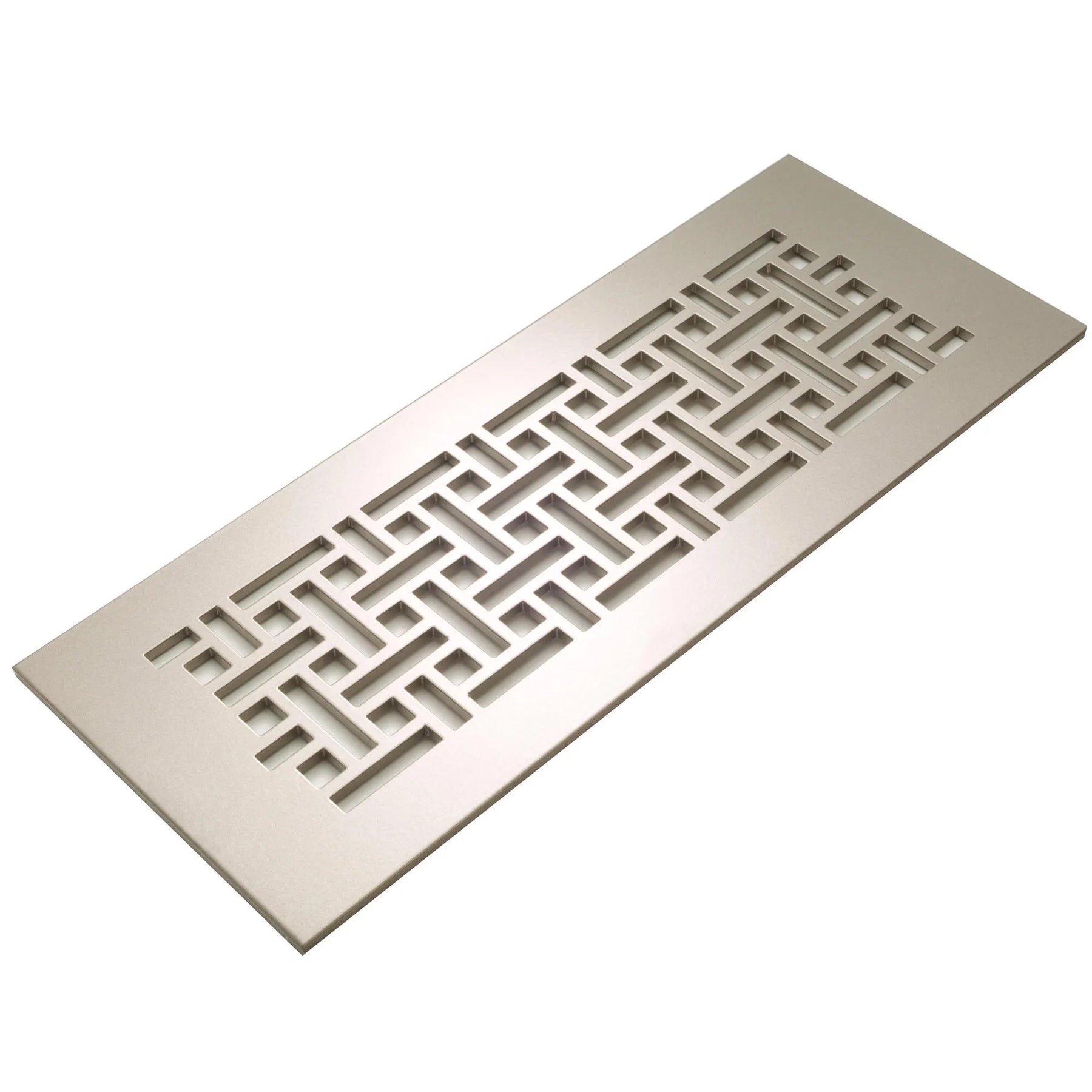

Champagne Bronze
|

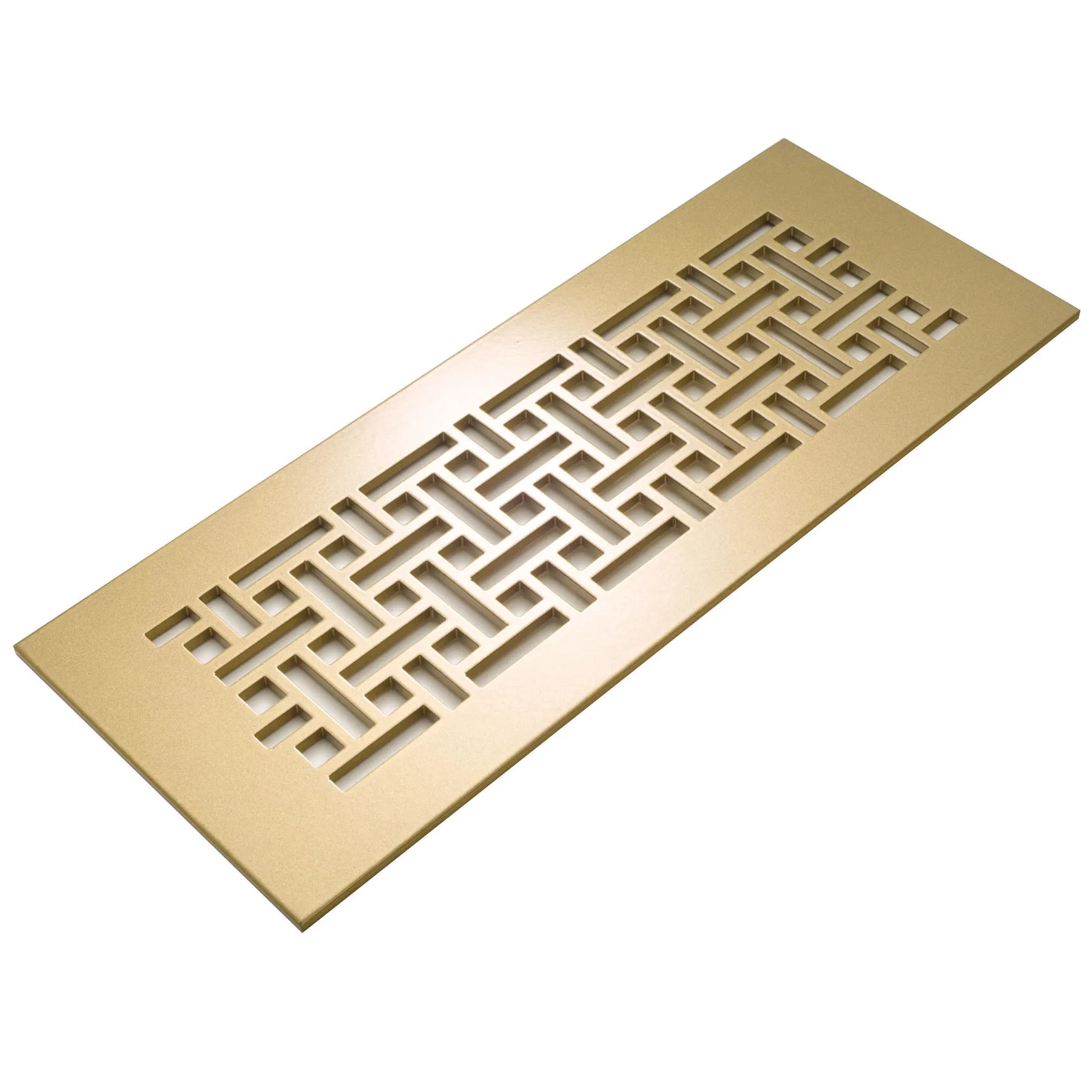

Sun Gold
|

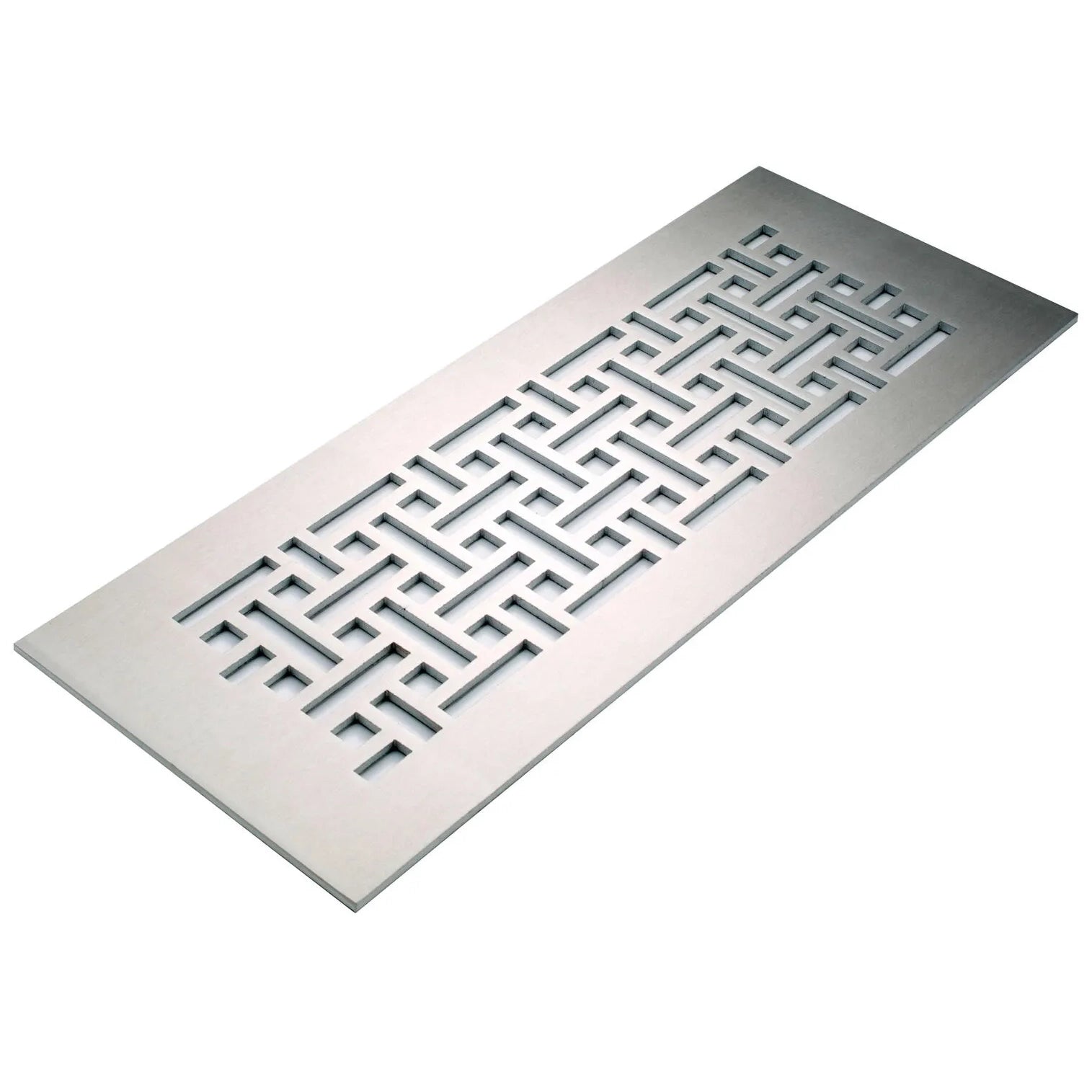

Satin Nickel
|
Optional Underside Lip
When do you need an underside lip?
If the grille is being used for a floor installation, then you may choose an Underside Lip to hold the grille in place. If you choose it without an Underside Lip for floor installation, then you need to either (1) recess the grille into the floor so it’s flush with the floor or (2) get the grille with mounting holes to hold it in place.
If you choose an Underside Lip for a floor installation, do you still need mounting holes?
If you choose a grille with an Underside Lip, you may still want mounting holes. In high traffic areas, mounting holes keep the grille securely in place. Mounting holes also deter children from lifting or removing the grille from its opening. Mounting holes are not required for grilles with an Underside Lip (for floor installation), but may be preferred.
When is an Underside Lip for floor installation not recommended?
An Underside Lip is not recommended when your opening is not evenly cut, as an Underside Lip may not fit.
Schematics & Specifications
- Duct Size: 12.00” x 4.00”
- Outside Dimensions: 14.00” x 5.50”
- Design Dimensions: 11.63” x 3.62”
- Made in USA
| Duct Size | Overall Size | Duct Size | Overall Size |
|---|---|---|---|
| 2¼" x 10" | 3½" x 12" | 2¼" x 12" | 3½" x 14" |
| 2¼" x 14" | 3½" x 16" | 4" x 8" | 5½" x 10" |
| 4" x 10" | 5½" x 12" | 4" x 12" | 5½" x 14" |
| 4" x 14" | 5½" x 16" | 6" x 6" | 8" x 8" |
| 6" x 10" | 8" x 12" | 6" x 12" | 8" x 14" |
| 6" x 14" | 8" x 16" | 6" x 22" | 8" x 16" |
| 6" x 24" | 8" x 26" | 6" x 30" | 8" x 32" |
| 8" x 8" | 10" x 10" | 8" x 10" | 10" x 12" |
| 8" x 12" | 10" x 14" | 8" x 14" | 10" x 16" |
| 9" x 20" | 11" x 22" | 10" x 10" | 12" x 12" |
| 10" x 14" | 12" x 16" | 10¼" x 12¼" | 12" x 14" |
| 12" x 12" | 14½" x 14½" | 12" x 14" | 14½" x 16½" |
| 12" x 24" | 14½" x 26½" | 14" x 14" | 16½" x 16½" |
| 14" x 18" | 16½" x 20½" | 18" x 18" | 20½" x 20½" |
| 18" x 30" | 20½" x 32½" | 24" x 24" | 26½" x 26½" |
| 29-5/8" x 29-5/8" | 32" x 32" | Custom Sizes Available | |
Air Control – Louvers
Optional assemblies for air flow regulation. Installed behind grilles, these components are adjustable and do not alter airflow direction.
- Mounted inside the duct
- Operated with screwdriver or included key
- Not connected to grille
- Foam strip included for tight fit
