Aluminum Bar Linear Vent Cover with Damper for Floor Installation (Max 8" High)

SKU: DABLDF-8X2-Mill

Manufacturing time is 2 to 4 weeks.

An extruded aluminum bar linear register built for floor installation, with an integral opposed-blade damper. Every unit is made to order: choose the opening size, one of six blade profiles, a mounting method, and a finish. Lengths run to 84" in a single piece, and longer runs join with aligning pins for a continuous line.

Integral Damper

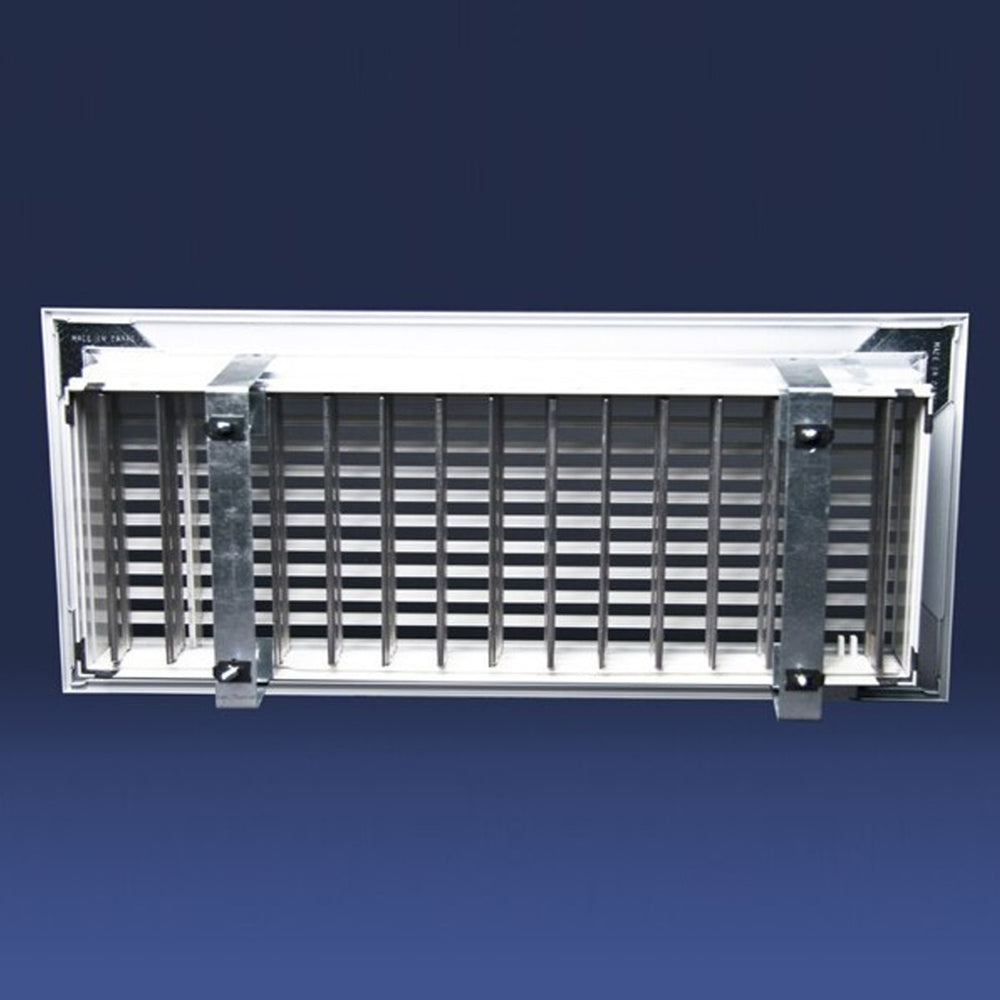

An opposed-blade damper is built in and operated with a flat head screwdriver from the face — so you can balance or shut off a floor run without lifting the register or reaching into the duct.

Six Blade Profiles

From the standard 0° deflection through 15° and 30° throws, a fine 1/8" air-flow blade, a pencil-proof profile, and a heel-proof blade for floors that take traffic in hard shoes. Five of the six add nothing to the price.

Made to Your Opening

Eighty-four stocked size combinations — five opening heights from 2" to 4" and nineteen lengths from 8" to 84". Built to order rather than cut down from a standard part.

Extruded Aluminum

Extruded rather than stamped, so the bars hold their line across a long run and the register will not rust in a floor where it collects whatever the room does.

Three Mounting Methods

Screws, spring clips, or concealed fastening — picked in Custom Options rather than bought as a separate part. Spring clips suit floor and sill work specifically.

Paint It or Leave It

Silver powder coat is the one to order if the register will be field painted; Mill is bare aluminum for a shop that will powder coat it properly; White is a finished true-white semi-gloss.

Choose your blade style

Blade style is set in Custom Options above, not by the size selector. It changes both how the register looks and how it throws air. –00– is the most commonly ordered.

Blade style 00: straight bars set at zero degrees with 1/5 inch spacing — –00– 0° deflection, 1/5" blade
*Most common*

–01– Pencil proof, 1/4" blade

Blade style 15: bars angled at fifteen degrees with 1/5 inch spacing — –15– 15° deflection, 1/5" blade

Blade style 30: bars angled at thirty degrees with 1/5 inch spacing — –30– 30° deflection, 1/5" blade

Blade style 82: fine 1/8 inch blades set at zero degrees for maximum air flow — –82– 0° air flow, 1/8" blade

Blade style 84: heel-proof 1/8 inch blades at half inch spacing — –84– Heel proof, 1/8" blade at 1/2" spacing
*Paid upgrade*

Diagram comparing blade type profiles and their spacing in section — Blade profiles and spacing in section. View full size

Choose your mounting

Also set in Custom Options. Because this is a floor register, all three methods apply — but they are not interchangeable if you later move the unit to a wall or ceiling.

Mounting style A: countersunk screw holes through the face of the register — **A — Mounting screws**
Ceiling, wall, sill, and floor

Mounting style B: spring clips that grip the inside of the duct — **B — Spring clips**
Sill and floor only

Mounting style C: concealed brackets that fix the register with no visible fasteners — **C — Concealed fastening**
Ceiling, wall, sill, and floor — paid upgrade

Spring clips are not rated for ceiling or wall use. If there is any chance this register moves to a wall or ceiling later, specify screws or concealed fastening instead.

Sizing and depth

Order by the opening size. The register face adds 1-11/16" to both the height and the length, so it overlaps the opening and sits flush.

Opening heights: 2", 2-1/2", 3", 3-1/2", 4"
Opening lengths: 8" to 84", in nineteen steps
Depth required: 2-11/16"
Maximum single piece: 84". Longer runs are joined in sections with aligning pins supplied, for a continuous appearance.

Schematic drawing of the bar linear register showing overall face dimensions against the opening — Face dimensions against the opening. View full size

Opening height	Overall height	Lengths available
2"	3-11/16"	8" to 84"
2-1/2"	4-3/16"	8" to 84"
3"	4-11/16"	8" to 84"
3-1/2"	5-3/16"	8" to 84"
4"	5-11/16"	8" to 22" only

The 4" opening height is offered in short lengths only — up to 22". For a taller register in a long run, contact the sales team.

Damper operation

The damper is adjusted with a flat head screwdriver through the face of the register. On a floor model the operator sits as shown in Detail B, which is also the arrangement used for the –01– and –84– blade cores and for removable models.

Allow 2-11/16" of depth below the opening for the register and damper assembly.

Detail B drawing showing the damper operator position on a floor model register — Detail B — damper operator position.

Detail B applied to the 01 pencil-proof blade core — Detail B with the –01– core

Detail B applied to the 84 heel-proof blade core — Detail B with the –84– core

Finishes

Mill

Unpainted bare aluminum
Minor imperfections from the extruding process
Light oil on the surface
Order this if it will be professionally powder coated by others

Silver — paintable

Durable powder coat finish
Metallic aluminum paint, close to clear anodized in appearance
The best color to order if the register will be field painted

White

Durable powder coat finish
True white, semi-gloss

Specifications

MaterialExtruded aluminum
InstallationFloor
DamperIntegral opposed blade, operated with a flat head screwdriver
Blade styles–00–, –01–, –15–, –30–, –82–, –84– (set in Custom Options)
MountingA screws, B spring clips, or C concealed fastening (set in Custom Options)
FinishesMill, Silver (paintable), White
Opening heights2", 2-1/2", 3", 3-1/2", 4"
Opening lengths8" to 84"
Overall face sizeOpening plus 1-11/16" in both directions
Depth required2-11/16"
Maximum single piece84"; longer runs joined with aligning pins
ProductionMade to order — see Custom Options for lead time
