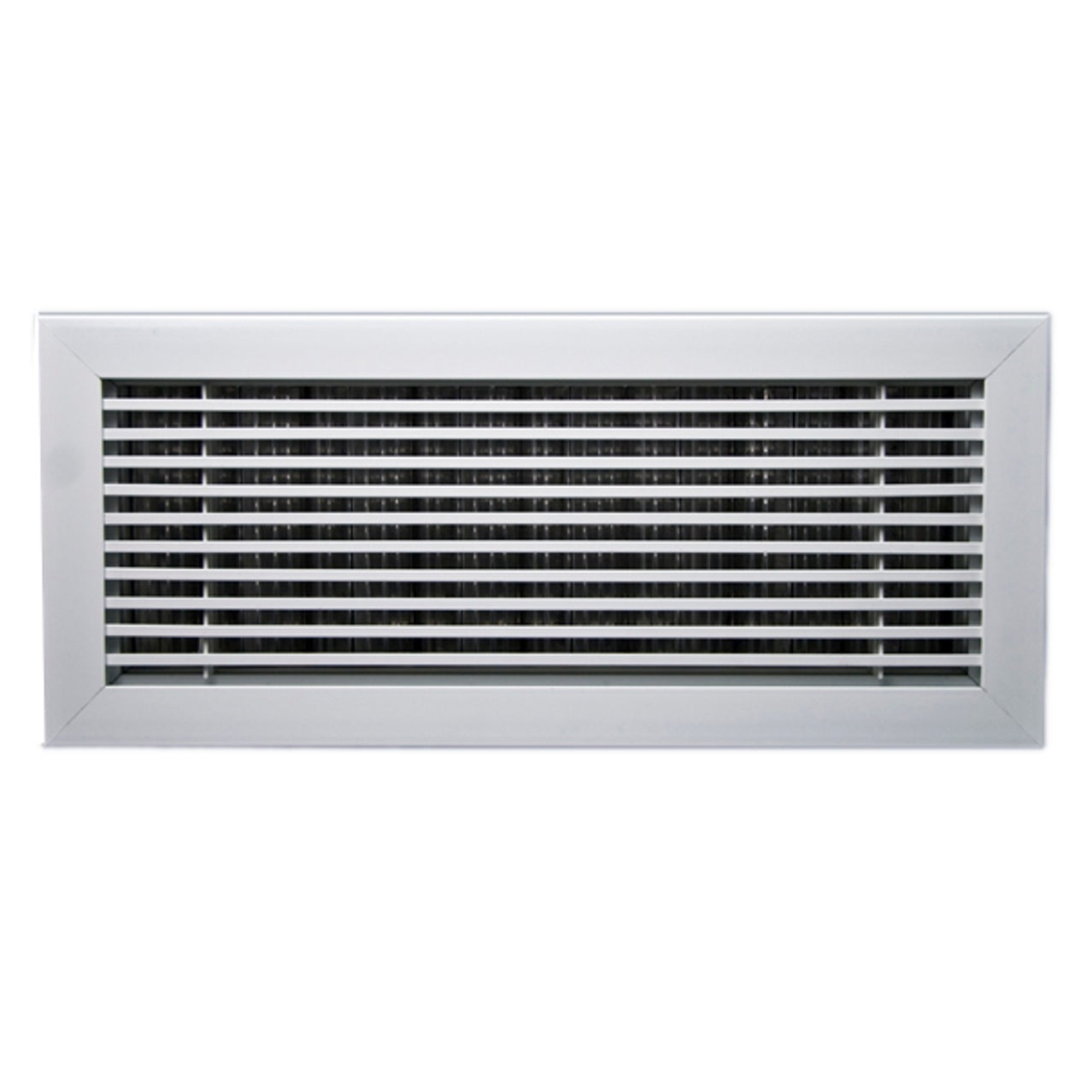

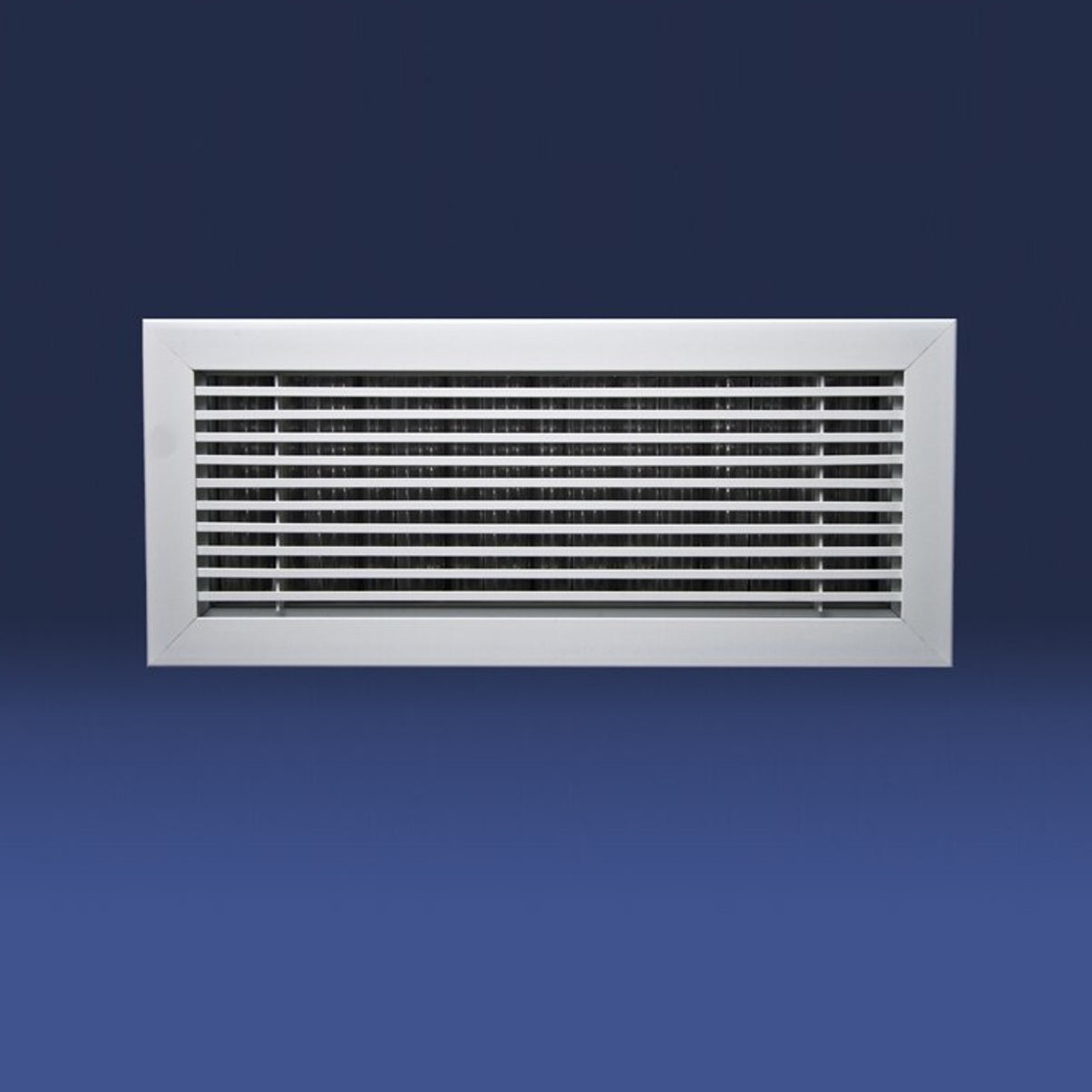

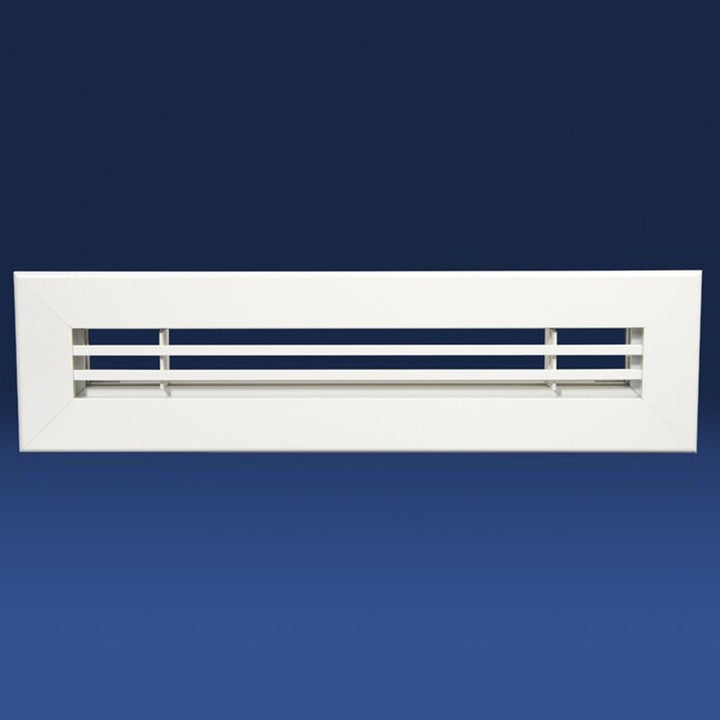

Aluminum Bar Linear Vent Cover with Damper for Floor Installation (Max 8" High)

SKU: DABLDF-8X2-Mill

Manufacturing time is 4 to 5 weeks.

Wall or Ceiling Bar Linear Register

Schematic - Drawing

Floor Bar Linear Register

Finish Options

Mill

Unpainted bare aluminum
Minor imperfections from the extruding process
Light oil on surface
Recommended if to be professionally powder coated by others

Silver

Durable high quality powdercoat painted finish
Metallic aluminum paint to appear similar to clear anodized
Best color to order if product is to be field painted

flat black aluminum bar linear vent cover

Flat Black (Custom +30%)

Durable high quality powdercoat painted finish
Flat Black on of the most versatile finishes blends well in both modern and classic homes.

Brown

Durable high quality powdercoat painted finish
Dark brown for rich appearance

White

Durable high quality powdercoat painted finish
True white, semi gloss finish

Mounting Options

Mounting Screws

Mounting Screws:

For Ceiling, Wall, Sill, and Floor Applications

Spring Clips

Spring Clips:

For Sill and Floor Applications
Not to Be Used for Ceiling and Wall Applications

Concealed Fastening

Concealed Fastening

For Ceiling, Wall, Sill, and Floor Applications

Shipping Options

Standard Shipping

4-Weeks to manufacturing time

Friday Next
Shipping

Order Saturday - Friday and Order Ships the Following Friday. (+20%)

Blade Styles

Blade Options & Damper Details

Additional Rules & Details:

Most Common Blade Type is -00-
Depth Required is 2-11/16"
Damper is controlled using a flat head screwdriver. Location of "Operator" is outlined below in the Detail A or Detail B drawings.
Detail B is used when 01 or 84 core, removable or floor model is specified.
All others use Detail A.

Detail A

Detail B

Support Spacing & Schematics

Length Restrictions and Guidelines:

Maximum 84” length in one piece. When longer than 84”, multiple sections are joined together for continuous appearance.
Aligning pins are provided.
Detail B is used when 01 or 84 core, removable or floor model is specified.
All others use Detail A.
