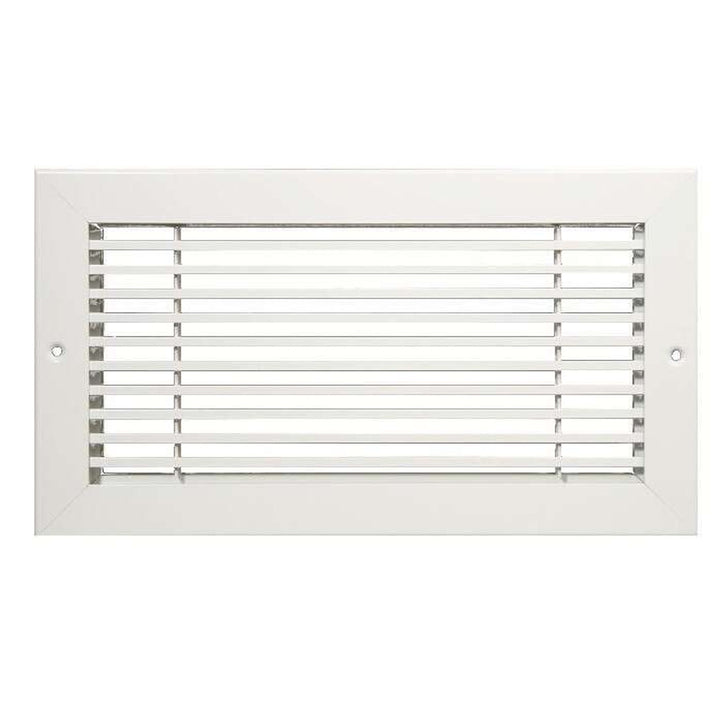

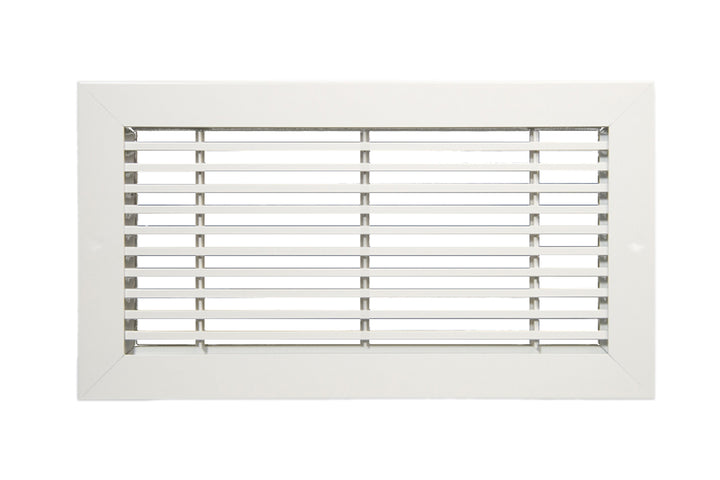

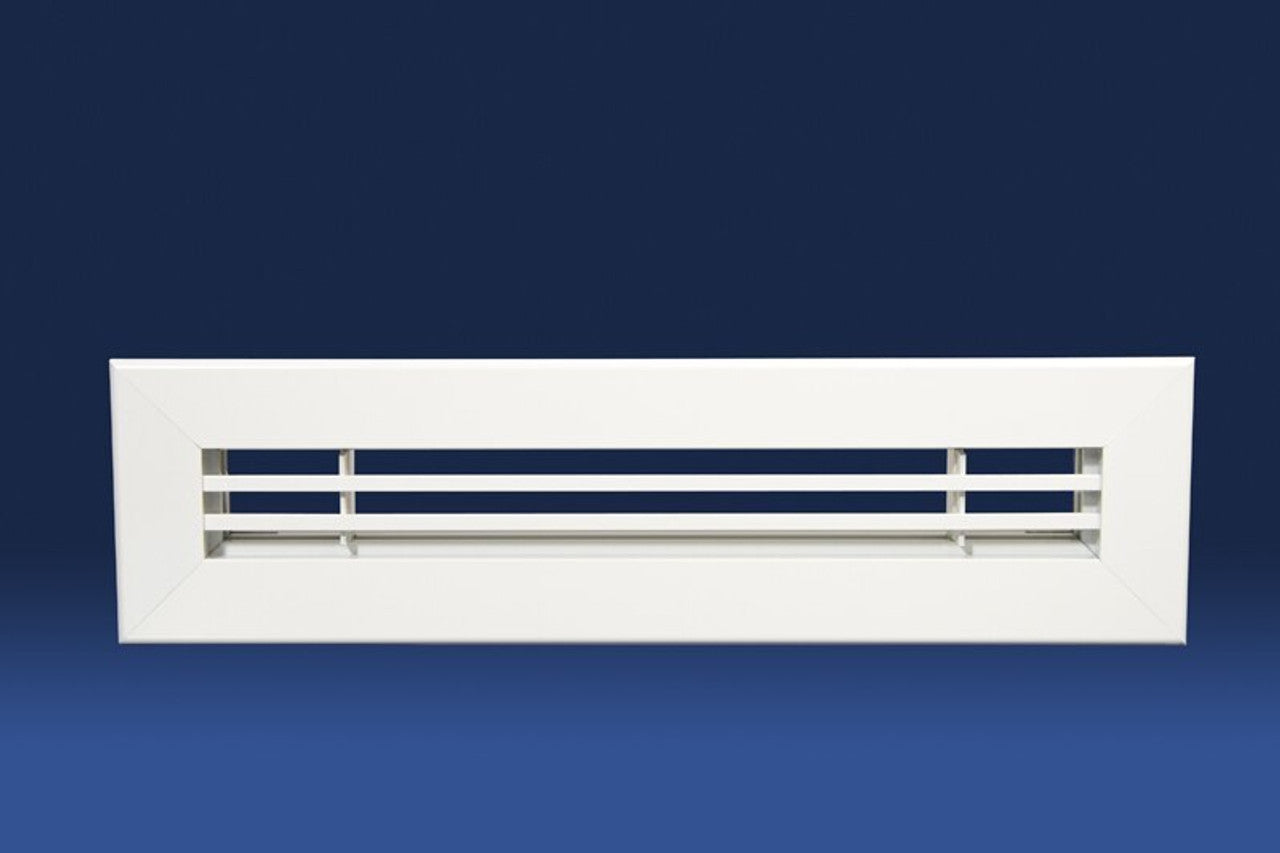

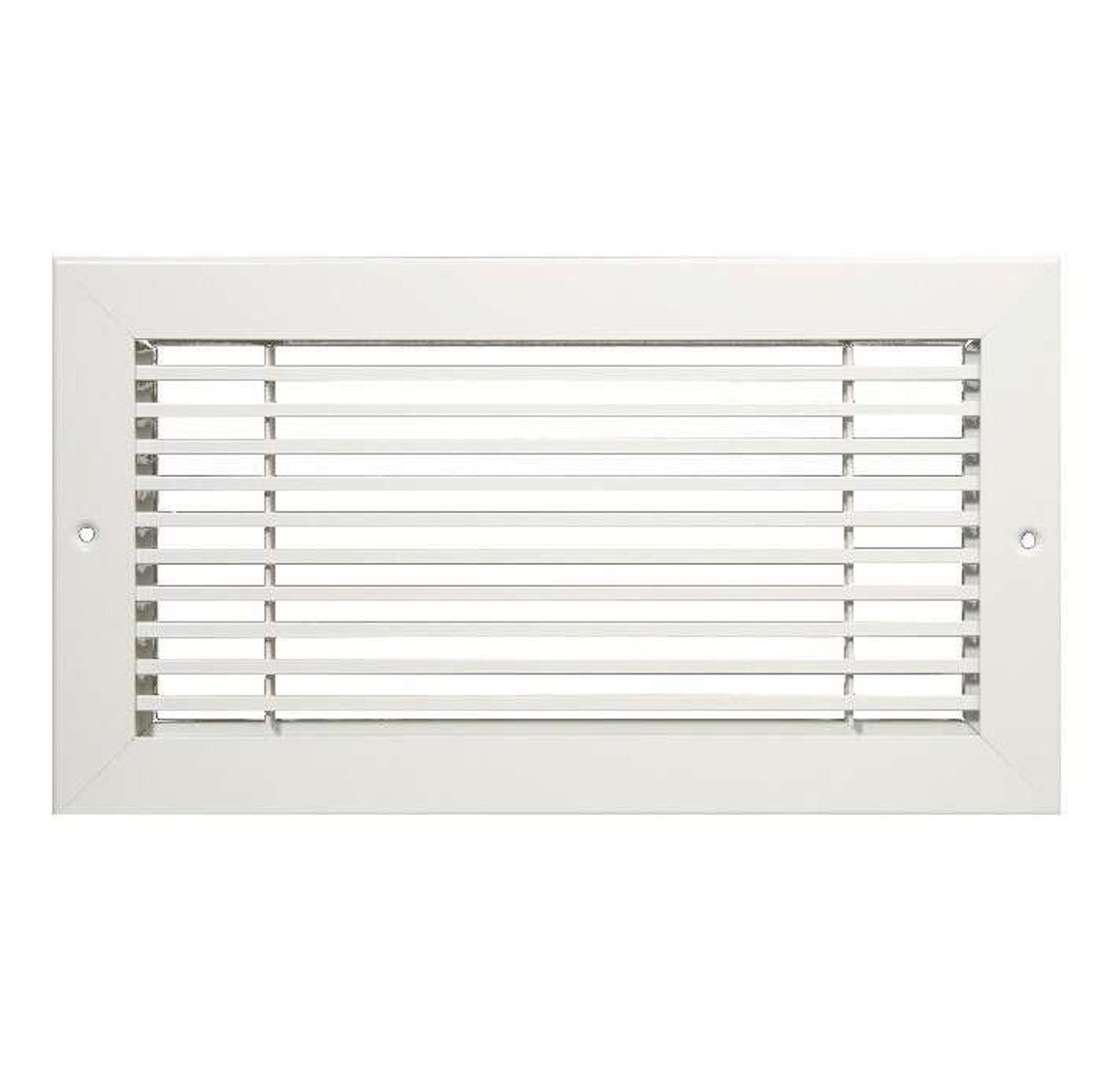

Wall or Ceiling Bar Linear Return

Schematic - Drawing

Floor Bar Linear Register

Finish Options

Mill
- Unpainted bare aluminum
- Minor imperfections from the extruding process
- Light oil on surface
- Recommended if to be professionally powder coated by others

Silver
- Durable high quality powdercoat painted finish
- Metallic aluminum paint to appear similar to clear anodized
- Best color to order if product is to be field painted

Flat Black (Custom +30%)
- Durable high quality powdercoat painted finish
- Flat Black on of the most versatile finishes blends well in both modern and classic homes.

Brown
- Durable high quality powdercoat painted finish
- Dark brown for rich appearance

White
- Durable high quality powdercoat painted finish
- True white, semi gloss finish
Mounting Options
Mounting Screws

Mounting Screws:
- For Ceiling, Wall, Sill, and Floor Applications
Spring Clips

Spring Clips:
- For Sill and Floor Applications
- Not to Be Used for Ceiling and Wall Applications
Concealed Fastening

Concealed Fastening
- For Ceiling, Wall, Sill, and Floor Applications
Shipping Options
Standard Shipping
4-Weeks to manufacturing time
Friday Next
Shipping
Order Saturday - Friday and Order Ships the Following Friday. (+20%)

Blade Styles






Blade Options & Specifications
Length Restrictions and Guidelines

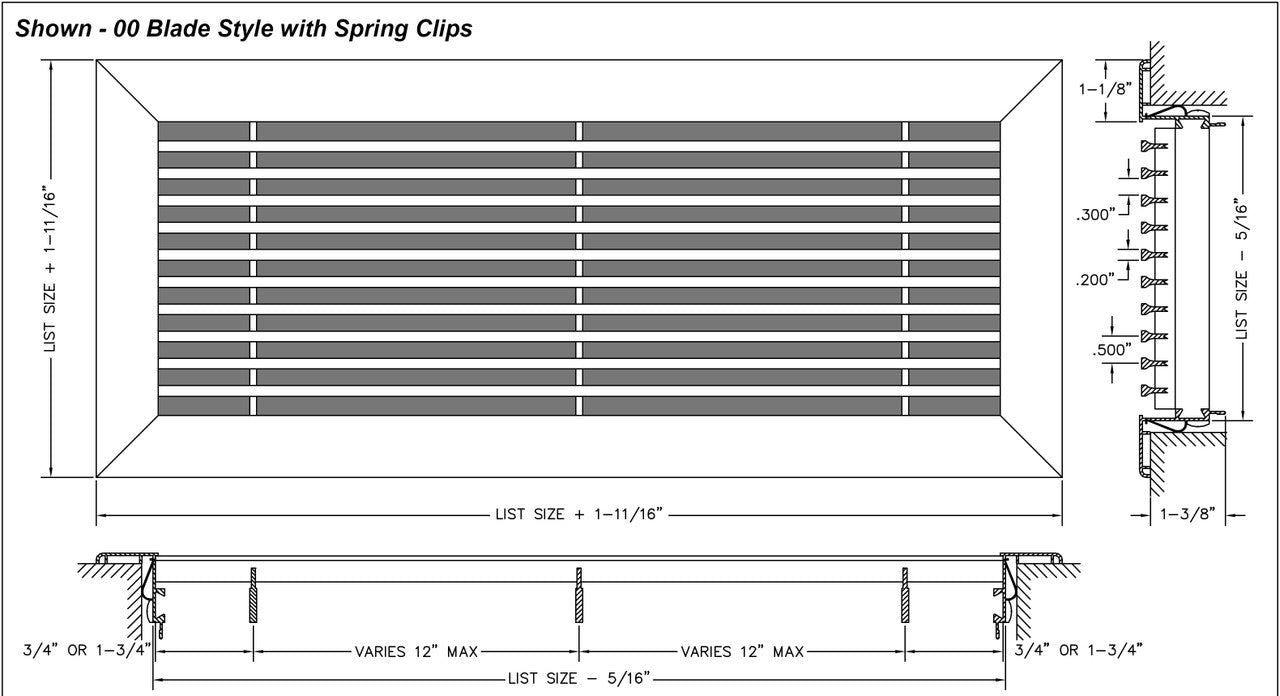

- Most Common Blade Type is -00-
-

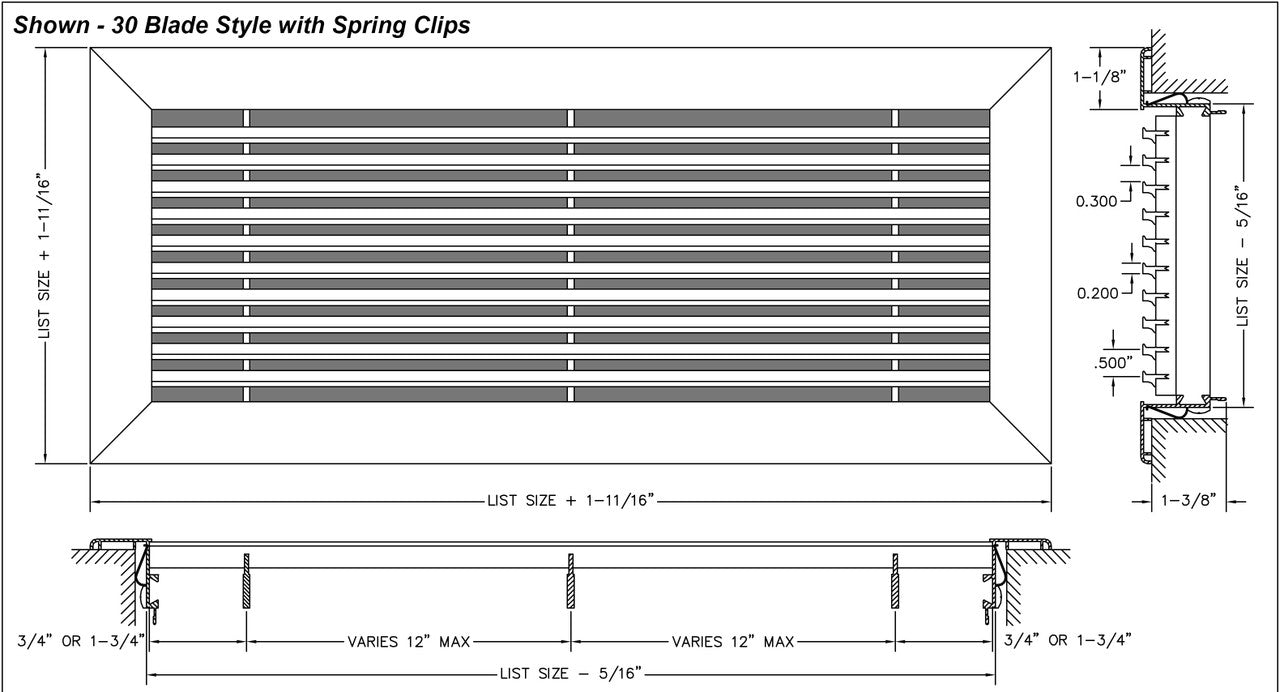

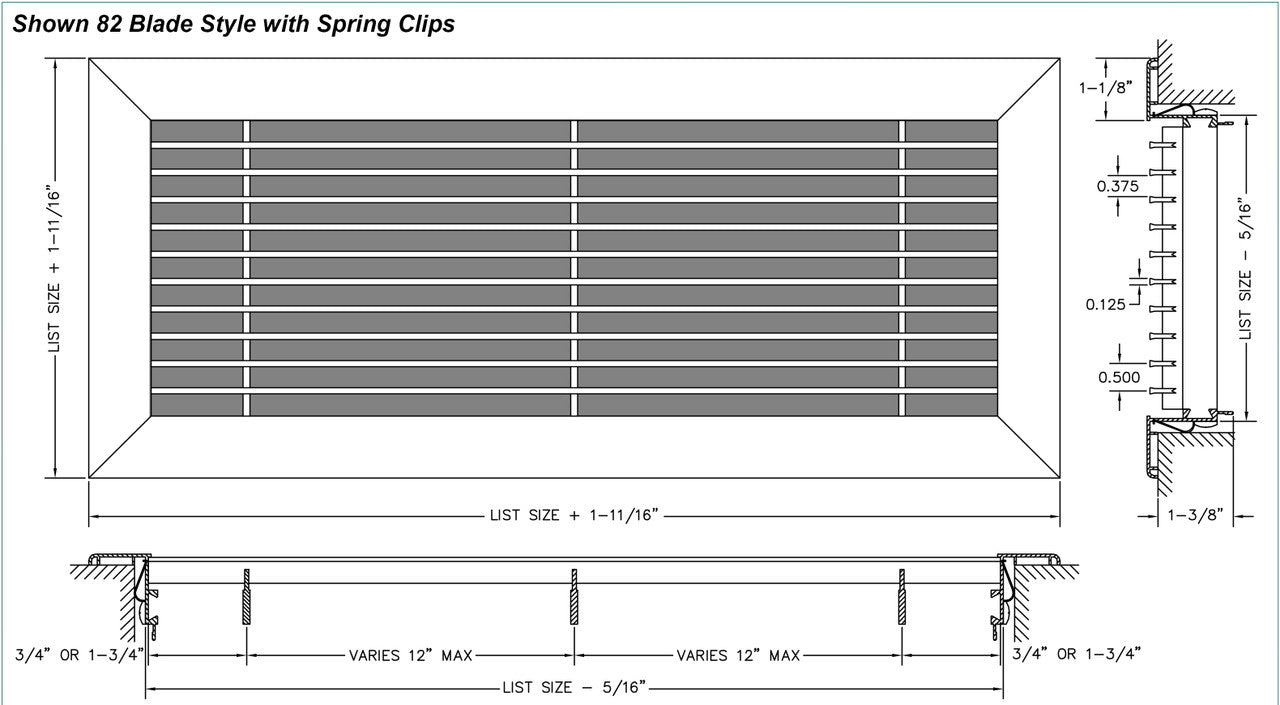

Detail A:
- 00, 15, 30, & 82 Blade Type
- Depth Required is 1-3/8"
-

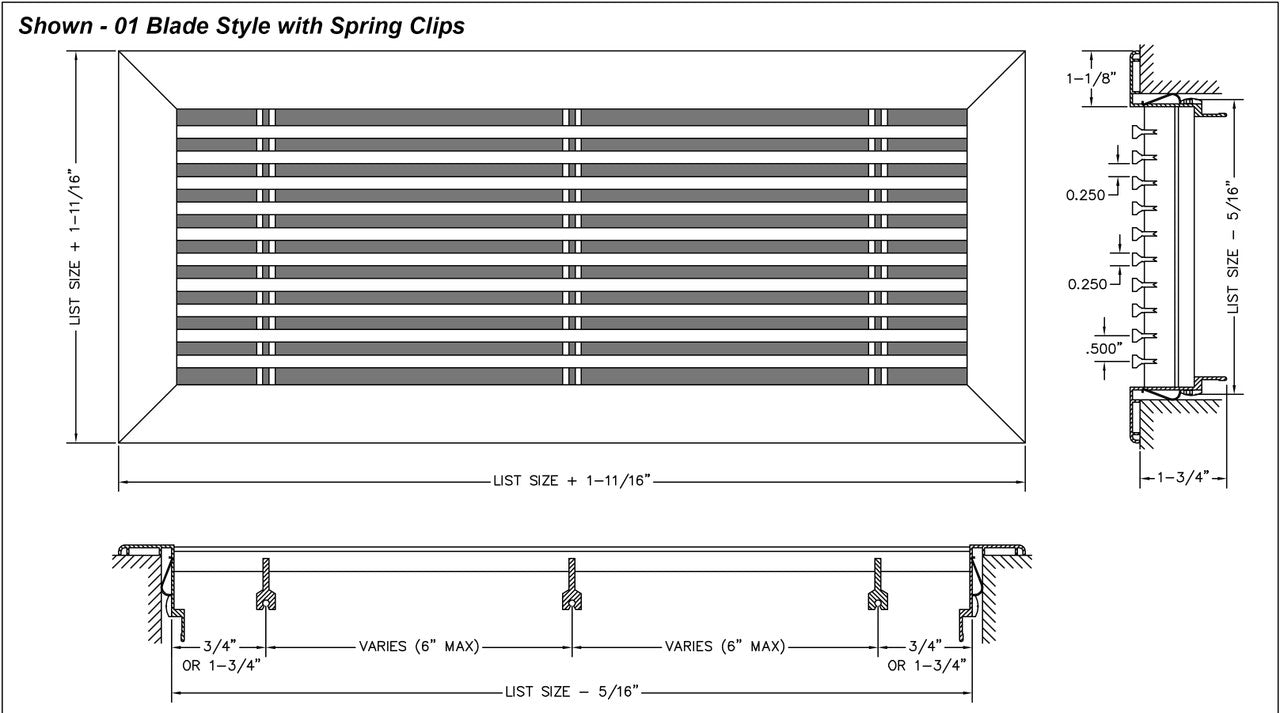

Detail B:
- 01, 84, removable core, or floor model is specified.
- Depth Required is 1-3/4"
- Maximum 84” length in one piece. When longer than 84”, multiple sections are joined together for continuous appearance.
- Aligning pins are provided.
