Register, Grille or Diffuser? A 10-Second Identification Guide
A grille is a cover with fixed openings and no moving parts. A register is a grille with a damper behind it, so you can open and close it. A diffuser has angled vanes that aim the air in a particular direction as it leaves the duct. One feature — the damper — separates the first two, and it’s the one that matters most when you’re buying a replacement.
If you’ve just unscrewed a vent cover and you’re holding it over your kitchen counter wondering what to type into a search bar, you’re in the right place. The three words get used interchangeably almost everywhere, including by people who install these for a living. But they describe three different things, and picking the wrong one means either paying for a feature you didn’t want or losing one you did.
Here’s how to tell what you have.
Register vs. grille vs. diffuser at a glance
| Type | Has a damper? | Supply or return? | Where you’ll usually find it | Aims the airflow? |
|---|---|---|---|---|
| Grille | No | Usually return | Wall, ceiling, floor | No |
| Register | Yes | Almost always supply | Floor, wall, toe kick | No |
| Diffuser | Sometimes | Supply | Ceiling, and in linear slot form | Yes |
That’s it in a nutshell. Read on for more details.
What a grille is
A grille is the simplest of the three: a decorative face with openings in it, covering a duct. No moving parts, nothing to adjust.
Most of the grilles in a house are covering returns — the ducts that pull air back to your furnace or air handler. That’s why returns are usually the biggest vents in the house and why there are usually only one or two of them per floor.
Some return grilles are built to hold a filter behind the face. Those are hinged and filter grille air returns, and they swing open so you can change the filter without taking the whole cover off the wall.
What a register is — and why the damper matters
A register is a grille with a damper added behind it.
The damper is a movable plate or set of blades, usually worked by a small lever, dial or thumbwheel somewhere on the face or just inside the opening. Slide it one way and the vent is open. Slide it the other and it closes.
Registers are almost always on the supply side — the ducts blowing conditioned air into the room. You’ll find them in floors, in walls, and tucked under cabinets as toe kick registers.
One thing worth knowing before you shop: at Vent Covers Unlimited, the damper is very often an option you can add. Plenty of our patterns are sold as a grille, with a damper available as an add-on — box dampers and EZ dampers for wood designs, recessed-control dampers for steel, integrated dampers on some wood lines. So if you love a pattern and need a damper, check the product page for your options.
The same is true in reverse: if you’re replacing a cover in a room where nobody ever touches the lever, you can skip the damper and spend the difference on the finish.
Browse floor registers, wall registers, or baseboard and gravity registers if you already know which you need.
What a diffuser is
A diffuser’s job is direction. Instead of letting air out through a flat face, it uses angled vanes to throw the air along a ceiling, across a room, or down a wall in a controlled pattern.

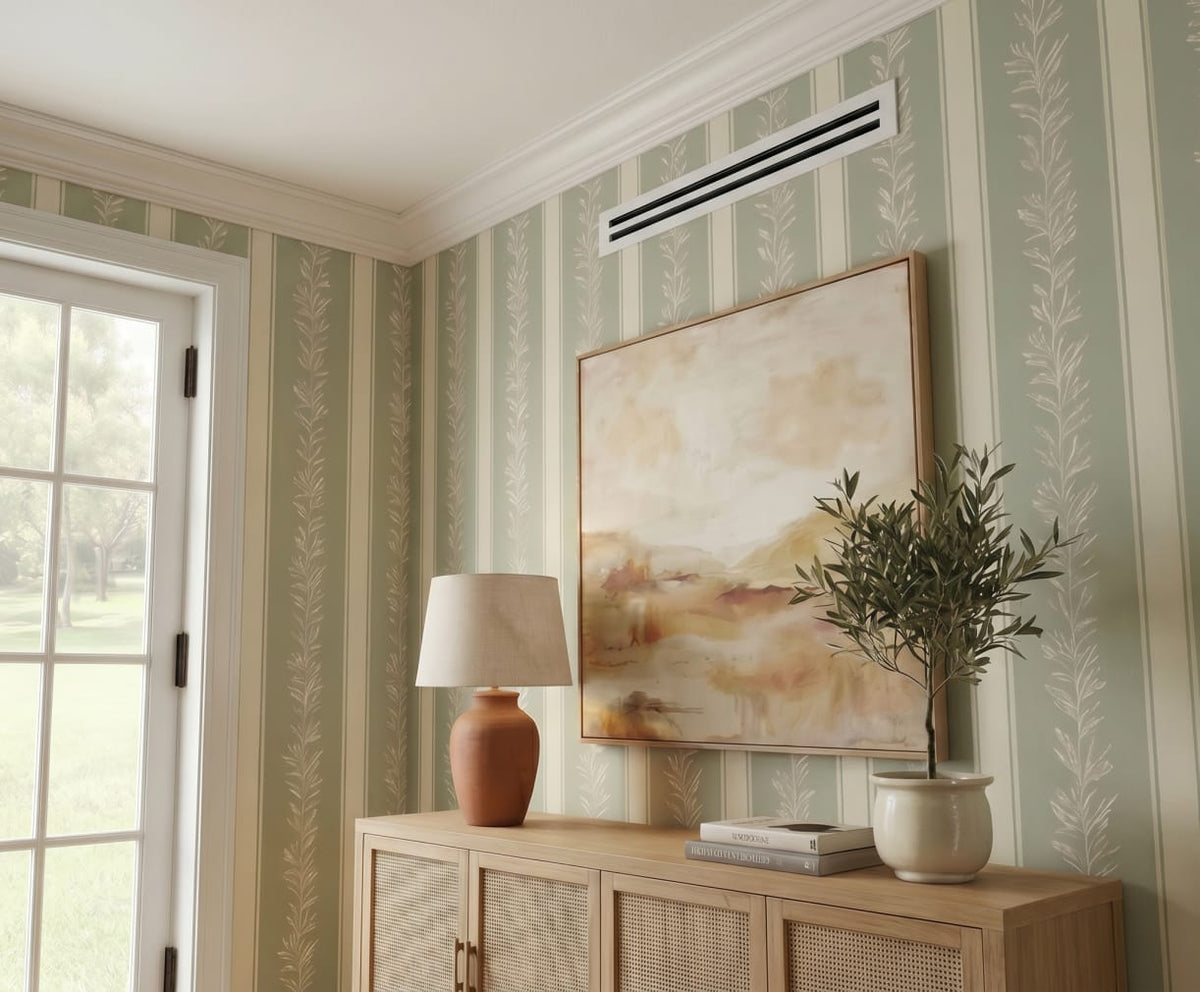

You’ll see them most often on ceilings, and in linear slot form — long, narrow, architectural. If that’s what you’re looking at, we’ve written about linear slot diffusers in detail, including how published airflow and noise data works on our Linus ProAir line.
In sum: if the vanes are aiming the air somewhere specific, it’s a diffuser. If they’re just holding the opening open, it’s a grille.
How to tell which one you have in 10 seconds
Take the cover off the wall or floor and run through these steps:
- Look for a lever, dial or thumbwheel. If there’s something you can slide or turn that opens and closes a plate behind the face, you have a register.
- No moving part, and air blows out of it? Supply grille.
- No moving part, and air gets pulled into it? Return grille.
- Angled vanes aiming the air sideways or along the ceiling? Diffuser.
Supply or return? The distinction that actually trips people up
It’s easy to get stuck here, because you can’t tell just by looking at your vent whether it’s a supply or return. To test it, hold a tissue up to the vent when it’s on; if it blows out, it’s a supply vent, if it pulls in, it’s a return.
Supply vents deliver conditioned air into the room. There are lots of them — usually at least one per room — and they’re the smaller ones.
Returns pull air back to the system. There are far fewer, they’re noticeably larger, and they’re often in a hallway, on a ceiling, or low on a wall. If you grew up hearing the phrase “cold air return,” that’s the same thing under an older name.
Why it matters for shopping: returns generally shouldn’t have dampers. A return’s job is to move as much air back to the system as it can, and closing one off works against the equipment. If you’re replacing a return cover, you want to shop for return air grilles.
Some return grilles have built-in filters that you can see when you open the cover. If that’s what you have, you’ll need to measure the size of the filter to figure out the correct size for your cover replacement.
Is it “grill” or “grille”?
“Grille” is the correct spelling for the vent cover. “Grill” is the thing you cook on. But the two get mixed up constantly, and a fair share of people shopping for vent covers type it the barbecue way.
So: if you searched “air return grill” and landed here, you’re in the right place.
Does it matter which one you buy?
Yes, but probably not for the reason you’d guess. Here’s what actually changes:
Put a grille where a register was, and you lose the ability to close that vent. If it’s in a guest room you shut down in winter, you’ll miss it. If it’s in the middle of the living room, you probably never touched it.
Put a register where a return grille was, and you’ve added a damper you shouldn’t use. It’ll fit and it’ll look fine. Just leave it open.
Size matters more than the name. All three are ordered by the duct opening, not by the size of the old cover — and measuring the old faceplate is the most common ordering mistake we see. Our measuring guide walks through it, including the cases that work differently: hinged filter returns are ordered by filter size, and flush mount wood registers have an overall size larger than the duct opening.
Finish and style are independent of all three. Whatever you’re replacing, you can get it in wood, metal, or resin.
What a new cover will and won’t do
A new cover will not fix a room that’s never warm enough. If a return is undersized for the space it serves, a better-looking grille over the same opening moves the same amount of air. That’s a duct sizing question, and it’s worth having an HVAC professional look at the system.
Closing registers is not a free way to save money, either. Shutting vents in unused rooms doesn’t simply redirect that air elsewhere — it raises pressure in the duct system, and how much your equipment can tolerate depends on the system. If you’re thinking about closing off a meaningful number of vents, check with your HVAC contractor and your equipment manufacturer’s documentation.
What a cover’s design does affect is free area — the amount of open space air can actually pass through. Dense, ornate patterns have less of it than open geometric ones, which is why pattern choice isn’t purely cosmetic. We’ve written more on how vent cover design affects airflow, and for the products where we publish tested performance figures, there’s detail on ASHRAE 70-2023 testing and NC ratings.
The bottom line
Look for the lever. If it’s there, you have a register. If it isn’t and air blows out, it’s a supply grille. If it isn’t and air pulls in, it’s a return grille. If the vanes are aiming the air, it’s a diffuser.
Then measure the duct opening — not the old cover — and shop by those numbers.
Browse all vent covers, or if you’re still not sure what you’re looking at, our US-based team can sort it out with you in a couple of minutes.
Frequently asked questions
Does a register have a damper?
Yes — that’s what makes it a register rather than a grille. The damper is a movable plate behind the face, worked by a lever or dial, that opens and closes the vent. On many of our covers the damper is an option you add to the pattern you want.
Do return grilles have dampers?
Usually not, and that’s intentional. A return pulls air back to your system, so restricting it works against the equipment. Most return covers, including hinged filter grilles, are open-faced by design.
Is a vent cover the same as a register?
“Vent cover” is the umbrella term for all of them. A register is one kind of vent cover — the kind with a damper. So every register is a vent cover, but not every vent cover is a register.
Can I put a register where a grille was?
Physically, yes, as long as the duct opening size matches. On a supply vent it adds the ability to close that vent. On a return, it’ll fit fine, just be sure to leave the damper open.
How do I know if a vent is supply or return?
Hold a tissue up to it with the system running. Blowing out means supply. Pulling the tissue against the face means return. Returns are also usually larger and there are fewer of them.
How do I measure for a replacement?
Measure the duct opening — the hole itself — not the cover you took off. Hinged filter returns are the exception and are ordered by filter size. Full details are in our measuring guide.
